CLGR® Malleable Iron Shell Block Triple Sheave with Hook

Name: CLGR® Malleable Iron Shell Block Triple Sheave with Hook
Brand: CLGR®

CLGR® Malleable Iron Shell Block Triple Sheave with Hook, also known as Malleable Triple Sheave Pulley, Steel Shell Blocks For Fiber Rope.

This malleable iron shell block double sheave is designed for manila rope service and features a galvanized finish with a hook attachment.

Available in 4″, 6″, 8″, 10″, and 12″ sizes, with respective working load limits of 2,200, 4,000, 7,000, 11,000, and 16,000 lbs.

Every block is clearly marked with size and WLL; certification is available upon request.

To Get A Quote >

CLGR® Malleable Iron Shell Block Triple Sheave with Hook

CLGR® Malleable Iron Shell Block Triple Sheave with Hook China Supplier

Overview of CLGR® Malleable Iron Shell Block Triple Sheave with Hook

Brand	CLGR®
Type	Malleable Iron Shell Block Triple Sheave with Hook
Material	Malleable Iron
Surface Finished	Hot Dipped Galvanized
Size	4″, 6″, 8″, 10″, 12″
Origin	China

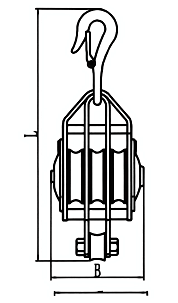

Specifications of CLGR® Malleable Iron Shell Block Triple Sheave with Hook

specifications-of-clgr®-malleable-iron-shell-block-triple-sheave-with-hook-china-supplier

No.	Size	W.L.L	Dia of Rope	L	A	B	Net Weight
No.	in	lbs	in	mm	mm	mm	kg
CRMBTH-4	4″	2200	1/2″	327	105	74	2.2
CRMBTH-6	6″	4000	3/4″	440	127	109	5.6
CRMBTH-8	8″	7000	1″	552	140	145	13
CRMBTH-10	10″	11000	1-1/4″	638	196	182	21
CRMBTH-12	12″	16000	1-1/4″	712	196	236	–
