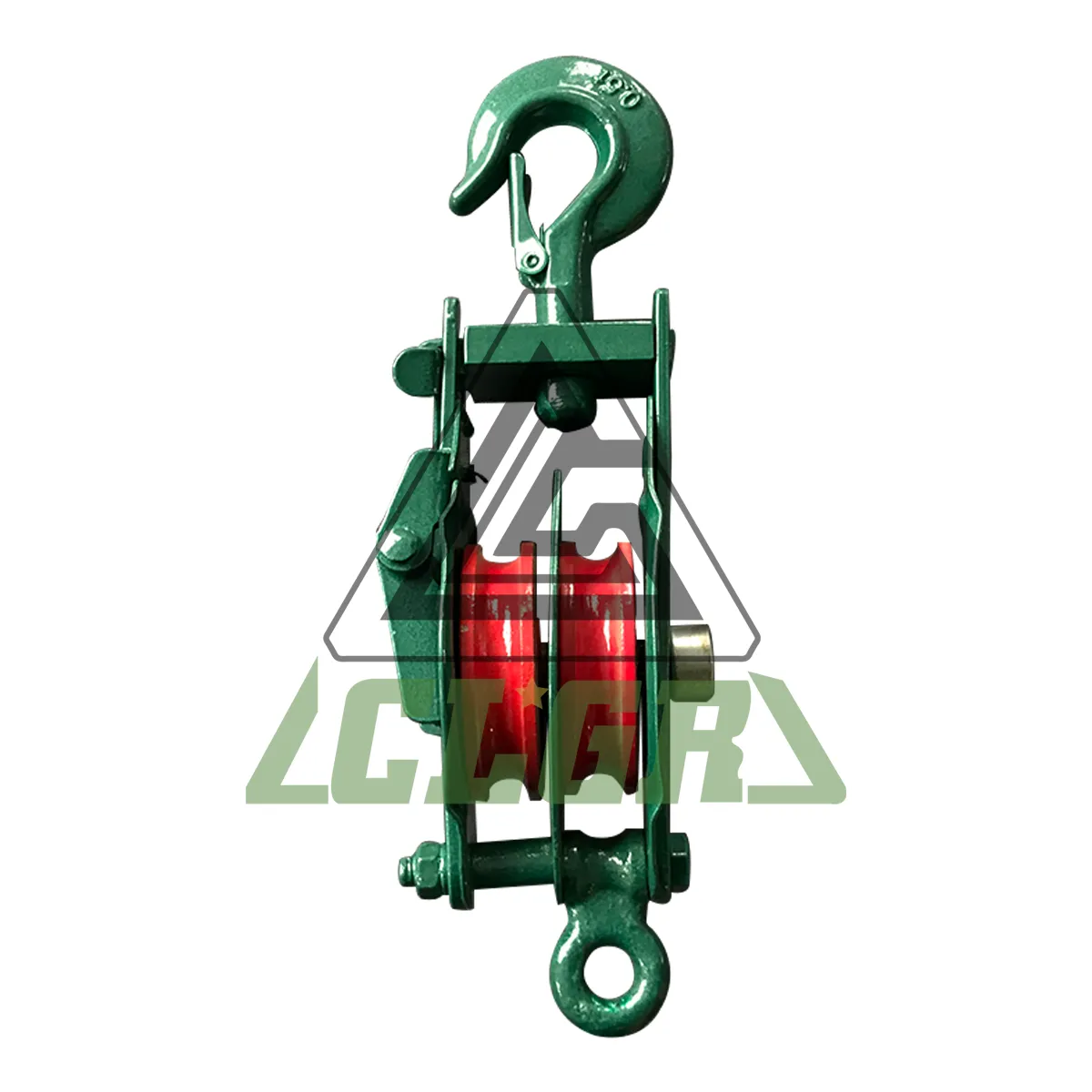

CLGR® Open Type Pulley Block Double Sheave With Hook

Name: CLGR® Open Type Pulley Block Double Sheave With Hook
Brand: CLGR®

CLGR® Open Type Pulley Block Double Sheave With Hook, also known as Open Pulley With Hook, and Double Sheave Snatch Block.

This open type snatch block features two sheaves mounted side by side, allowing the rope or wire rope to be reeved multiple times for increased mechanical advantage.

The open type construction enables quick and easy rope insertion without threading, even when the block is suspended. Equipped with a sturdy hook for secure attachment, this block is widely used in construction, industrial lifting, towing, and marine rigging where higher load capacity and directional flexibility are required.

The galvanized finish provides reliable corrosion resistance and wear protection for long-lasting performance in tough environments.

Available in various sizes and working load limits to suit different application needs.

To Get A Quote >

CLGR® Open Type Pulley Block Double Sheave With Hook

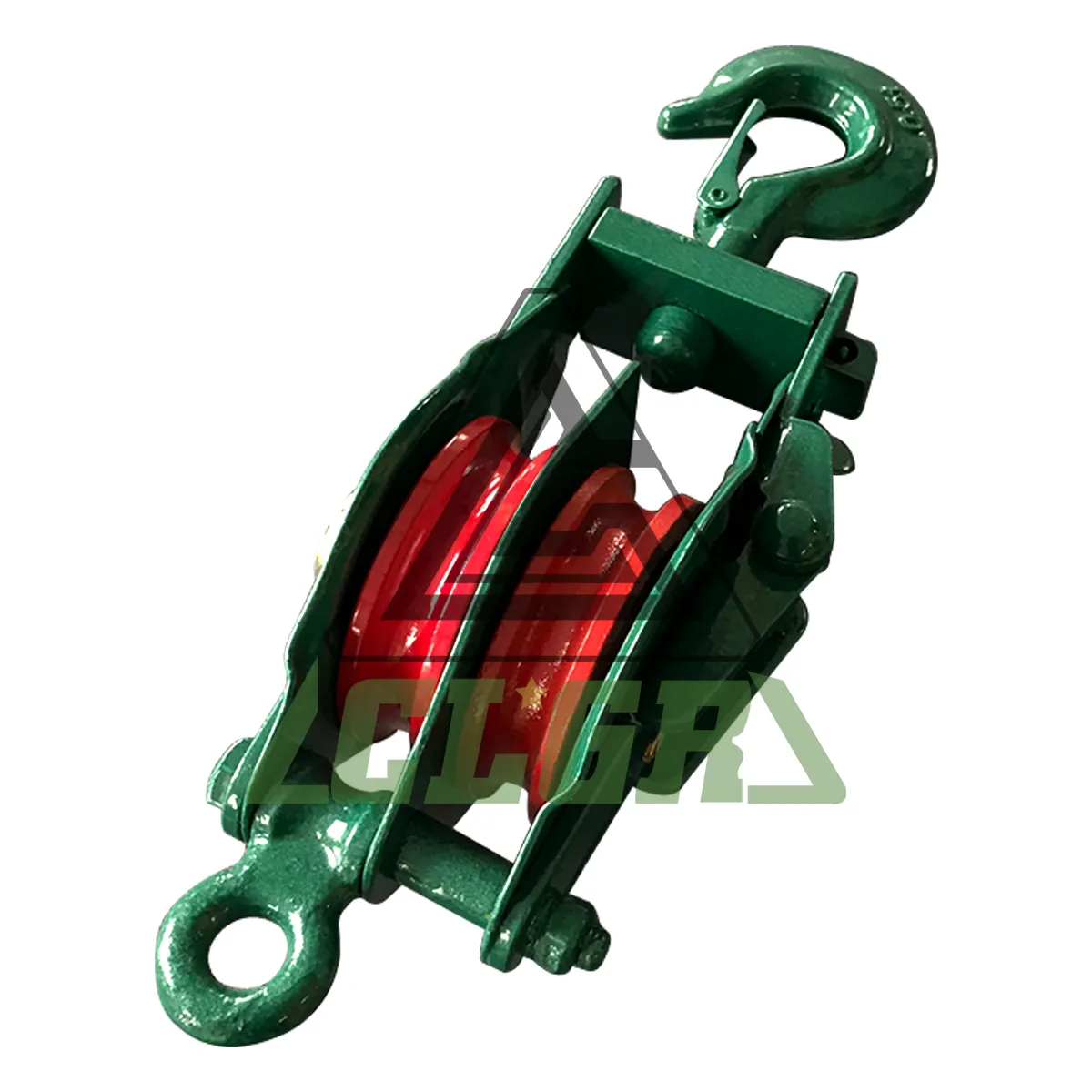

CLGR® Open Type Pulley Block Double Sheave With Hook China Supplier

Overview of CLGR® Open Type Pulley Block Double Sheave With Hook

Brand	China CLGR®
Type	Double Sheave Snatch Block 7112
Material	Carbon Steel
Surface	Color Painted or Galvanized
Size	2″, 3″, 4″, 5″, 6″, 7″, 8″, 10″, 12″
Application	Lifting Equipment

Specifications of CLGR® Open Type Pulley Block Double Sheave With Hook

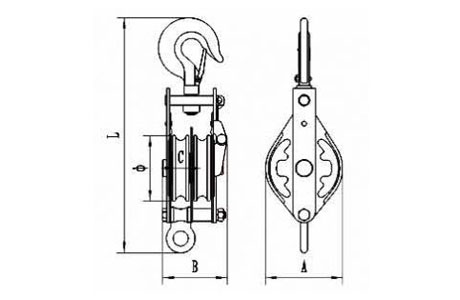

drawing-of-clgr®-open-type-pulley-block-double-sheave-with-hook-china-supplier

Part No.	Size	SWL/Ton	Diam	∅	L	A	B	C	Weight(KG)
CR7112H-02	2″	0.25	6mm	50	58	58	67.5	11	1.2
CR7112H-03	3″	0.5	8mm	71	88	88	88	10	2.1
CR7112H-04	4″	1	10mm	96	112	112	100	15	3.7
CR7112H-05	5″	1.5	13mm	121	140	140	114	17	6
CR7112H-06	6″	2	16mm	148	164	164	131	20	8.8
CR7112H-07	7″	3	19mm	173	196	196	146	22	13.5
CR7112H-08	8″	4	22mm	200	220	220	163	26	18
CR7112H-10	10″	5	25mm	250	272	272	163	28	26
CR7112H-12	12″	6	28mm	300	320	320	163	28	33

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
