CLGR® Open Type Pulley Block Single Sheave with Eye 7211

Name: CLGR® Open Type Pulley Block Single Sheave with Eye 7211
Brand: CLGR®

CLGR® Open Type Pulley Block Single Sheave With Eye 7211, also known as Wire Rope Pulley, Single Pulley Block, Single Steel Pulley.

The single pulley block features 1 sheaves and is available with hook, eye, or shackle connections. Both snatch (open) and closed types are offered, with WLL values varying slightly depending on the configuration.

Designed to change rope or cable direction, the block provides a smooth running surface.

To Get A Quote >

Open Type Pulley Block Single Sheave with Eye 7211

Open Type Pulley Block Single Sheave with Eye 7211 China Supplier

CLGR® Open Type Pulley Block Single Sheave with Eye China Supplier

CLGR® Open Type Pulley Block Single Sheave with Eye

CLGR® Open Type Pulley Block Single Sheave with Eye China Factory

CLGR® Open Type Pulley Block Single Sheave with Eye China Manufacturer

Open Type Pulley Block Single Sheave with Eye

 

Overview of CLGR® Open Type Pulley Block Single Sheave with Eye 7211

Brand	China CLGR®
Type	Single Sheave Pulley Block 7211
Material	Carbon Steel
Surface	Color Painted
Size	2″, 3″, 4″, 5″, 6″, 7″, 8″, 10″, 12″
Application	Lifting Equipment

Specifications of CLGR® Open Type Pulley Block Single Sheave with Eye 7211

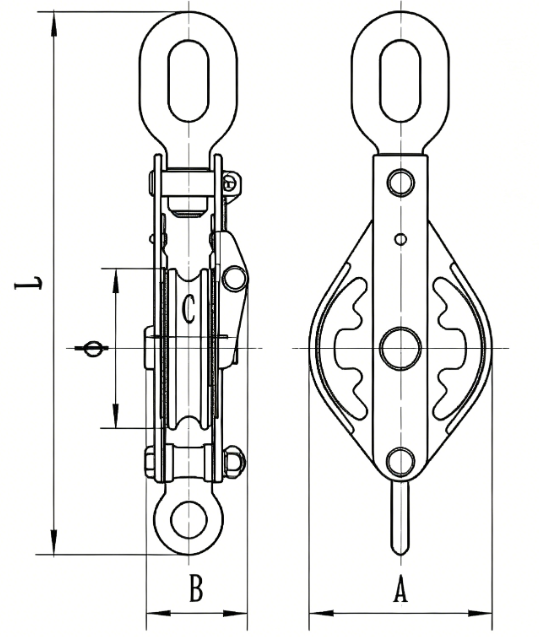

Part No.	Size	SWL/LBS	Diam	∅	L	A	B	C	Weight(KG)
CR7211E-2	2″	0.25	6mm	50	186	58	48.5	11	0.65
CR7211E-3	3″	0.5	8mm	71	287.5	88	63	10	1.4
CR7211E-4	4″	1	10mm	96	327.5	112	70	15	2.65
CR7211E-5	5″	1.5	13mm	121	381	140	81	17	4.2
CR7211E-6	6″	2	16mm	148	445	164	91	20	6.2
CR7211E-7	7″	3	19mm	173	511	196	100	22	9.3
CR7211E-8	8″	4	22mm	200	553	220	115	26	11.5
CR7211E-10	10″	5	25mm	250	632.5	272	112	28	16.5
CR7211E-12	12″	6	28mm	300	705	320	115	28	25
