CLGR® JIS Ship Wooden Block With Link Double Sheave

Name: CLGR® JIS Ship Wooden Block With Link Double Sheave
Brand: CLGR®

CLGR® JIS Ship Wooden Block With Link Double Sheave, also known as JIS Wood Pulley With Link.

Crafted from high quality wood and fitted with a hot-dip galvanized steel link, this wooden block minimizes line chafing while providing a smooth 180° rope redirection.

This JIS Wood Pulley With Link is a critical component for traditional and modern sailing vessels, engineered specifically for lifting sails, adjusting rigging, and mast control.

It is designed to work in conjunction with ropes, providing mechanical advantage and changing the direction of force. This allows crew members to handle heavy loads with less effort.

Available in sizes from 180inch to 240inch to suit various rope diameters.

To Get A Quote >

CLGR® JIS Ship Wooden Block With Link Double Sheave

Overview of JIS Ship Wooden Block With Link Double Sheave

Brand	China CLGR®
Material	Carbon steel/Wood
Craft	Machining/Stamping/Forging/Hot Dipped Galvanized
Size	180inch, 200inch, 220inch, 240inch
Sheave	Double Sheave

Specification of JIS Ship Wooden Block With Link Double Sheave

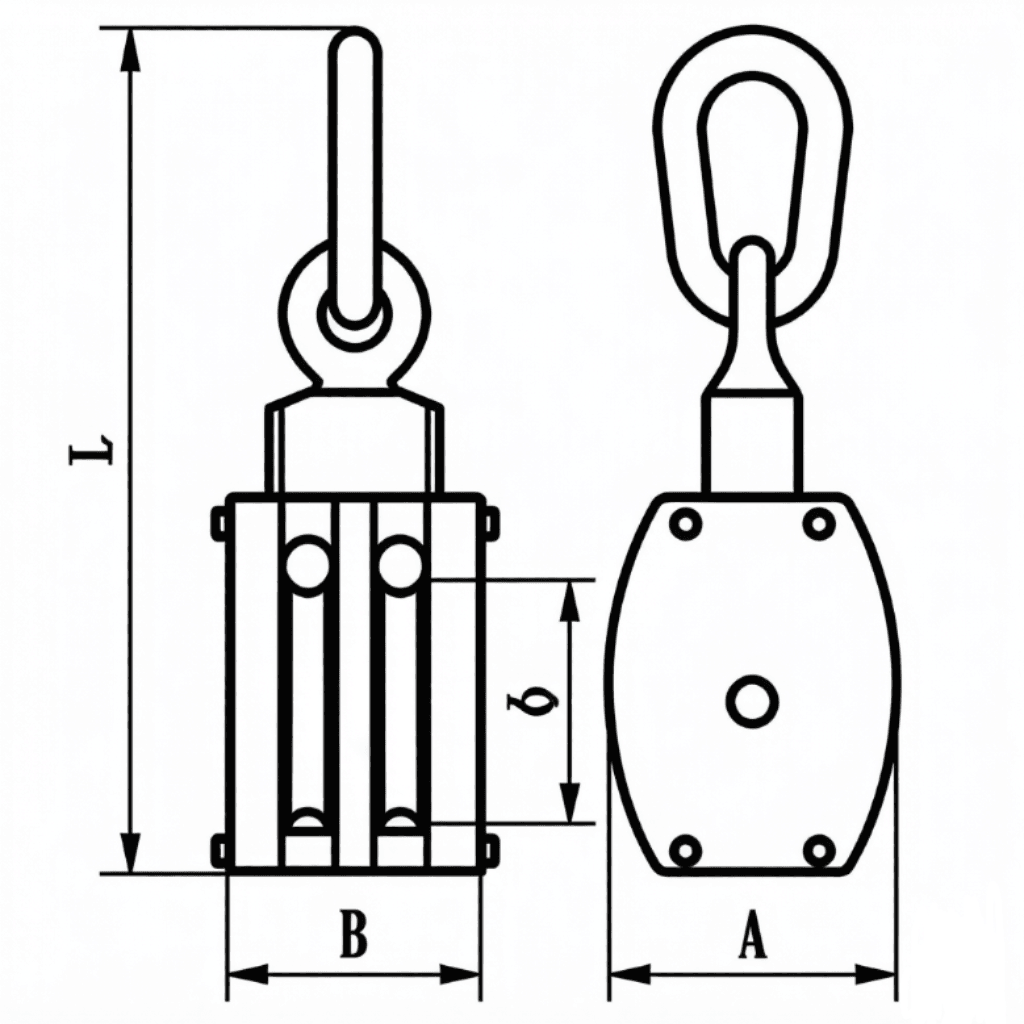

Drawing of JIS Ship Wooden Block With Link Double Sheave

Part No.	Size	SWL/TON	Diam	∅	L	A	B	Weight(KG)
CRWPED20	180mm	1.1	18mm	117	360	144	128	6.3
CRWPED21	200mm	1.3	20mm	130	398	160	140	8.96
CRWPED22	220mm	1.6	22mm	143	423	176	154	10.55
CRWPED23	240mm	1.8	24mm	156	457	192	164	14.18
