CLGR® Heavy Duty Snatch Block Swivel Shackle European Type

Name: CLGR® Heavy Duty Snatch Block Swivel Shackle European Type
Brand: CLGR®

CLGR® Heavy Duty Snatch Block Swivel Shackle European Type, also known as Snatch Block w/ Shackle, Snatch Block with Shackle Fittings, Plate Sided Snatch Block with Shackle.

The Snatch Block features an opening design that allows for easy rope insertion without reeving, even while the block is suspended. The opening bolt is retained to prevent any lost components.

This Snatch Block is built with forged steel swivel tees, yokes, and shackles for reliable strength. It can be furnished with bronze bushings or roller bearings, and the center pin includes a pressure lube fitting. All sizes come with sheave grooves suited for a range of wire rope diameters.

The Snatch Block meets or exceeds all requirements of ASME B30.26, including ductility, design factor, proof load, and temperature. It also meets critical performance needs such as fatigue life and material traceability.

This Snatch Block is ideal for construction, industrial, oil & gas, utilities, transportation, and renewables.

To Get A Quote >

Overview of Heavy Duty Snatch Block Swivel Shackle European Type

Brand	CLGR®
Technical Notes	European Type
Material	Superior Alloy steel
Processing	Drop Forged
Finish	Powder Coated
Size	3”x2T, 4-1/2”x4T, 6”x4T, 6”x8T, 8”x8T, 8″x15T, 10”x10T, 10″x12T, 12″x12T, 12″x15T
Safety Factor	5:1

Specifications of Heavy Duty Snatch Block Swivel Shackle European Type

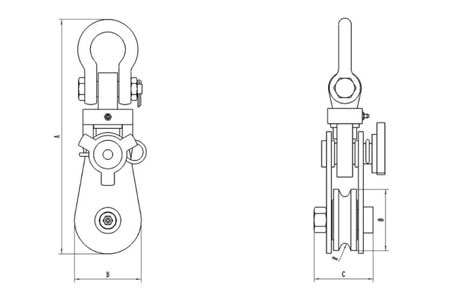

drawing-of-heavy-duty-snatch-block-swivel-shackle-european-type-china-supplier

Part No.	TYPE	S. W.L (T)	DIAM OF ROPE (MM)	A	B	C	R	Φ	WEIGHT (KG)
CRHDSBS3L2	3”x1	2	7-9	286	82	70	5.5	75	3.9
CRHDSBS4.5L4	4-1/2”x1	4	10-12	345	120	70	6	115	6.2
CRHDSBS6L4	6”x1	4	16-18	399	160	70	10	150	8.3
CRHDSBS6L8	6”x1	8	20-22	475	160	93	12	150	14.1
CRHDSBS8L8	8″x1	8	20-22	528	210	93	12	200	18.7
CRHDSBS8L15	8″x1	15	22-24	663	210	102	15	200	33
CRHDSBS10L10	10″x1	10	24-26	679	260	115	15	250	34.7
CRHDSBS10L12	10″x1	12	24-26	679	260	115	15	250	34.7
CRHDSBS12L12	12″x1	12	24-26	767	310	133	15	300	54
CRHDSBS12L15	12″x1	15	26-28	788	310	133	15	300	55
