CLGR® Closed Type Pulley Block Single Sheave With Eye 7511

Name: CLGR® Closed Type Pulley Block Single Sheave With Eye 7511
Brand: CLGR®

CLGR® Closed Type Pulley Block Single Sheave With Eye 7511, also known as Lifting Pulley Blocks, and Single Pulley Block.

The pulley block is available with hook, eye, or shackle connections. Both snatch (open) and closed types are offered, with WLL values varying slightly depending on the configuration.

Finish options include painted or hot dip galvanized for corrosion protection.

Designed to change rope or cable direction, the block provides a smooth running surface.

Available in various sizes: 2'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12''.

Working load limits: 0.25t, 0.5t, 1t, 1.5t, 2t, 3t, 4t, 5t, 6t.

To Get A Quote >

 

Overview of CLGR® Closed Type Pulley Block Single Sheave With Eye 7511

Brand	China CLGR®
Type	Single Sheave Block 7511
Material	Steel
Surface	Color Painted or Galvanized
Size	2″, 3″, 4″, 5″, 6″, 7″, 8″, 10″, 12″
Application	Lifting Equipment

Specifications of CLGR® Closed Type Pulley Block Single Sheave With Eye 7511

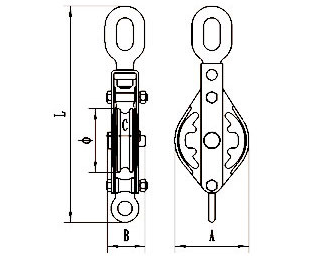

drawing-of-clgr®-closed-type-pulley-block-single-sheave-with-eye-7511-china-supplier

Part No.	Size	SWL/Ton	Diam	∅	L	A	B	C	Weight(KG)
CR7511E-2	2″	0.25	6mm	50	210	58	42	11	0.65
CR7511E–3	3″	0.5	8mm	71	293	88	57	10	1.4
CR7511E–4	4″	1	10mm	96	358	112	63	15	2.65
CR7511E–5	5″	1.5	13mm	121	410	140	68	17	4.2
CR7511E–6	6″	2	16mm	148	485	164	76	20	6.2
CR7511E–7	7″	3	19mm	173	543	196	84	22	9.3
CR7511E–8	8″	4	22mm	200	583	220	89	26	11.5
CR7511E–10	10″	5	25mm	250	700	272	89	28	16.5
CR7511E–12	12″	6	28mm	300	740	320	95	28	25

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
