CLGR® JIS Ship Wooden Block Single With Hook

Name: CLGR® JIS Ship Wooden Block Single With Hook
Brand: CLGR®

CLGR® JIS Ship Wooden Block Single With Hook, also known as Wooden Pulley Hook.

Features a wooden shell with a forged hook fitting. Steel parts are hot-dip galvanized for corrosion resistance.

Available in sizes from 140mm to 240mm, with SWL ranging from 0.18 to 0.5 tons. Ideal for marine and shipboard rigging applications.

To Get A Quote >

Overview of CLGR® JIS Ship Wooden Block Single With Hook

Brand	China CLGR®
Material	Carbon steel/Wood
Craft	Machining/Stamping/Forging/Hot Dipped Galvanized
Size	140mm,180mm, 200mm, 220mm, 240mm
Sheave	Single Sheave

Specification of CLGR® JIS Ship Wooden Block Single With Hook

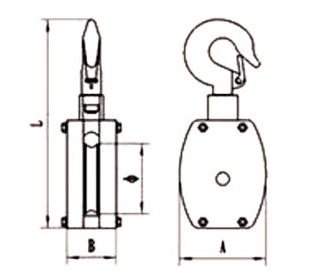

Drawing of CLGR® JIS Ship Wooden Block Single With Hook

Part No.	Size	SWL/TON	Diam	∅	L	A	B	Weight(KG)
CRWBSH1	140mm	0.18	14mm	91	277	112	69	2.32
CRWBSH2	180mm	0.29	18mm	117	348	144	82	3.62
CRWBSH3	200mm	0.35	20mm	130	373	160	89	4.73
CRWBSH4	220mm	0.42	22mm	143	395	176	97	6.48
CRWBSH5	240mm	0.5	24mm	156	420	192	103	8.44
