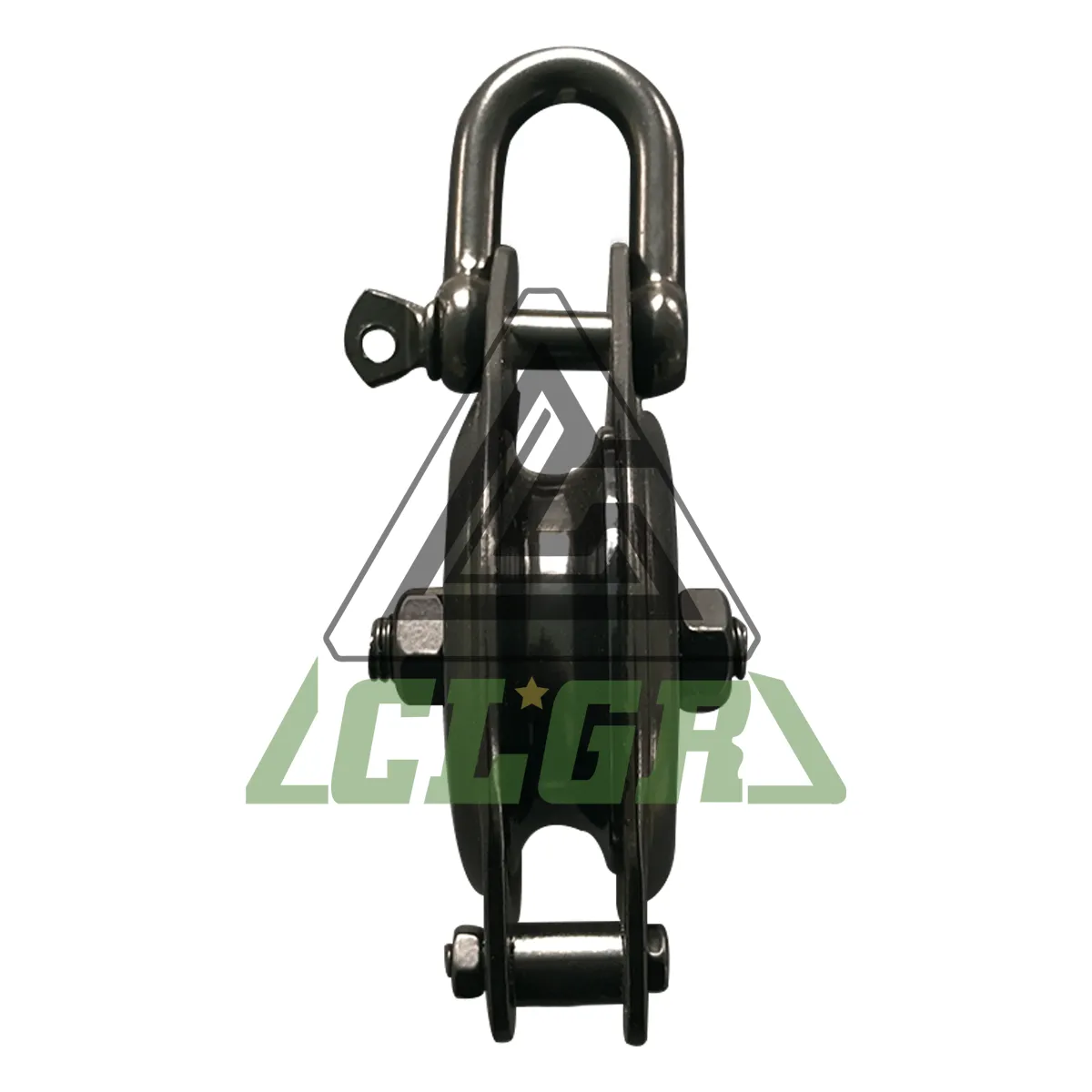

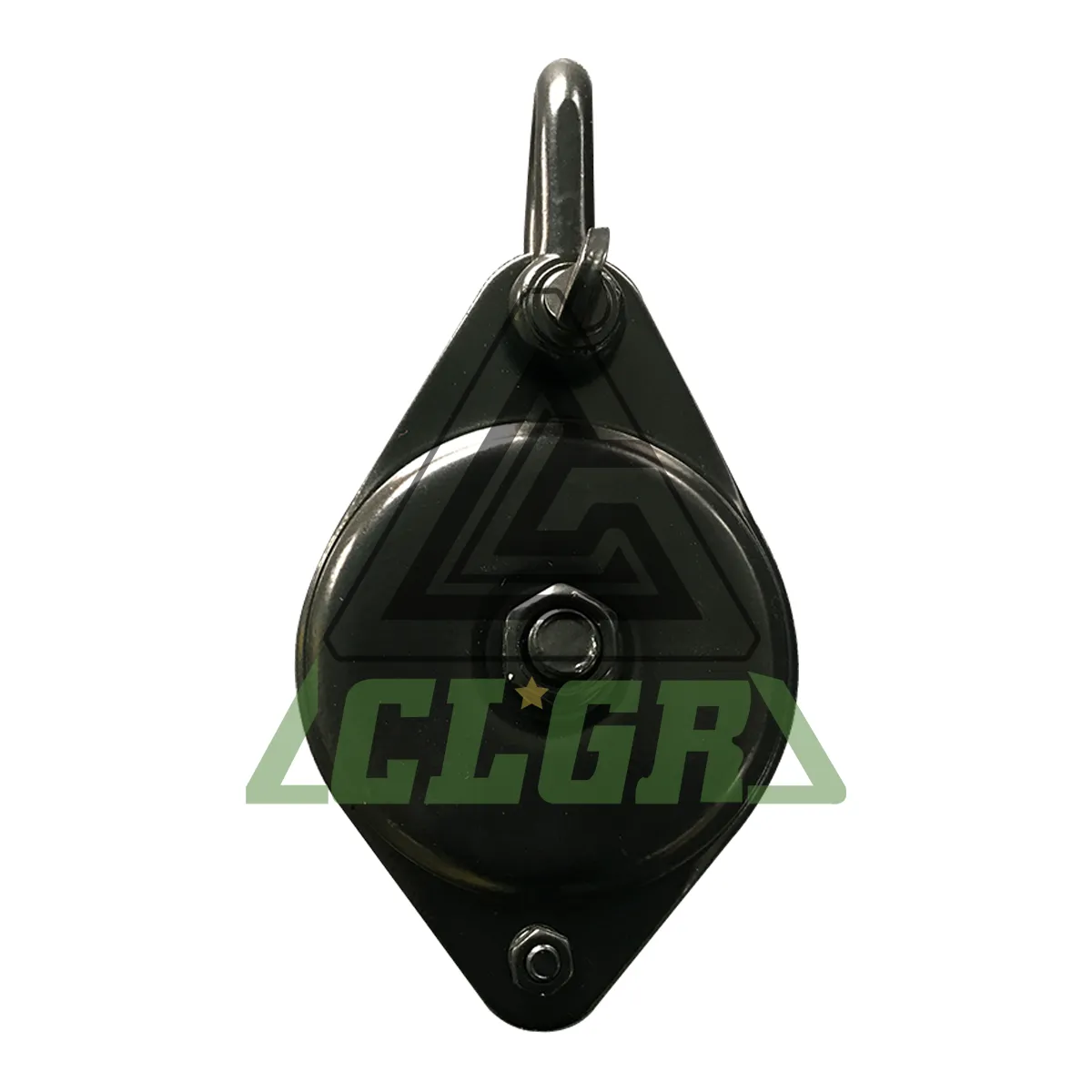

CLGR® Rigging Block With D Shackle

Name: CLGR® Rigging Block With D Shackle
Brand: CLGR®

CLGR® Rigging Block With D Shackle, also known as Single Wheel Rigging Pulley, and Snatch block.

These Rigging Blocks are designed for wire ropes, providing strength and reliability for demanding lifting and securing tasks.

Made from galvanized steel sheet, these blocks are corrosion-resistant, ensuring long-lasting performance in harsh conditions. These rigging blocks are perfect for marine, construction, and industrial applications, where heavy loads are handled regularly.

We have sizes 2'', 3'', 4'', 5'', 6'' for your reference. This kind of block is usually used in Stage.

To Get A Quote >

Overview of CLGR® Rigging Block With D Shackle

Brand	CLGR®
Material	Super Carbon Steel
Craft	Forged
Surface Finished	Hot Dipped Galvanized
Sheave	Single Sheave
Size	2″, 3″, 4″, 5″, 6″

Specifications of CLGR® Rigging Block With D Shackle

Drawing of CLGR® Rigging Block With D Shackle

No.	Size	W.L.L	Dia of Rope	L	B	A	Net Weight
No.	in	ton	mm	mm	mm	mm	kg
CRSM050	2	0.25	8	130	44	60	0.4
CRSM100	3	0.75	12	178	60	88	1
CRSM200	4	1	14	238.5	64	122	1.72
CRSM300	5	1.5	16	284	80	140	3.2
CRSM400	6	2	19	320	105	175	5.5

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
