CLGR® Malleable Iron Shell Block Single Sheave with Hook

Name: CLGR® Malleable Iron Shell Block Single Sheave with Hook
Brand: CLGR®

CLGR® Malleable Iron Shell Block Single Sheave with Hook, also known as Malleable Single Sheave Pulley, Steel Shell Blocks For Fiber Rope.

Made for manila rope, malleable iron shell block single sheave comes with a hook and a galvanized body.

It is marked with size, and W.L.L. Certification is available upon request.

To Get A Quote >

CLGR® Malleable Iron Shell Block Single Sheave with Hook

CLGR® Malleable Iron Shell Block Single Sheave with Hook China Supplier

Overview of Galvanised Malleable Iron Pulley Block Single Sheave with Hook

Brand	CLGR®
Type	Galvanised Malleable Iron Pulley Block Single Sheave with Hook
Material	Malleable Iron
Surface Finished	Hot dipped galvanized finish
Size	0.2 T, 0.4T, 0.5T, 1 T, 1.1T, 1.2T, 1.6T,1.8 T
Origin	China

Specifications of Galvanised Malleable Iron Pulley Block Single Sheave with Hook

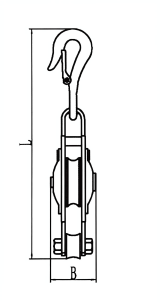

drawing-of-malleable-iron-shell-block-single-sheave-with-hook-china-clgr-manufacturer

No.	Size	W.L.L	Dia of Rope	L	B	A	Net Weight
No.	in	lbs	in	mm	mm	mm	kg
CRMBMH-4	4″	1100	1/2	284	55	74	1.2
CRMBMH-6	6″	2000	3/4	375	65	109	3.1
CRMBMH-8	8″	3300	1	532	79	145	6
CRMBMH-10	10″	6600	1-1/4	630	100	182	11
CRMBMH-12	12″	8800	1-1/4	702	107	236	–

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
