CLGR® JIS Type Ship Wooden Block Pulley Triple with Hook

Name: CLGR® JIS Type Ship Wooden Block Pulley Triple with Hook
Brand: CLGR®

CLGR® JIS Type Ship Wooden Block Pulley Triple with Hook features a triple sheave configuration with a hook for lifting.

Surface treated with galvanization and painting for marine environments.

Available in sizes from 140mm to 240mm to suit various rope diameters.

To Get A Quote >

Overview of CLGR® JIS Type Ship Wooden Block Pulley Triple with Hook

Brand	China CLGR®
Material	Carbon steel/Wood
Craft	Machining/Stamping/Forging/Hot Dipped Galvanized
Size	140mm,180mm, 200mm, 220mm, 240mm
Sheave	Triple Sheave

Specification of CLGR® JIS Type Ship Wooden Block Pulley Triple with Hook

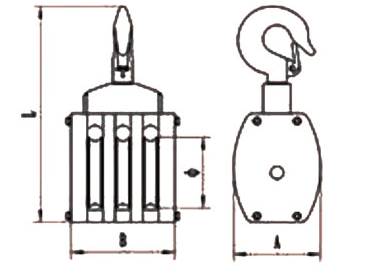

Drawing of CLGR® JIS Type Ship Wooden Block Pulley Triple with Hook

Part No.	Size	SWL/TON	Diam	∅	L	A	B	Weight(KG)
CRWBHT1	200mm	1.8	20mm	130	418	160	191	12.25
CRWBHT2	220mm	2.1	22mm	143	455	176	211	16.24
CRWBHT3	240mm	2.5	24mm	156	482	192	225	20.65
