CLGR® Grade 80 Eye Foundry Hook with Flat YB Type

Name: CLGR® Grade 80 Eye Foundry Hook with Flat YB Type
Brand: CLGR®

CLGR® Grade 80 Eye Foundry Hook with Flat YB Type, also known as Lifting Eye Foundry Hook with Flat Grade 80, G80 Large Open Eye Foundry Hook and Eye Foundry Lifting Hooks Grade 80.

Forged from quenched and tempered alloy steel, finished by power coating for corrosion-resistant, the hook meets the rigorous performance standards of EN1677, ensuring strength and reliability in heavy‑duty lifting applications.

Designed for demanding foundry and fabrication environments, the Eye Foundry Hook features a large, easy‑connect opening that simplifies the lifting of molds, castings, and pipes, saving valuable time on the job. Its large eye is compatible with both chain slings and steel wire rope slings, offering versatile rigging options.

To Get A Quote >

12 CLGR® Grade 80 Eye Foundry Hook with Flat

clgr grade 80 eye foundry hook with flat china manufacturer

clgr grade 80 eye foundry hook with flat china supplier

clgr grade 80 eye foundry hook with flat

clgr grade 80 eye foundry hook with flat china factory

 

Overview of CLGR® Grade 80 Eye Foundry Hook with Flat YB Type

Brand	CLGR®
Standard	EN1677, ASTM A952 / A952M & ASME B30.10
Material	Super Alloy Steel
Safety Factor	4: 1
Processing	Drop Forged / Quenched and Tempered
Finish	Powder Coated
Size	1.12T, 2T, 3.2T, 5.3T, 8T, 12.5T, 15T
Tips	Color Code: Customized according to customers' requirements
Note	Never exceed working load limit Fatigue tested > 20,000 times.

Specifications of Grade 80 Eye Foundry Hook with Flat YB Type

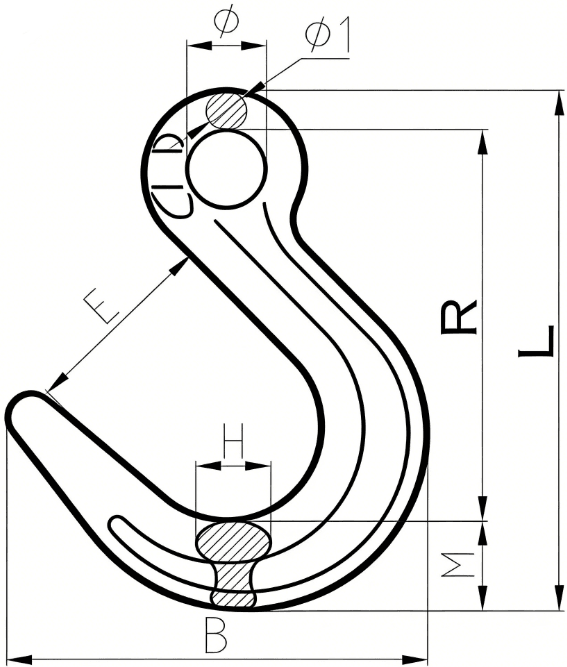

drawing-clgr-grade-80-eye-foundry-hook-with-flat-china-supplier

Part No.	Weight (kg)	WLL (t)	B. L. (t)	Ø±1 (mm)	L±1 (mm)	B±1 (mm)	R±1 (mm)	E±1 (mm)	Ø1±1 (mm)	H±2 (mm)	M (mm)
8CREFHF1.12T	0.382	1.12	4.48	20.5	133	100	102.7	49	10	17	19
8CREFHF2T	0.69	2	8	24	158.5	130	120.5	62	12	19	26
8CREFHF3.2T	1.3	3.2	12.8	31.5	199	152.5	153	73	15	25	31
8CREFHF5.3T	2.32	5.3	21.2	44	241.5	186	184	90	19	33	39
8CREFHF8T	4	8	32	49	279	218	216	105	22	37	42
8CREFHF12.5T	7.3	12.5	50	60	330	252	247	114	26	46	57
8CREFHF15T	11.4	15	60	64	376	274	275	123	31	60	70
