CLGR® Grade 80 Barrel Hook

Name: CLGR® Grade 80 Barrel Hook
Brand: CLGR®

CLGR® Grade 80 Barrel Hook, also known as Grade 8 Barrel Hook, and Grade 8 Barrel Lifting Hook.

This Grade 80 barrel hook is crafted from carbon steel and is finished with power coating with a 4:1 safety factor.

Designed for lifting and transporting barrels, it must always be used in pairs and can be attached to either lifting chains or steel wire ropes to form slings.

To Get A Quote >

CLGR® Grade 80 Barrel Hook China Manufacturer

CLGR® Grade 80 Barrel Hook China Supplier

Overview of CLGR® Grade 80 Barrel Hook

Brand	CLGR®
Standard	EN1677
Material	Super Alloy Steel
Safety Factor	4: 1
Processing	Drop Forged / Quenched and Tempered
Finish	Powder Coated
Size	1T, 2T
Tips	Color Code can be Customized.
Note	Never exceed working load limit

Specifications of CLGR® Grade 80 Barrel Hook

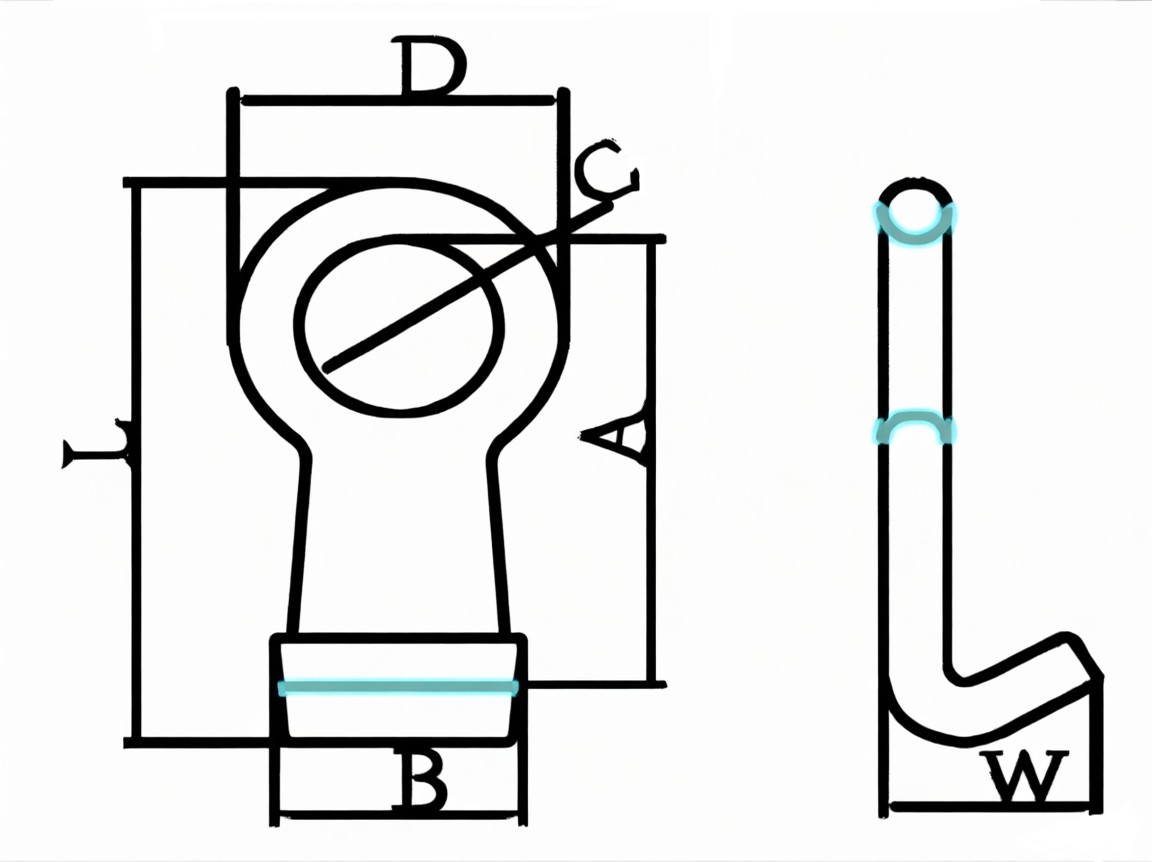

drawing-clgr-grade-80-barrel-hook-china-supplier

Part No.

Weright

/KG

WLL

(T)

B.L.

(T)

A±2

B±2

C±1

D±1.2

L±2

W±2

8CRBH1T

0.7

109

118.5

8CRBH2T

0.55

102

128
