CLGR® Grade 80 Eye Shortening Grab Hook with Safety Pin for Lifting Chain Sling

Name: CLGR® Grade 80 Eye Shortening Grab Hook with Safety Pin for Lifting Chain Sling
Brand: CLGR®

CLGR® Grade 80 Eye Shortening Grab Hook with Safety Pin, also known as Grade 80 Eye Grab Hook with Locking Pin, G80 Eye Grab Hook with Bolt and Cotter Pin, G80 Eye Shortening Grab Hook with Safety Pin and Lifting Eye Grab Hook with Safety Pin.

This g80 eye grab hook is equipped with a spring-loaded locking pin designed for secure load lashing. The pin securely retains the chain, preventing any accidental release during operation.

This eye shortening hook, which can be easily mounted using a connecting link, is designed to enhance safety and stability, enabling quick and damage-free movement and storage of various loads.

To Get A Quote >

CLGR® Grade 80 Eye Shortening Grab Hook with Safety Pin

CLGR® Grade 80 Eye Shortening Grab Hook with Safety Pin China Manufacturer

CLGR® Grade 80 Eye Shortening Grab Hook with Safety Pin China

CLGR® Grade 80 Eye Shortening Grab Hook with Safety Pin China Factory

 

Overview of Grade 80 Eye Shortening Grab Hook with Safety Pin

Brand	CLGR®
Standard	EN1677
Material	Superior Alloy Steel
Safety Factor	4:1
Processing	Drop Forged / Quenched and Tempered
Finish	Powder Coated
Size	7/8mm, 10mm, 13mm
Tips	Special specification or color can be customized according to customers' requirements
Note	Never exceed working load limit

Specifications of Grade 80 Eye Shortening Grab Hook with Safety Pin

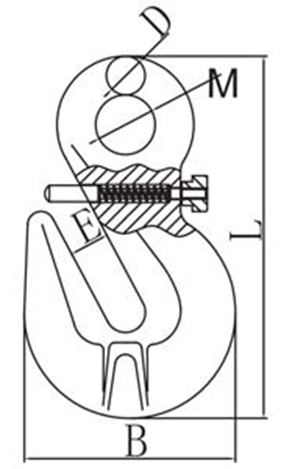

drawing-clgr-grade-80-eye-shortening-grab-hook-with-safety-pin-china-supplier

Part No.	U.W.	W.L.L.	B.L	M	B	D	E	L
Part No.	KGS	TONS	TONS	MM	MM	MM	MM	MM
8CRESGHWP7/8	0.29	2	8	17	50	9.5	11	88.5
8CRESGHWP10	0.75	3.15	12.6	20	71	13	13	121.5
8CRESGHWP13	1.62	5.3	21.2	26	96	15.5	16.5	158
