CLGR® Clevis Reeving Link Pear Shaped

Name: CLGR® Clevis Reeving Link Pear Shaped
Brand: CLGR®

CLGR® Clevis Reeving Link Pear Shaped, also known as Clevis Master Link Reeving Ring, Reeving Ring, Clevis Pear Links, and Clevis Reeve Master Link.

Clevis Reeving Links pear shape, serve as universal fasteners for connecting and securing components across diverse applications. They are crucial for rigging, specifically in assembling chain slings for heavy lifting operations.

Engineered for superior performance, this link offers an exceptional strength-to-weight ratio, ensuring maximum load-bearing capacity without unnecessary bulk. Each link undergoes rigorous testing to guarantee consistent integrity and reliability under the most demanding lifting conditions.

To Get A Quote >

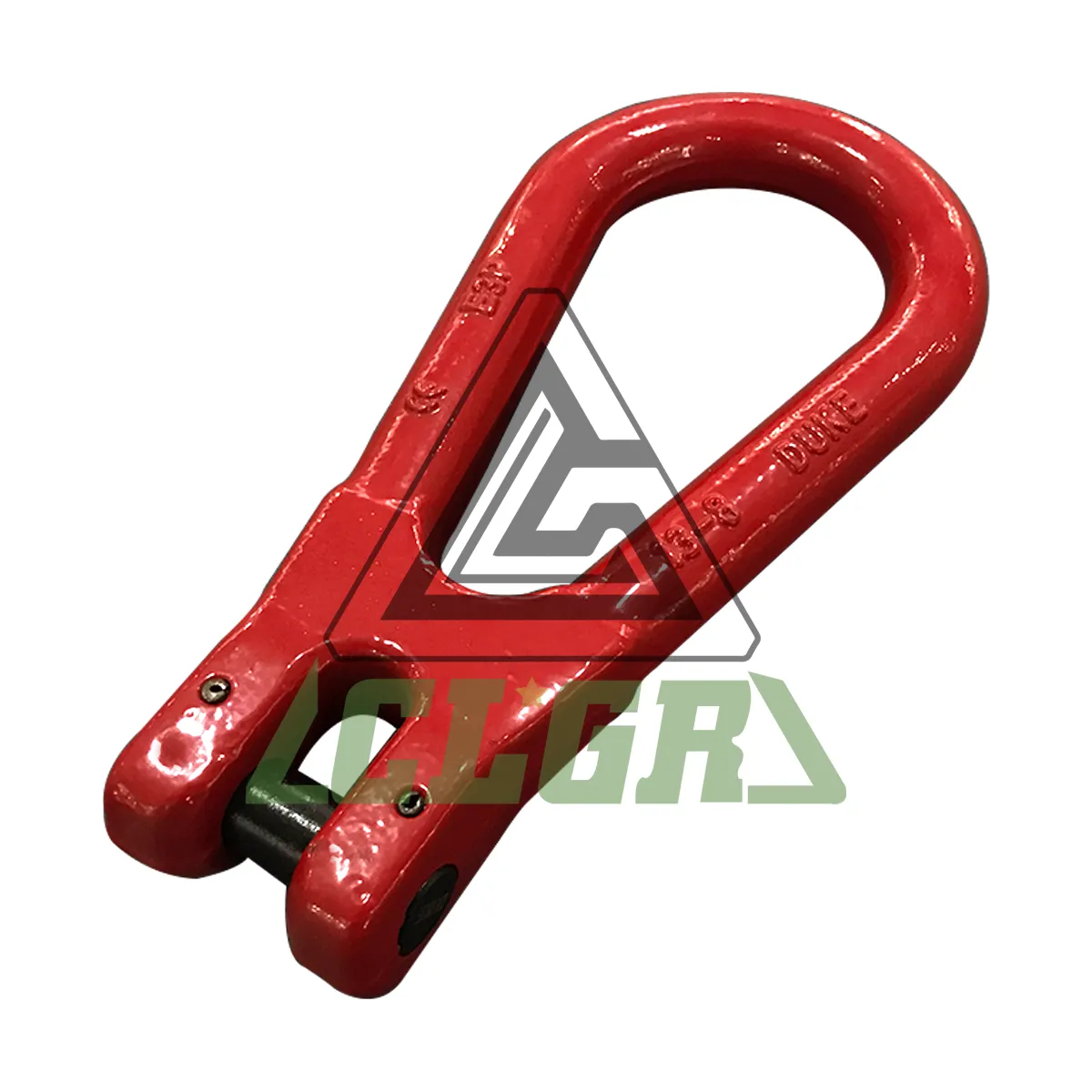

CLGR® Clevis Reeving Link Pear Shaped China Manufacturer

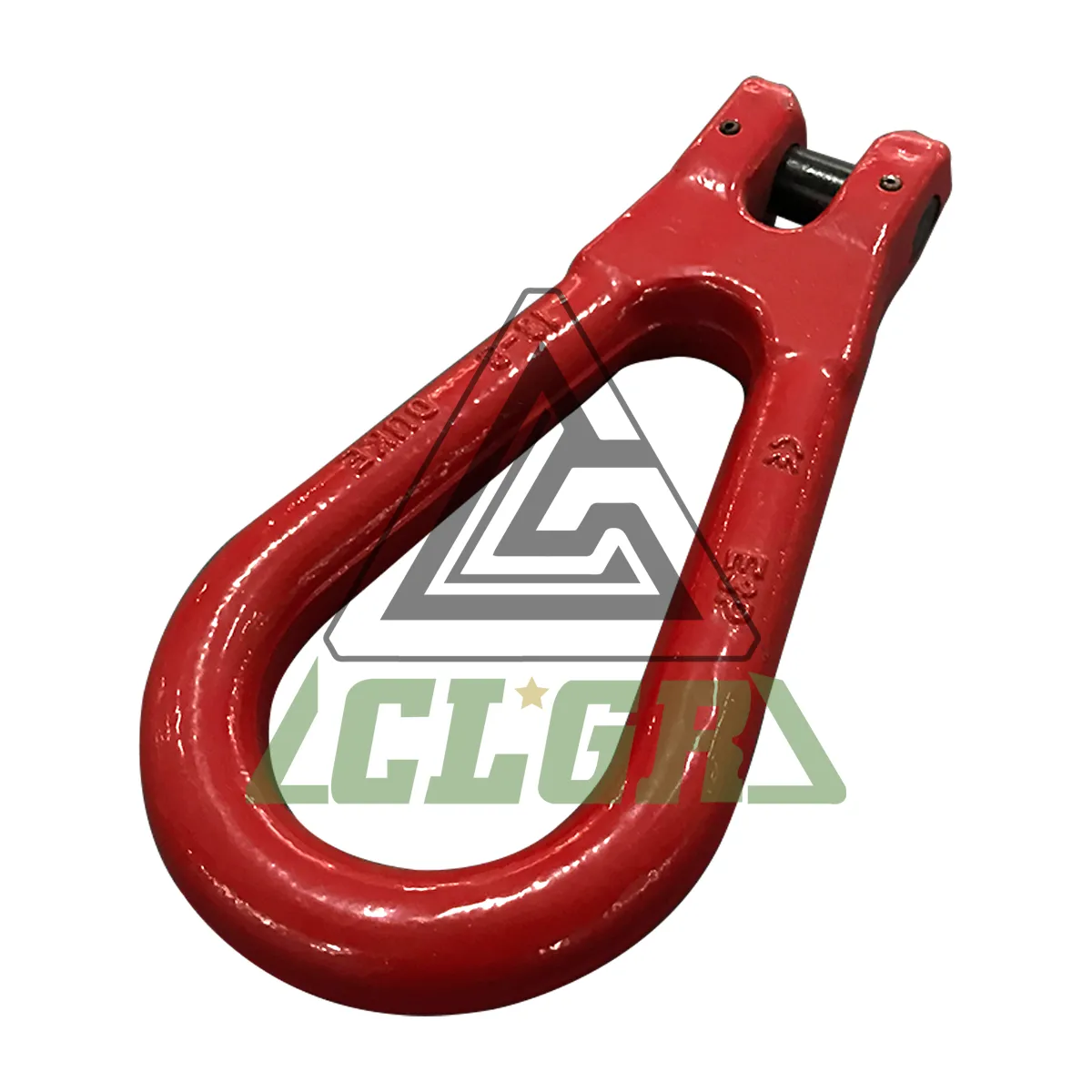

CLGR® Clevis Reeving Link Pear Shaped China Supplier

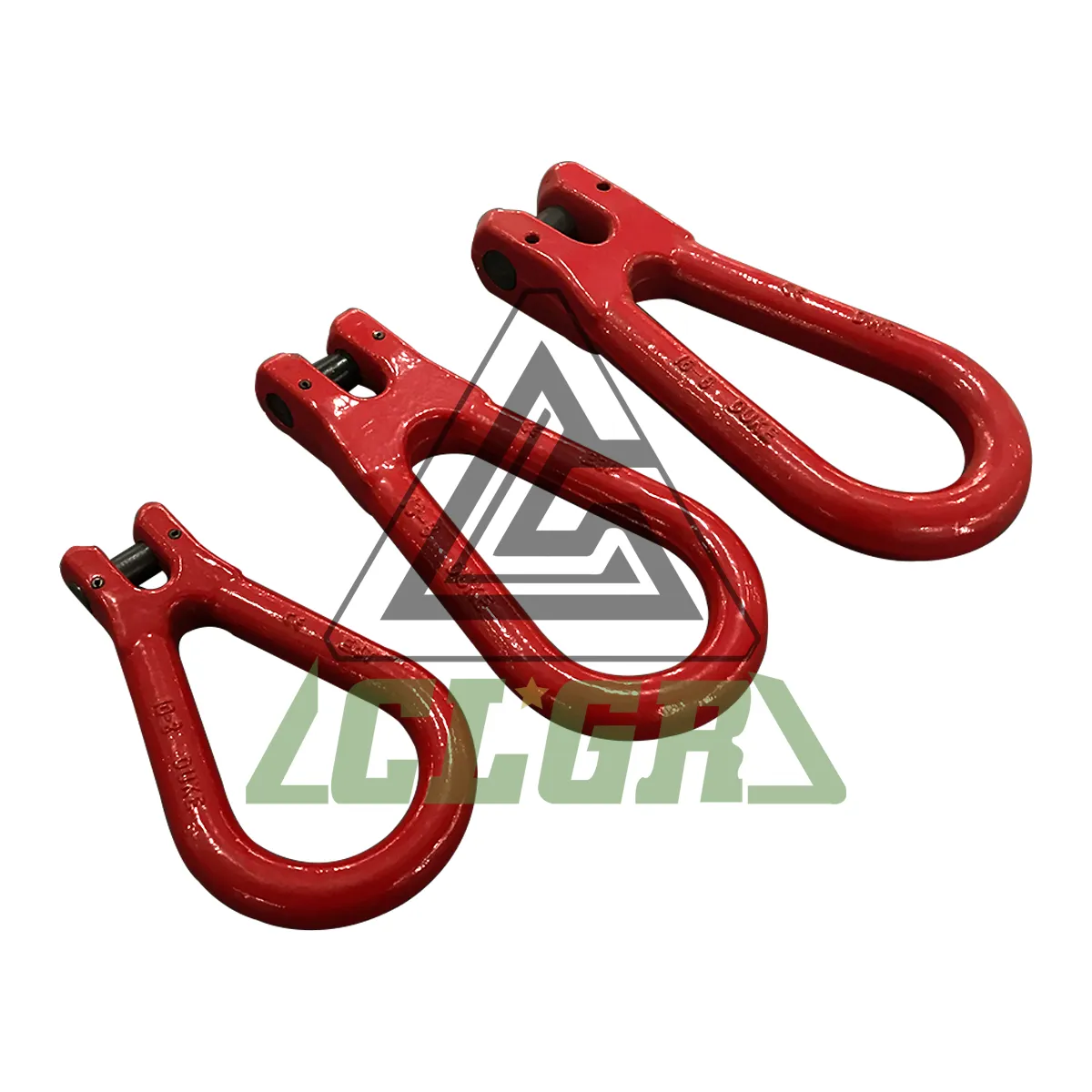

CLGR® Clevis Reeving Link Pear Shaped China Factory

 

Overview of CLGR® Clevis Reeving Link Pear Shaped

Brand	CLGR®
Standard	EN1677
Material	Super Alloy steel
Processing	Drop Forged / Quenched and Tempered
Finish	Powder Coated
Size	7/8mm, 10mm, 13mm, 16mm, 20mm
Safety Factor	5:1
Country of Origin	China

Specifications of CLGR® Clevis Reeving Link Pear Shaped

*Ultimate load is 4 times the Working Load Limit.

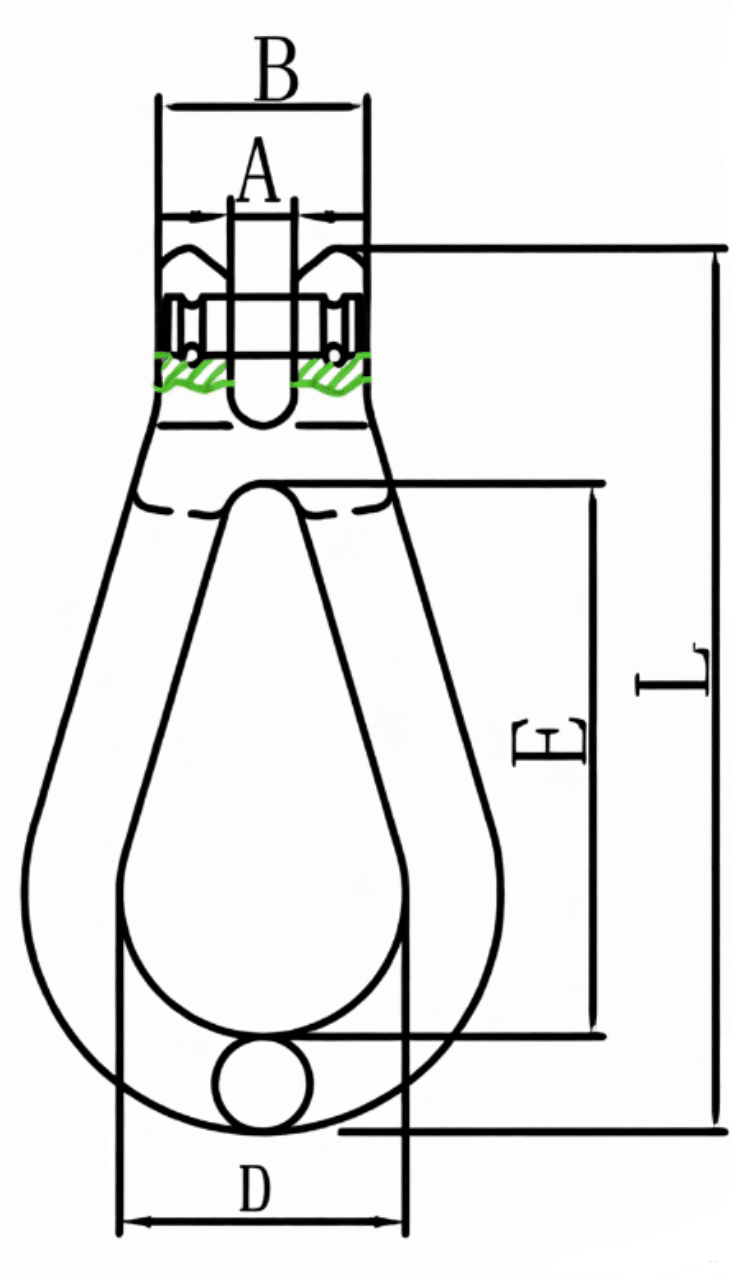

Part No.	WEIGHT (KG)	WLL (T)	BL (T)	A	B	D	E	L
CR8CRL7/8	0.53	2	8	10	32.8	45	87	139
CR8CRL10	0.74	3.15	12.6	12	42	60	108	174
CR8CRL13	1.76	5.3	21.2	16.5	55.5	66.5	137.5	228
CR8CRL16	2.8	8	32	19	68	72	165	264
CR8CRL20	3.5	10	40	23	73	98	185	317

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
