CLGR® Grade 80 Clevis Foundry Hook

Name: CLGR® Grade 80 Clevis Foundry Hook
Brand: CLGR®

CLGR® Grade 80 Clevis Foundry Hook, also known as G80 Clevis Style Foundry Hooks or G80 Foundry Hook Clevis Type.

Crafted from G80 alloy steel, the Grade 80 Clevis Foundry Hook boasts a 4:1 safety factor—making it ideal for heavy-duty lifting tasks, particularly in foundries and industrial settings. Its clevis design with large mouth opening enables effortless connection to chains, while its specialized construction suits pipe lifting and other foundry-specific applications.

Designed for compatibility with both Grade 100 and Grade 80 chain, this hook is fatigue-rated to withstand 20,000 cycles at 1-1/2 times the Working Load Limit (WLL). It also offers versatile tip-loading capability at a correspondingly reduced WLL.

To Get A Quote >

CLGR® Grade 80 Clevis Foundry Hook China Supplier

CLGR® Grade 80 Clevis Foundry Hook China

Overview of CLGR® Grade 80 Clevis Foundry Hook

Brand	CLGR®
Material	Super Alloy Steel
Safety Factor	4:1
Processing	Forged / Quenched and Tempered.
Finish	Power Coated
Application	Suitable for use with Grade 100 and Grade 80 chain
Note	Do not exceed working load limit Ensure the load is retained properly in the hook.

Specifications of CLGR® Grade 80 Clevis Foundry Hook

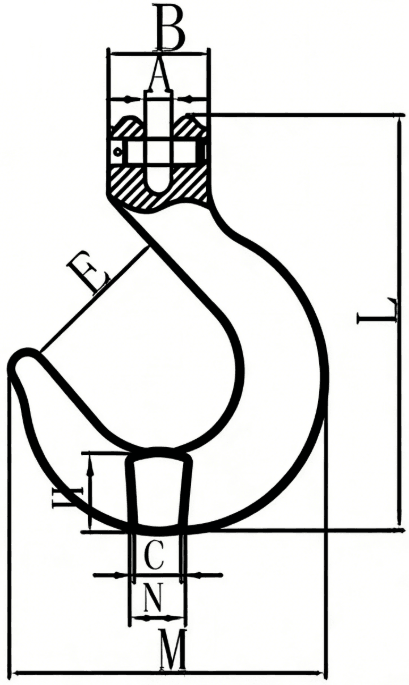

drawing-clgr-grade-80-clevis-foundry-hook-china-supplier

Part No.

Size

Weight (KG)

W.L.L.

(T)

B.L.
(T)

(mm)

8CRCFH7/8

7/8

1.1

9.5

128

63.4

161

8CRCFH10

2.5

3.15

12.6

156

76.9

169
