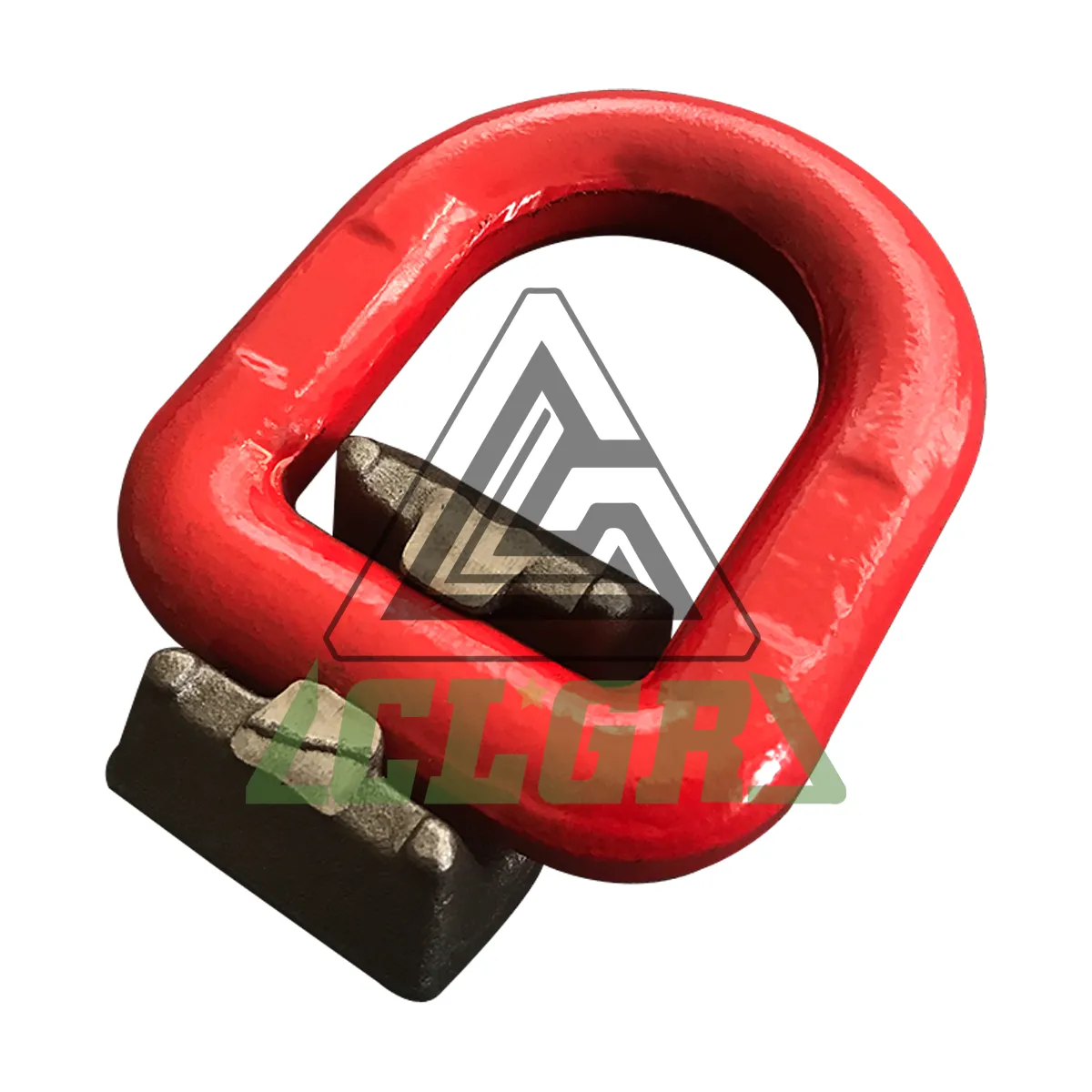

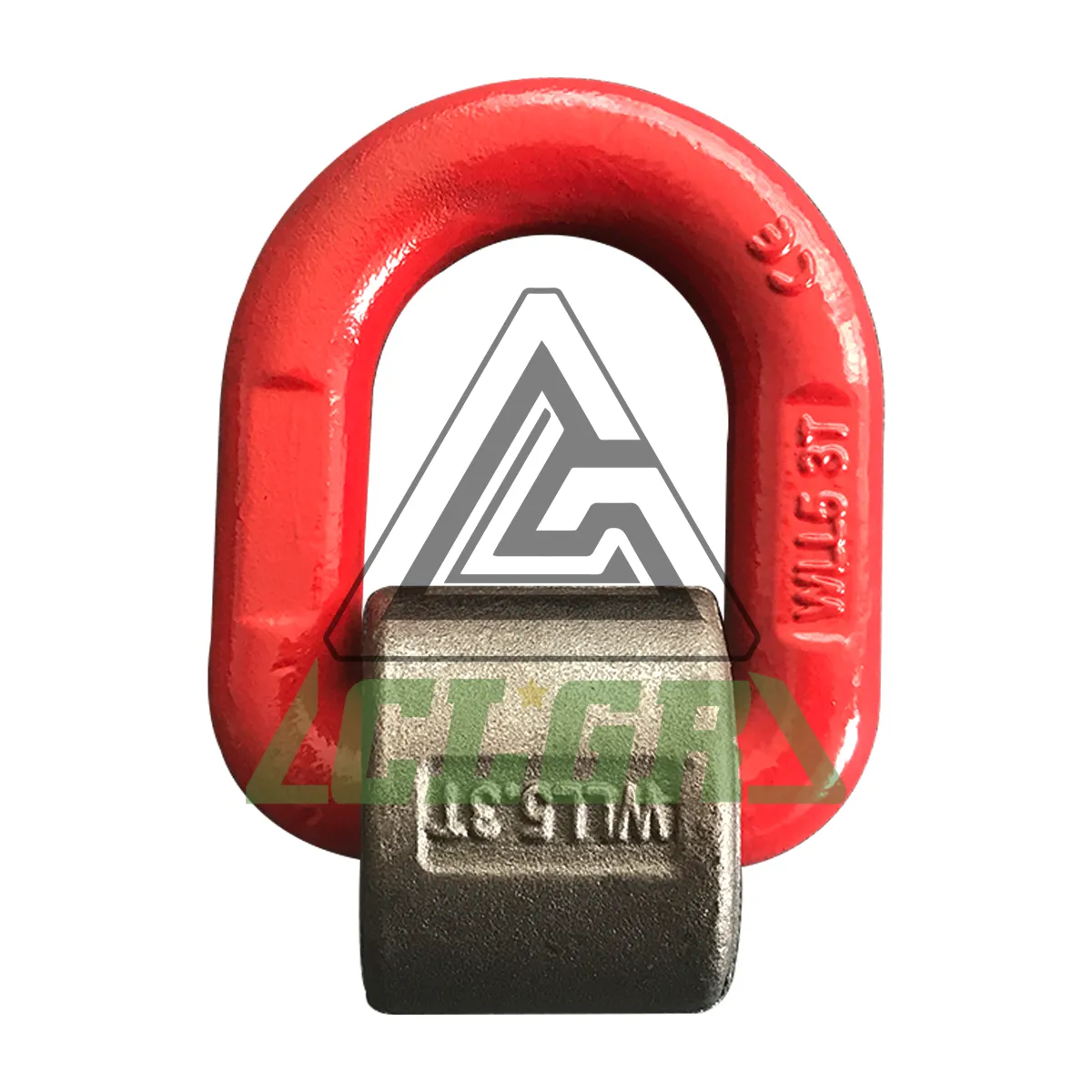

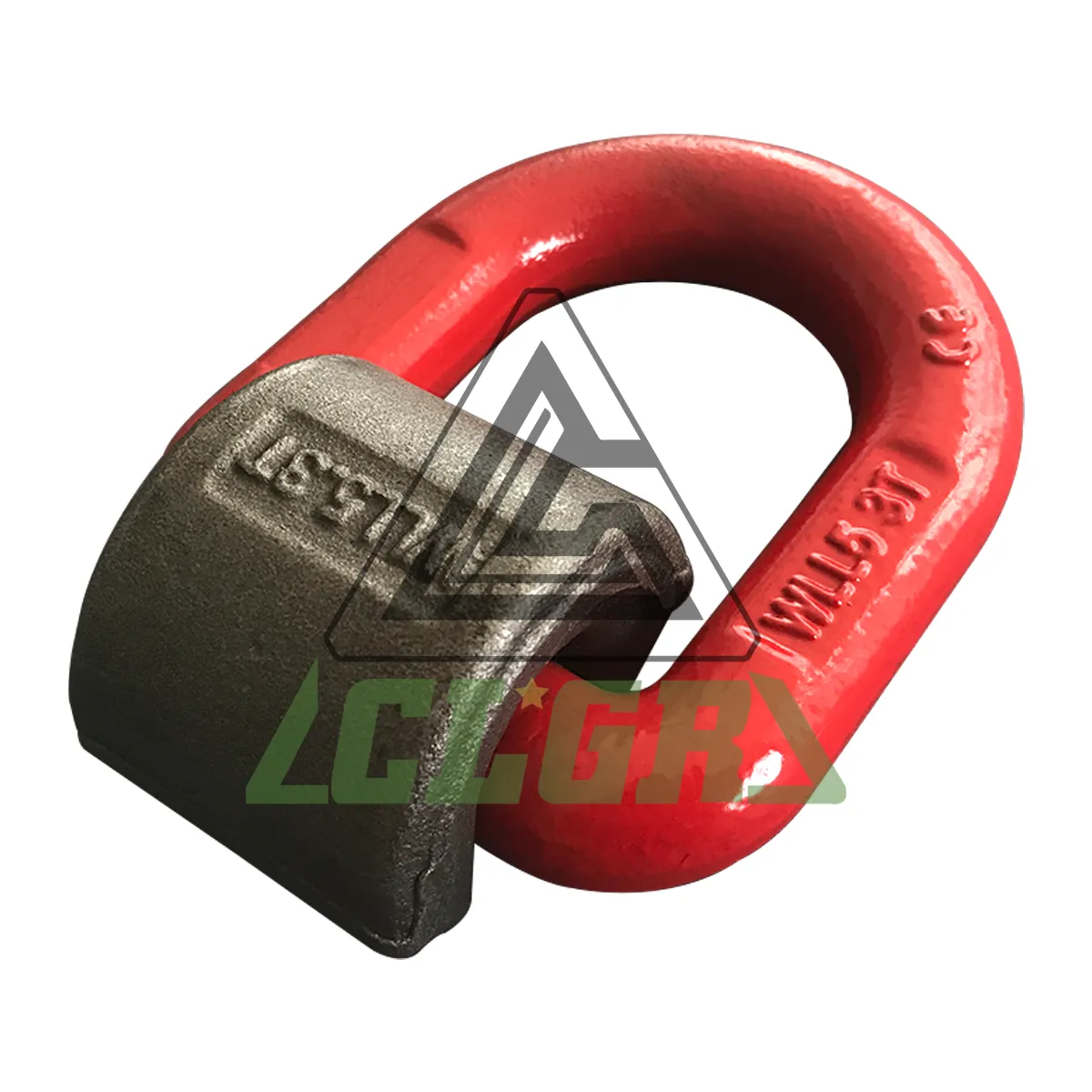

CLGR® G80 Weld-On Pivot D Link, also known as Grade 80 Lifting D Ring, Grade 80 Weld On Pivoting D Link, G80 Weld On Lifting Point, G80 Forged D Ring. We also have the Forged D-ring with spring.
Manufactured from grade 80 alloy steel, and finished with power coated, it provides the corresion resistence and durablity.
Engineered for heavy-duty lifting applications, these pivot links are ideal for farm machinery, trucks, steel-hulled vessels, and industrial equipment.
Unlike basic weld-on pads, they are specifically rated for overhead lifting and built to withstand critical load conditions.
Avaliable size in 1T, 2T, 3T, 5T , 8T, 10T, 15T, 20T, special specification and colors can be customized.
Brand | CLGR® |
Standard | EN1677 |
Material | Super Alloy Steel |
Safety Factor | 4: 1 |
Processing | Drop Forged / Quenched and Tempered |
Finish | Powder Coated + Self-color |
Size | 1T, 2T, 3T, 5T , 8T, 10T, 15T, 20T |
Tips | Color Code can be customized. |
| Note | Never exceed working load limit |

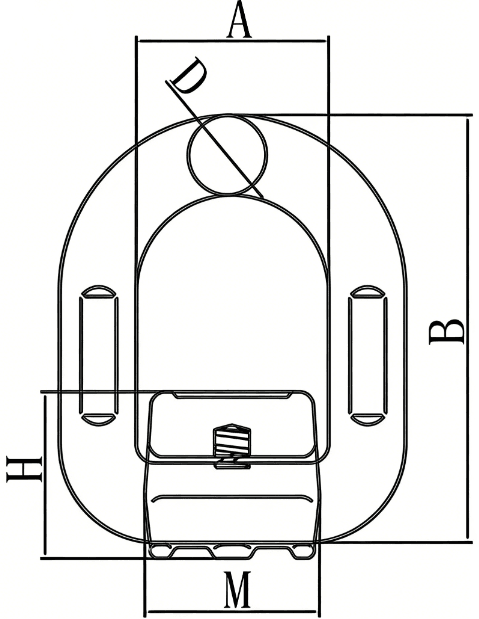

Part No. | WEIGHT | WLL | B.L (T) | A±2 | B±3 | D±2 | M±1.5 | H±0.3 |
8CRWOPDL1T | 0.40 | 1.12 | 4.48 | 41 | 78.5 | 13 | 37 | 33.5 |
8CRWOPDL2T | 0.47 | 2 | 8 | 42 | 88 | 14 | 38 | 35.5 |
8CRWOPDL3T | 0.69 | 3.15 | 12.8 | 45 | 94 | 17 | 43.5 | 39 |
8CRWOPDL5T | 1.46 | 5.3 | 21.2 | 55 | 118 | 22 | 50 | 49 |
8CRWOPDL8T | 2.50 | 8 | 32 | 70 | 141 | 26.5 | 70.5 | 54 |
8CRWOPDL10T | 3.60 | 10 | 40 | 85 | 165 | 28 | 78 | 63.5 |
8CRWOPDL15T | 5.80 | 15 | 60 | 97 | 188 | 34 | 90 | 72 |
