Grade 80 Viking Kelly's eye EVR Alloy Steel 15T/20T is also called EVR Kelly's Eye High tensile steel.
It is a durable, high-strength lifting component forged from superior alloy steel and is usually paired with the Viking G Hook EVG Hook. With a working load limit of 15T or 20T, it is built to handle the toughest lifting and rigging tasks.
Its compliance with international standards guarantees safety and reliability in challenging environments like construction, maritime, and industrial operations.
Brand | CLGR® |
WLL | 15T, 20T |
Material | Superior Alloy Steel |
Safety Factor | 5: 1 |
Processing | Drop Forged / Heat Treatment |
Surface Finish | Powder Coating |
Note | Special specifications and marks can be made according to customer requirements. |

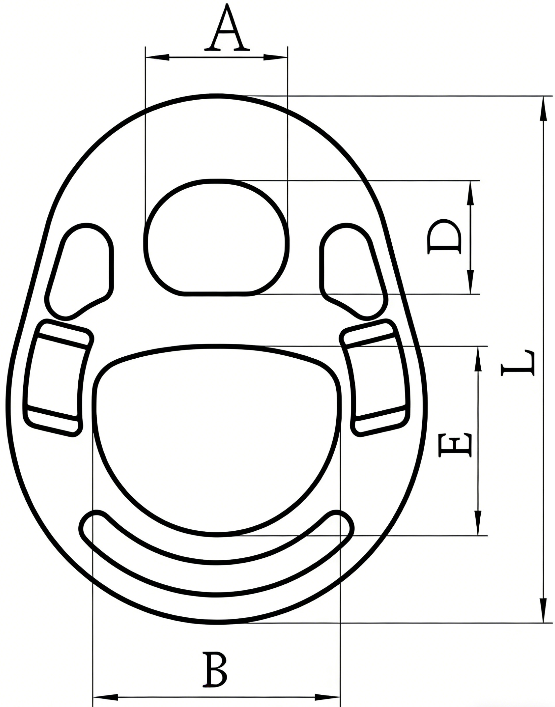

Part No. | Weight (kg) | WLL/t | B.L./t | A±1 | B±1.2 | D±1 | E±1 | L±2 |
8CREVR15 | 2.64 | 15 | 75 | 52 | 90 | 40 | 66 | 185 |
8CREVR20 | 5.18 | 20 | 100 | 82 | 125 | 45.5 | 106 | 227.5 |
