CLGR® Master Link Pressed End Ring - Korean Type

Name: CLGR® Master Link Pressed End Ring - Korean Type
Brand: CLGR®

CLGR® Master Link, also known as Master Link Rings, Oblong Master Link, Pressed End Ring and Master Rings.

Manufactured to Korean standard, this master link is drop-forged from high-quality alloy steel with a powder coated finish for added corrosion resistance. It is designed as a central connection point in chain sling systems, linking lifting chains, hooks, and other rigging components.

Individually proof-tested and certified, it is suitable for single-leg and multi-leg overhead lifting applications. The oblong shape allows for smooth attachment of multiple chain legs, reducing stress concentrations and ensuring even load distribution.

Available in working load limits from 2t to 24t, available sizes: 13mm, 16mm, 19mm, 22mm, 25mm, 28mm, 32mm, 35mm, 38mm, 41mm, 45mm.

To Get A Quote >

Overview of CLGR® Master Link Pressed End Ring

Brand	CLGR®
Size	13mm, 16mm, 19mm, 22mm, 25mm, 28mm, 32mm, 35mm, 38mm, 41mm, 45mm.
Material	Superior Alloy Steel
Standard	Korean Type
Safety Factor	4: 1
Processing	Quenched and Tempered
Surface Finish	Plastics Spraying
Note	Color code can be customized

Specification of CLGR® Master Link Pressed End Ring


Part No.	Size	A	B	C	D	E	S.W.L	B.T.L	Weight
Part No.	mm						ton	ton	kg
CR-ML-K13	13	12.7	63.5	88.9	127	152.4	3.2	16	0.4
CR-ML-K16	16	16	76	108	152	184	4.1	20.5	0.7
CR-ML-K19	19	19	70	108	140	178	5.6	28	0.9
CR-ML-K22	22	22	45	89	95	139	2	13.5	1.3
CR-ML-K25	25	25	45	140	100	150	3	17.8	1.9
CR-ML-K25L	25	25	90	140	178	228	11.1	55.5	2.2
CR-ML-K28	28	28	50	106	115	171	5	22	2.2
CR-ML-K32	32	32	50	114	130	194	6.5	28.8	2.7
CR-ML-K32L	32	32	111	175	222	286	16.4	82	4.3
CR-ML-K35	35	35	60	130	140	210	8.5	34.4	3.6
CR-ML-K38	38	38	62	138	150	226	10	41.5	4.5
CR-ML-K38L	38	38	133	209	267	343	24.7	123.5	7.4
CR-ML-K41	41	252	170	144	82	41	13.5	47.1	5.9
CR-ML-K45	45	270	180	155	65	45	15	57	7.3

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.

CLGR® News & Blogs

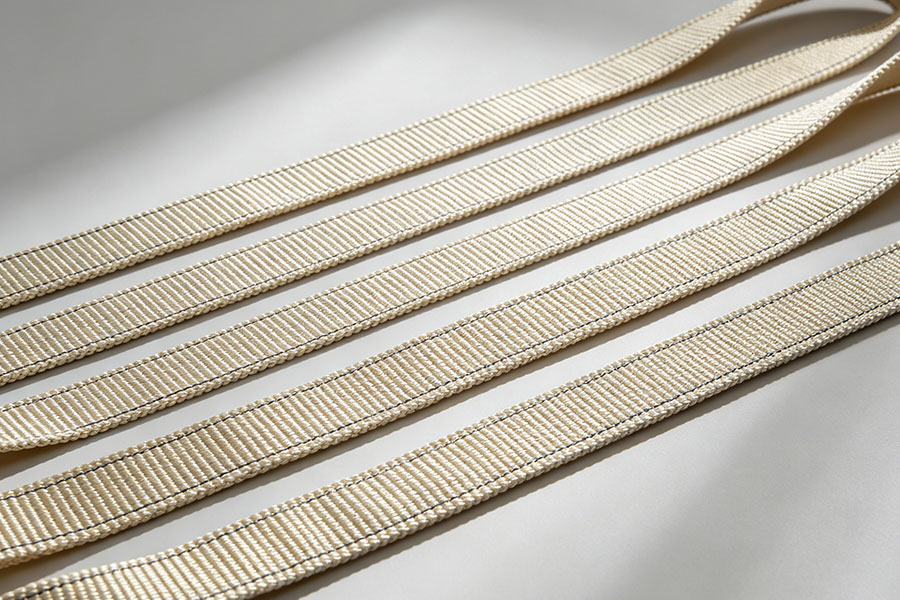

Fishing Slings: A Practical Guide to Safer, More Efficient Fish Handling
