CLGR® Stainless Steel Commercial Turnbuckle Hook and Hook

Name: CLGR® Stainless Steel Commercial Turnbuckle Hook and Hook
Brand: CLGR®

CLGR® Stainless Steel Commercial Turnbuckle Hook and Hook, also known as Open Body Straining Screw Hook/Hook.

The Stainless Steel Open Body Turnbuckle Hook & Hook is a robust and reliable choice for adjusting and securing rigging tension. It provides flexibility for a variety of applications. Crafted from premium stainless steel, it ensures excellent resistance to corrosion and wear. Dependable and precise, this turnbuckle is a must-have for any rigging setup. It can be used for both lifting and lashing.

Our range of Open Turnbuckle is available in standard as well as customized sizes.

And also available in eye & eye turnbuckle, jaw & eye turnbuckle, hook & eye turnbuckles.

To Get A Quote >

1 CLGR® Stainless Steel Commercial Turnbuckle Hook and Hook

CLGR® Stainless Steel Commercial Turnbuckle Hook and Hook

 

Overview of CLGR® Stainless Steel Commercial Turnbuckle Hook and Hook

Brand	CLGR®
Size	M5, M6, M8, M10, M12, M16, M20
Type	Commercial European Type
Material	Stainless Steel
Processing	Body: Cast / Forged Hook: Welding / Precision Cast
Finish	Highly Polishing

Specifications of CLGR® Stainless Steel Commercial Turnbuckle Hook and Hook

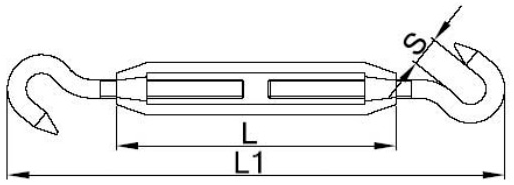

drawing-stainless-steel-commercial-turnbuckle-hook-hook

Part No.	Size	L(mm)	L1(mm)	S(mm)	WLL(kg)
CRSSTHHEU05	M5	70	120	8	40
CRSSTHHEU06	M6	90	150	9	80
CRSSTHHEU08	M8	120	200	11	140
CRSSTHHEU10	M10	150	240	12	220
CRSSTHHEU12	M12	200	310	14	300
CRSSTHHEU16	M16	250	390	16	600
CRSSTHHEU20	M20	300	440	18	900
