CLGR® Grade 70 Ratchet Load Binder US.Fed.Spec

Name: CLGR® Grade 70 Ratchet Load Binder US.Fed.Spec
Brand: CLGR®

The G70 Ratchet Load Binder, also known as Grade 70 Chain Ratchet Binder, L/binder Ratchet Wing Grab Hook, Chain Ratchet Tensioner.

Made from superior alloy steel, these heavy-duty transport chain ratchet binders are designed to tighten grade 70 transport chain.

Tie downs over a load – the ratcheting mechanism allows you to easily tighten and loosen the tension in your chain. The forged steel handle offers maximum leverage and is designed for easier and faster securement. The design includes two heavy-duty grab hooks for superior attachment capabilities.

To Get A Quote >

CLGR® Grade 70 Ratchet Load Binder US.Fed.Spec

 

Overview of CLGR® Grade 70 Ratchet Load Binder US.Fed.Spec

Brand	CLGR®
Technical Notes	U.S. Federal Specification
Material	Superior Alloy Steel
Safety Factor	3.5: 1
Processing	Drop Forged / Machining
Finish	Powder Coated
Size	1/4”-5/16”, 5/16”-3/8”, 3/8”-1/2”, 1/2”-5/8”
Tips	Color Code: Customized according to customers' requirements
Note	NOT FOR LIFTING, ONLY FOR LASHING. Ratings governed by the National Association of Chain Manufacturers (NACM).

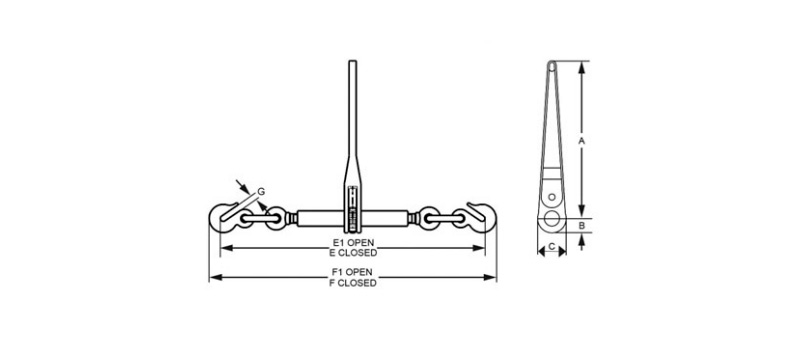

Specifications of CLGR® Grade 70 Ratchet Load Binder US.Fed.Spec

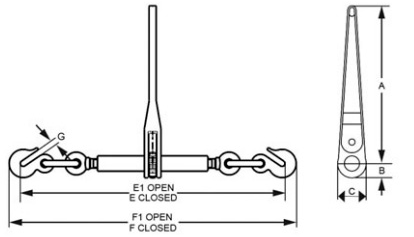

drawing-of-clgr®-grade-70-ratchet-load-binder-us.fed.spec-china-manufacturer

Part No.	Size	WLL (lbs)	Proof Load (lbs)	B.L. (lbs)	Weight (lbs)	Handle Length (in)	Dimensions(in)
							A		B	C	E			E1	F		G
7CRRCBUS01	1/4"-5/16"	2200	4400	7800	3.52	716	716	0.89		1.77		16.22	21.26			17.79	0.35
7CRRCBUS02	5/16"-3/8"	5400	10800	19000	10.5	13.42	13.92	1.3		2.6		22.46	30.64			25.24	0.51
7CRRCBUS03	3/8"-1/2"	9200	18400	33000	12.9	13.92	13.92	1.3		2.6		24.13	32.13			27.04	0.59
