CLGR® Forged Steel Lashing Chain Tension Lever

Name: CLGR® Forged Steel Lashing Chain Tension Lever
Brand: CLGR®

The CLGR® Forged Steel Lashing Chain Tension Lever, also known as Lashing Chain Tensioner, Chain Tension Binder Lashing Lever or Tension Lever, and Chain Tension Lever Load Binder.

The Tension Lever is crafted from superior forged steel and comes complete with a chain and hooks (note that the stated length excludes the chains and hooks). The length of the chain can also be adjusted with the Tension Lever. The Tension lever is always used in combination with Cargo Lashing Chains. Additionally, they are especially useful for use on board ships as well as on large trucks and Roll On Roll Off equipment.

And we can offer a variety of sizes, and special specifications and marks can be customized according to customers' requirements.

To Get A Quote >

CLGR® Forged Steel Lashing Chain Tension Lever Working Principle

Overview of CLGR® Forged Steel Lashing Chain Tension Lever

Brand	CLGR®
Size	9mm, 11mm, 13mm
Material	Superior Alloy Steel
Processing	Drop Forged / Machining
Finish	Powder Coated
Tips	Color Code: Customized according to customers' requirements. Counter parts is long-link chain.

Special specification and marks can be made according to customer' s requirements.

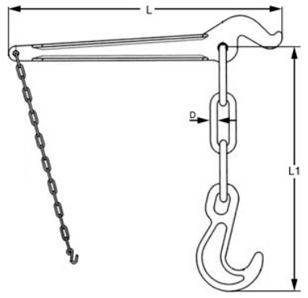

Specifications of CLGR® Forged Steel Lashing Chain Tension Lever

Part No.	Chain Size (mm)	D (mm)	L (mm)	L1 (mm)	MBL (kg)	WEIGHT (kg)
CRTLCH09	9	11	575	275	10000	3.4
CRTLCH11	11	12	585	345	15000	4.5

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
