CLGR® G100 Ratchet Load Binder with Safety Hook

Name: CLGR® G100 Ratchet Load Binder with Safety Hook
Brand: CLGR®

The G100 Ratchet Load Binder with Safety Hook, also known as Ratchet Chain Binder, Load Binder Ratchet Wing Grab Hook G100 and Chain Ratchet Tensioner.

This Grade 100 Load Binder is crafted from extra strong and wear-resistant steel, making it suitable for heavy loads and long-term use. Featuring a grab hook and a sling hook, it delivers maximum safety and flexibility— the grab hook allows for easy adjustment of chain length, while the sling hook ensures quick and secure attachment. Equipped with an anti-loosening mechanism, it prevents unintended loosening and enhances overall reliability, ensuring strong and durable load securing in every use.

Designed to meet the highest standards, this load binder complies with NEN-EN 12195-3, a benchmark for load securing systems. It boasts a wide range of applications, making it ideal for transport, logistics, construction, and shipping scenarios— particularly for securely and efficiently securing loads on trucks, ships, or containers. When paired with a matching Grade 100 lashing chain, it forms a robust and durable solution for all your load securing needs.

To Get A Quote >

CLGR® G100 Ratchet Load Binder with Safety Hook Manufacturers

CLGR® G100 Ratchet Load Binder with Safety Hook Suppliers

CLGR® G100 Ratchet Load Binder with Safety Hook Factory

CLGR® G100 Ratchet Load Binder with Safety Hook Exporter

CLGR® G100 Ratchet Load Binder with Safety Hook China

CLGR® G100 Ratchet Load Binder with Safety Hook in China

 

Overview of CLGR® G100 Ratchet Load Binder with Safety Hook

Brand	CLGR®
Size	8mm, 10mm, 13mm
Technical Notes	European Type (EN12195-3)
Material	Superior Alloy Steel
Safety Factor	2: 1
Processing	Drop Forged / Machining
Finish	Powder Coated
Tips	Color Code: Customized according to customers' requirements
Note	NOT FOR LIFTING, ONLY FOR LASHING.

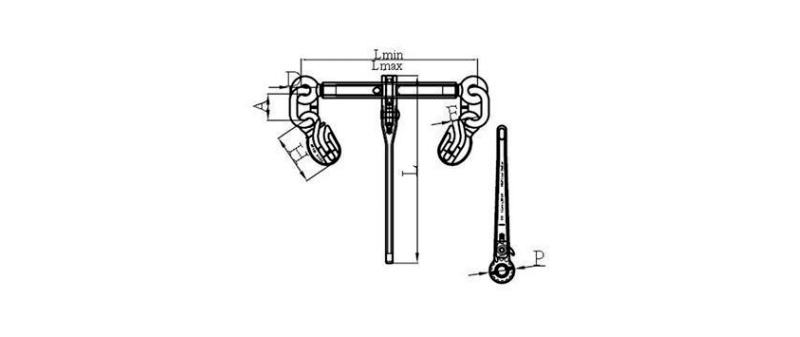

Specifications of CLGR® G100 Ratchet Load Binder with Safety Hook

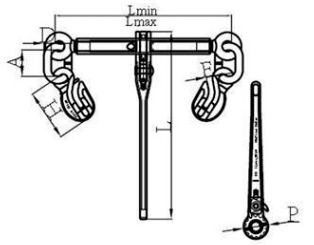

drawing-of-clgr®-g100-ratchet-load-binder-with-safety-hook

Part No.	Weight (kg)	LC/KN	BF/KN	A±4	D±1.5	H±2	E±2	L±3	P±1	L min±4	L max±4
10CRRLBSH08	3.71	50	100	50	12	98	10.5	383	56	340	500
10CRRLBSH10	5.85	80	160	50	14	121.5	13	390	65	365	525
10CRRLBSH13	9.34	134	268	72	20	159.5	15.5	392.5	69
