CLGR® Wire Rope Sling 2-leg – The China Manufacturer, Factory

Name: CLGR® Wire Rope Sling 2-leg – The China Manufacturer, Factory
Brand: CLGR®

CLGR® Wire Rope Sling 2-leg, also known as Wire Sling - Two Leg, Double Leg Wire Rope Slings, Sign Hanging 2 Leg Wire Sling and Double Leg Bridle Wire Rope Slings.

Double leg wire rope slings typically feature a mechanical splice or flemish eyes at the end of the body. They consist of 2 wire rope assemblies connected to an oblong master link. The lifting ends of the wire rope legs can be equipped with various hooks, eyes, or rings, enabling attachment to any object.

Designed for general lifting when direct attachment to the load is possible, these slings are made of strong, high - quality steel. This steel resists corrosion, heat, sunlight, and most chemicals. Thimbles enhance sling longevity by protecting the wire rope at connection points. The steel wire rope sling with 2 soft eyelets serves as an ideal solution for hanging signs.

To Get A Quote >

CLGR® Wire Rope Sling 2-leg – The China Manufacturer, Factory

 

Overview of CLGR® Wire Rope Sling 2-leg

Standard	EN13414
Material	Superior Mild Steel
Safety Factor	5:1
Number of Legs	2
Size	6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 24mm 28mm, 32mm, 38mm, 40mm, 44mm, 52mm, 56mm, 64mm, 70mm

Specifications of CLGR® Wire Rope Sling 2-leg

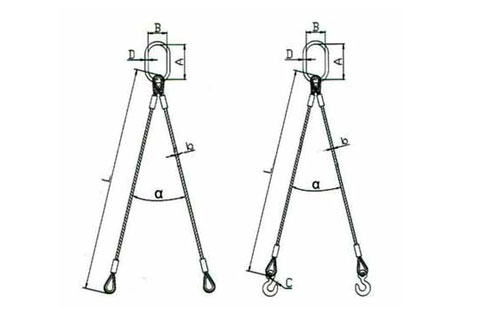

Part No.	Rope dia. (mm)	WLL(KN)（α≤90o）	WLL(KN)（90o≤α≤120o）	Loop dimension A×B×D (mm)）	Dimension of hook opening C (mm)
CR-2-WRS-06D	6	4.10	2.90	110×60×14	24
CR-2-WRS-08D	8	6.90	4.90	110×60×14	24
CR-2-WRS-10D	10	11.00	7.90	110×60×16	25
CR-2-WRS-12D	12	16.50	11.80	110×60×16	25
CR-2-WRS-14D	14	22.00	15.70	135×75×18	27
CR-2-WRS-16D	16	30.00	21.60	135×75×18	30
CR-2-WRS-18D	18	37.00	26.50	160×90×22	38
CR-2-WRS-20D	20	45.00	32.40	160×90×22	38
CR-2-WRS-24D	24	68.60	49.00	180×100×26	45
CR-2-WRS-28D	28	96.00	68.60	200×110×32	61
CR-2-WRS-32D	32	123.60	88.30	260×140×36	66
CR-2-WRS-38D	38	165.00	117.70	300×160×40	87
CR-2-WRS-40D	40	185.00	132.40	340×180×45	87
CR-2-WRS-44D	44	206.00	147.00	340×180×45	87
CR-2-WRS-52D	52	302.40	216.00	350×190×50	102
CR-2-WRS-56D	56	359.80	257.00	400×200×56	107
CR-2-WRS-64D	64	469.00	335.00	430×220×63	121
CR-2-WRS-70D	70	560.00	400.00	460×250×72	146
