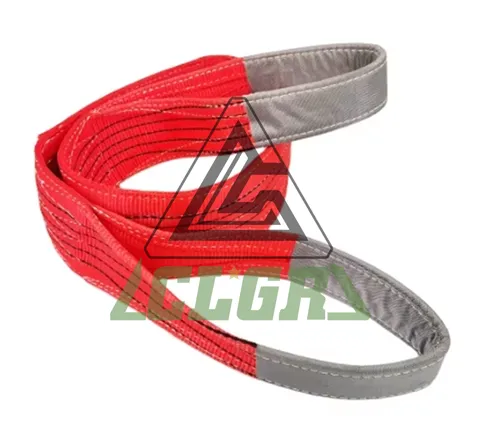

CLGR® 5 Ton Polyester Duplex Red Flat Webbing Lifting Slings

Name: CLGR® 5 Ton Polyester Duplex Red Flat Webbing Lifting Slings
Brand: CLGR®

CLGR® 5 Ton Polyester Red Flat Webbing Lifting Slings, also known as Duplex Red Flat Webbing Lifting Slings, Lifting Strops, Flat Polyester Webbing Slings, or Duplex Webbing Lifting Slings and Synthetic Web Slings.

Polyester duplex webbing lifting slings are colour-coded in line with European conventions to indicate the Safe Working Load Limit (SWL).

These slings are made of double-thickness webbing crafted from high-tenacity polyester yarn.

They are lightweight and supple, and their duplex construction ensures consistent pressure distribution on pressure and pull-sensitive loads, reducing the risk of damaging the load.

Moreover, they are UV-resistant, preventing material ageing or embrittlement.

To Get A Quote >

Overview of CLGR® 5 Ton Polyester Duplex Red Flat Webbing Lifting Slings

Brand	CLGR®
Material	Polyester construction
WLL	5ton / 5000kg Working Load Limit (WLL)
Safety factor	5:1, 6:1, 7:1, 8:1
Width	25mm/30mm/50mm
Effective working length	1m to 20m
Certificate	Complied with GS CE safety required;

Each sling is proof tested, individually serial numbered, tagged and complete with Test Certificate.

Specifications of CLGR® 5 Ton Polyester Duplex Red Flat Webbing Lifting Slings

Part No.	Length	Colour	W.L.L	Weight
Part No.	m		TON	Kg
CRFWS5T02D	2	Red	5	2.3
CRFWS5T03D	3	Red	5	3.3
CRFWS5T04D	4	Red	5	4.25
CRFWS5T05D	5	Red	5	5.15
CRFWS5T06D	6	Red	5	6.2
CRFWS5T08D	8	Red	5	8
CRFWS5T10D	10	Red	5	10.3

All slings are color-coded to indicate WLL (Working Load Limit).

Part. NO.	COLOUR	WLL (Kgs)	WIDTH	WORKING LOAD LIMIT IN Kgs WITH ONE WEBBING SLING					WORKING LOAD LIMIT IN Kgs WITH TWO WEBBING SLINGS
Part. NO.	COLOUR	WLL (Kgs)	WIDTH	STRAIGHT LIFT	CHOKED LIFT	LIFTING AT AN ANGLE β 0°-7°	LIFTING AT AN ANGLE β 7°-45°	LIFTING AT AN ANGLE β 45°-60°	STRAIGHT LIFT UP TO 45°	CHOKED LIFT UP TO 45°	STRAIGHT LIFT UP TO 45°-60°	CHOKED LIFT UP TO 45°-60°
CRFWL-1	VIOLET	1000	1 inch	1000	800	2000	1400	1000	1400	1120	1000	800
CRFWL-2	GREEN	2000	2 inch	2000	1600	4000	2800	2000	2800	2240	2000	1600
CRFWL-3	YELLOW	3000	3 inch	3000	2400	6000	4200	3000	4200	3360	3000	2400
CRFWL-4	GREY	4000	4 inch	4000	3200	8000	5600	4000	5600	4480	4000	3200
CRFWL-5	RED	5000	5 inch	5000	4000	10000	7000	5000	7000	5600	5000	4000
CRFWL-6	BROWN	6000	6 inch	6000	4800	12000	8400	6000	8400	6720	6000	4800
CRFWL-8	BLUE	8000	8 inch	8000	6400	16000	11200	8000	11200	8960	8000	6400
CRFWL-10	ORANGE	10000	10 inch	10000	8000	20000	14000	10000	14000	11200	10000	8000
