CLGR® Endless Flat Webbing Slings Polyester

Name: CLGR® Endless Flat Webbing Slings Polyester
Brand: CLGR®

CLGR® endless flat webbing sling, a type of lifting sling, finds extensive use across diverse industries for the purpose of lifting and securing heavy loads.

Crafted from a durable and flexible flat webbing material, usually polyester, it is stitched together to create a continuous loop.

Thanks to its endless design, it offers multiple configurations and attachment points, thus ensuring versatility in lifting operations.

These slings are well-regarded for their strength, load-bearing capacity, and resistance to abrasion. They are frequently employed in construction, manufacturing, and logistics sectors for tasks like lifting machinery, equipment, and materials.

To Get A Quote >

Overview of CLGR® Endless Flat Webbing Slings Polyester

Brand	CLGR®
Standard	According to EN1492-1
Material	100% high tenacity polyester
Type	Single ply/double ply
WLL	1ton/2ton/3ton/4ton/5ton/6ton/8ton/10ton/12ton Working Load Limit
Safety factor	5:1, 6:1, 7:1, 8:1
Width	25mm/50mm/75mm/100m/150mm/200mm/250mm/300mm
Country of Origin	China

Specifications of CLGR® Endless Flat Webbing Slings Polyester

Table: Lifting Sling –(Single-Ply) Polyester Endless Webbing Sling

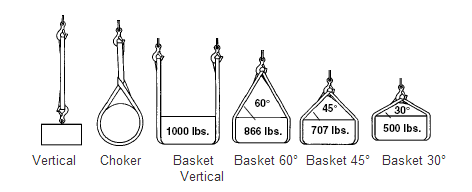

Product ID	Color Code to AS1353	Sling Width (mm)	Sling Thickness (mm)	Taper Width (mm)	Taper Length (mm)	Vertical（Working Load Limit(kg)）	Choker（Working Load Limit(kg)）	Basket Vertical（Working Load Limit(kg)）	Basket 60°（Working Load Limit(kg)）	Basket 45°（Working Load Limit(kg)）	Basket 30°（Working Load Limit(kg)）
CRWEN101T	Purple	25	3.8	-	-	1000	800	2400	1730	1410	1000
CRWEN102T	Green	50	3.8	25	225	2000	1600	4000	3470	2830	2000
CRWEN103T	Yellow	75	3.8	38	300	3000	2400	6000	5200	4240	3000
CRWEN104T	Grey	100	3.8	50	300	4000	3200	8000	6930	5600	4000
CRWEN105T	Red	125	3.8	45	375	5000	4000	10000	8670	7070	5000
CRWEN106T	Brown	150	3.8	50	375	6000	4800	12000	10400	8490	6000
CRWEN108T	Blue	200	3.8	75	450	8000	6400	16000	13860	11320	8000
CRWEN1010T	Orange	250	3.8	90	450	10000	8000	20000	16000	14140	10000

Table: Lifting Sling –(Double-Ply) Polyester Endless Webbing Sling

Product ID	Color Code to AS1353	Sling Width (mm)	Sling Thickness (mm)	Taper Width (mm)	Taper Length (mm)	Vertical（Working Load Limit(kg)）	Choker（Working Load Limit(kg)）	Basket Vertical（Working Load Limit(kg)）	Basket 60°（Working Load Limit(kg)）	Basket 45°（Working Load Limit(kg)）	Basket 30°（Working Load Limit(kg)）
CRWEN202T	Green	25	5	-	-	2000	1600	4000	3470	2830	2000
CRWEN204T	Grey	50	5	25	225	4000	3200	8000	6930	5600	4000
CRWEN206T	Brown	75	5	38	300	6000	4800	12000	10400	8490	6000
CRWEN208T	Blue	100	6.8	50	300	8000	6400	16000	13860	11320	8000
CRWEN2010T	Orange	125	6.8	63	375	10000	8000	20000	16000	14140	10000
