CLGR® Single Leg Wire Rope Sling

Name: CLGR® Single Leg Wire Rope Sling
Brand: CLGR®

CLGR® Single Leg Wire Rope Sling, also known as Wire Rope Sling 1-Leg.

Our Single Leg Wire Rope Sling pressed with steel sleeves are manufactured according to the EN13414 standard.

Single leg wire rope slings commonly have an mechanical splice / flemish eye on both ends of the sling.

This configuration is a versatile option for lifting in a vertical lift, basket lift or choker lift. Wire rope slings are constructed of strong high quality steel that is resistant to corrosion, heat, sunlight, and most chemicals.

Our wire rope slings are custom built to meet your specific needs for any application.

To Get A Quote >

Overview of CLGR® Single Leg Wire Rope Sling

Brand	CLGR®
Standard	EN13414
Material	Superior Mild Steel
Safety Factor	5:1
Size	6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 24mm 28mm, 32mm, 38mm, 40mm, 44mm, 52mm, 56mm, 64mm, 70mm
Country of Origin	China

Specifications of CLGR® Single Leg Wire Rope Sling

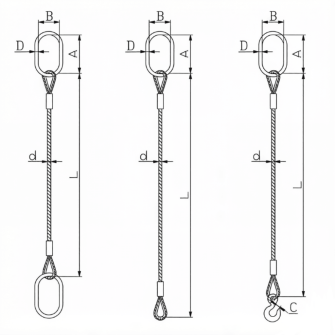

drawing-of-clgr®-single-leg-wire-rope-sling

Part No.	Rope dia. (mm)	WLL (KN)	Loop dimension AｘBｘC(mm)	Dimension of hook opening C(mm)
CR1LWRS06	6	2.90	110ｘ60ｘ14	24
CR1LWRS08	8	4.90	110ｘ60ｘ14	24
CR1LWRS10	10	7.90	110ｘ60ｘ14	24
CR1LWRS12	12	11.80	110ｘ60ｘ16	25
CR1LWRS14	14	15.70	110ｘ60ｘ16	27
CR1LWRS16	16	21.60	135ｘ75ｘ18	30
CR1LWRS18	18	26.50	135ｘ75ｘ18	38
CR1LWRS20	20	32.40	160ｘ90ｘ22	38
CR1LWRS24	24	49.00	160ｘ90ｘ22	38
CR1LWRS28	28	68.60	180ｘ100ｘ26	45
CR1LWRS32	32	88.30	200ｘ110ｘ32	61
CR1LWRS38	38	117.70	260ｘ140ｘ36	67
CR1LWRS40	40	132.40	260ｘ140ｘ36	67
CR1LWRS44	44	147.00	300ｘ160ｘ40	67
CR1LWRS8	52	216.00	350ｘ190ｘ50	87
CR-1-WRS52	56	257.00	350ｘ190ｘ50	87
CR1LWRS61	64	335.00	400ｘ200ｘ56	108
CR1LWRS70	70	400.00	400ｘ200ｘ56	108
