CLGR® Stainless Steel Lifting Eye Bolt DIN580 Type UNC Thread, also known as lifting eye, conforms to DIN 580, with UNC thread.
Made from marine grade stainless steel 304/316, cast and highly polished stainless finish, has highly corrosion resistance.
The Eyebolt is an approved and certified component specifically designed for lifting operations, with the versatility to be used in both axial and angular loading scenarios.
In terms of applications, it serves as a reliable connection point for a range of tasks including anchoring, rigging, pulling, lifting, and hoisting. It is compatible with ropes, cables, shackles, and hooks, and can be installed in multiple ways: it can be threaded into steel equipment, machines, and structures, or bolted through steel and timber profiles to meet diverse operational needs.
| Brand | CLGR® |
| Size | 3/16″, 1/4″, 5/16”, 3/8″, 1/2″, 5/8″, 3/4”, 1″, 1-3/16”, 1-7/16″ Eye bolt |
| Type | Eye Bolt |
| Material | Stainless Steel 304/316 |
| Standard | DIN 580 |
| Processing | Cast |
| Finish | Highly Polishing |

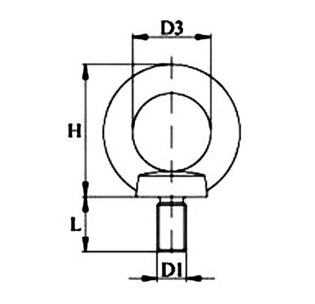

Part No. | D1 | D3 | H | L | Min.BL |
(Lbs) | |||||
CR-SS-EB-580-UNC-3/16 | 3/16″ | 0.590” | 0.984″ | 0,433″ | 750 |
CR-SS-EB-580-UNC-1/4 | 1/4″ | 0.630″ | 1.102″ | 0,433″ | 1370 |
CR-SS-EB-580-UNC-5/16 | 5/16″ | 0.787″ | 1.299″ | 0.512″ | 1810 |
CR-SS-EB-580-UNC-3/8 | 3/8″ | 0.984″ | 1.654″ | 0,669” | 2980 |
CR-SS-EB-580-UNC-1/2 | 1/2” | 1.181” | 2.008″ | 0.807″ | 4410 |
CR-SS-EB-580-UNC-5/8 | 5/8″ | 1.378″ | 2.362″ | 1.063” | 9100 |
CR-SS-EB-580-UNC-3/4 | 3/4″ | 1.575″ | 2.709″ | 1,181″ | 15590 |
CR-SS-EB-580-UNC-1/2 | 1″ | 1.969″ | 3.417″ | 1.417″ | 23380 |
CR-SS-EB-580-UNC-1-3/16 | 1-3/16″ | 2.362′ | 4.126″ | 1,772′ | 41570 |
CR-SS-EB-580-UNC-1-7/16 | 1-7/16″ | 2.756” | 4.827″ | 2,126” | 59760 |
