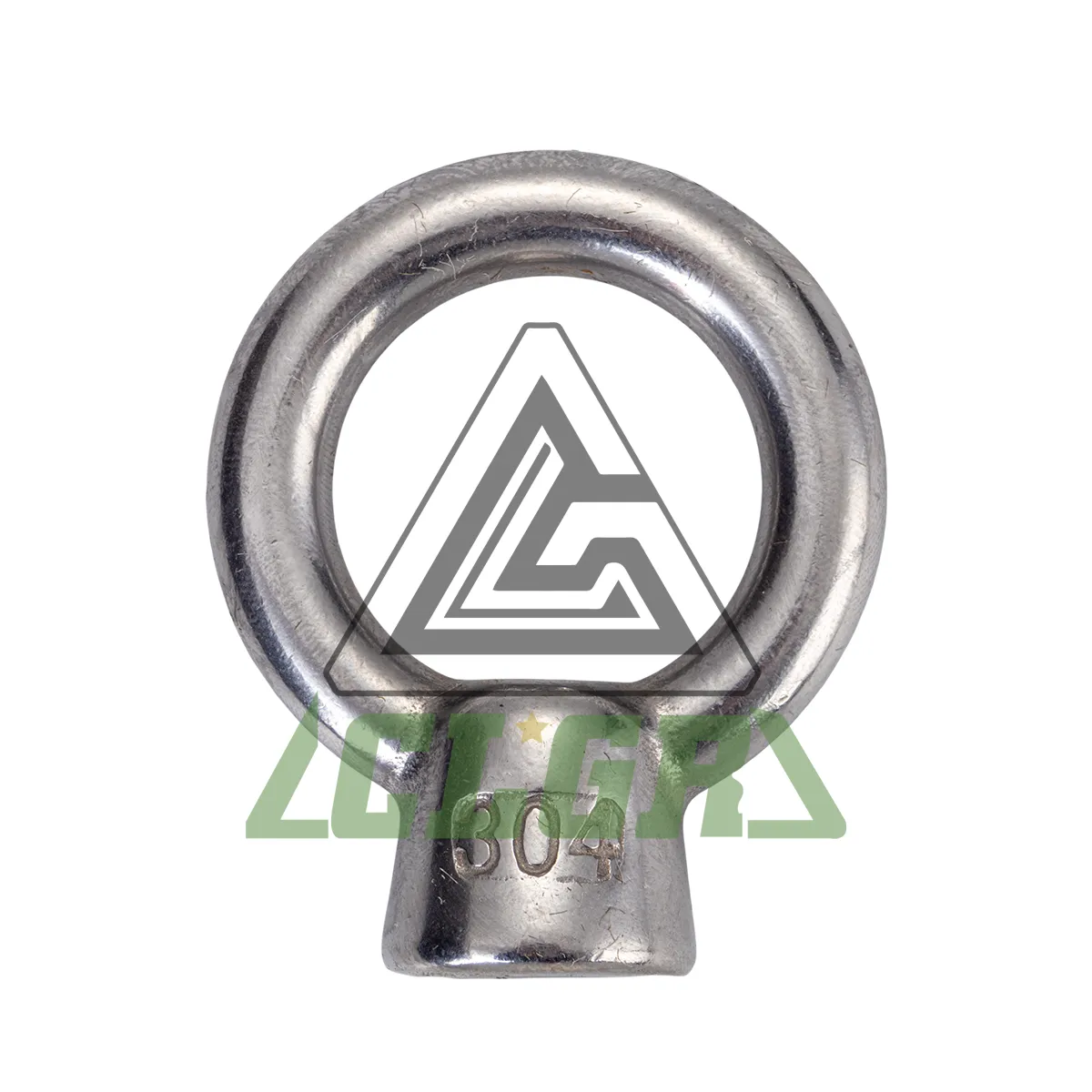

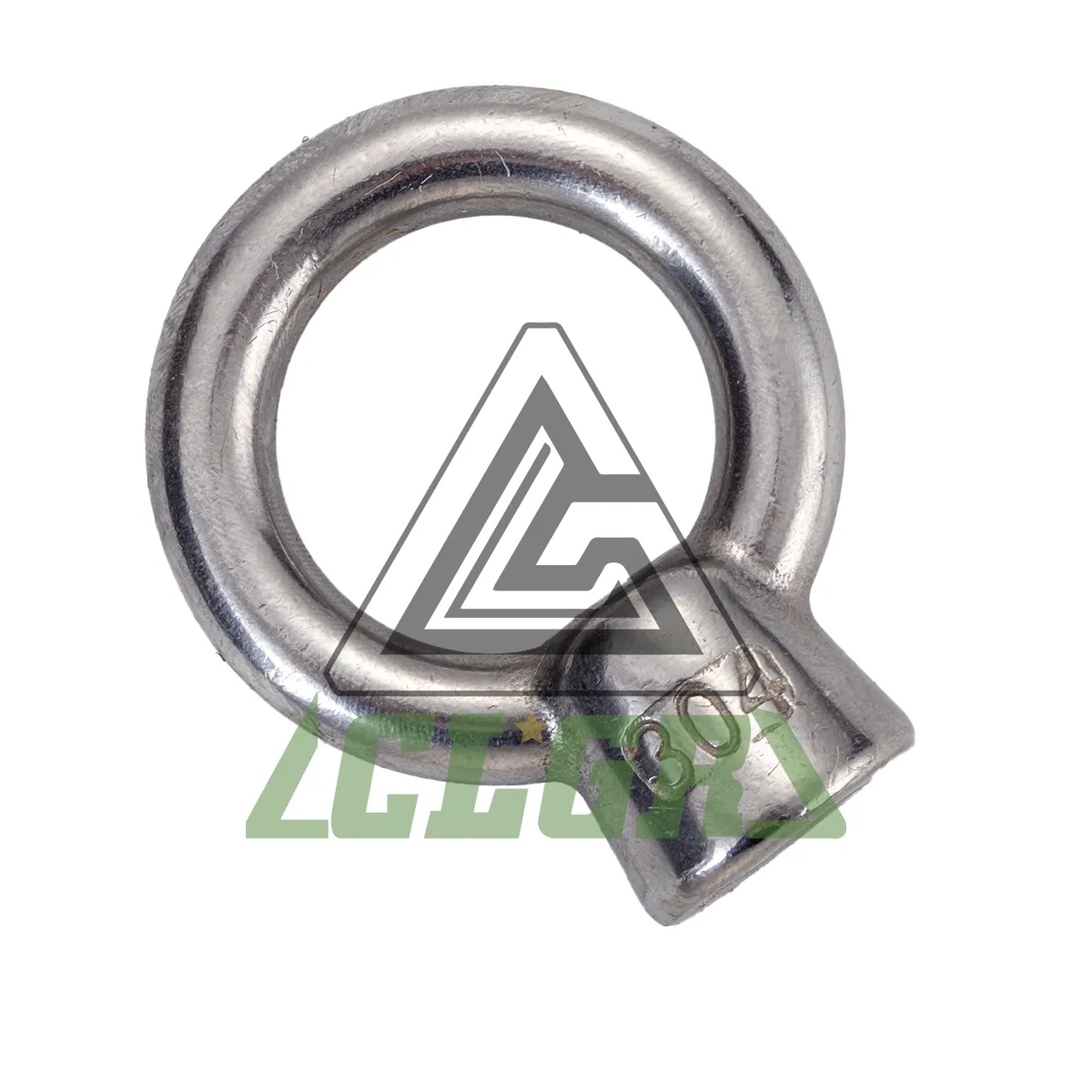

CLGR® Stainless Steel Eye Nut JIS 1169, also known as Lifting Eye Nut, JIS B 1169 Eye Nut, Eye Nut for Eye Bolt.
Precision cast from 316 stainless steel with a high-polished finish, this eye nut offers excellent corrosion resistance and durability for demanding marine and industrial environments.
The precision-engineered threading ensures smooth installation, while the secure eye loop design provides a reliable attachment point for rigging hardware, threaded rods, and anchor points.
The eye nut must be completely screwed into the mounting surface to ensure proper load transfer and safe operation.
Ideal for a wide range of applications, including shade structures, wire balustrades, architectural rigging, cable railing systems, sailboats, yachts, and marine installations. Its polished appearance combines strength with aesthetic appeal, making it suitable for both functional and visible installations.
Brand | CLGR® |
Standard | Eye Nut Conform To JIS 1169 Standard |
Material | AISI 304 or 316 Stainless Steel |
Processing | Precision Cast |
Finish | Highly Polishing |
Size | M6, M8, M10, M12, M16, M20 eye nut |
Note | Never to be used for overhead lifting |
Country of Origin | China |
Part No. | D1 | B | H | Min.BL |
(mm) | (mm) | (KN) | ||
CRSS116906 | M6 | 15 | 29 | 8.2 |
CRSS116908 | M8 | 20 | 38.5 | 14.5 |
CRSS116910 | M10 | 25 | 47.5 | 22.6 |
CRSS116912 | NI12 | 30 | 60 | 32.6 |
CRSS116916 | M16 | 35 | 70 | 57.9 |
CRSS116920 | M20 | 40 | 85 | 90.4 |
