CLGR® Stainless Steel DIN 444 Swing Bolts Eye Bolts

Name: CLGR® Stainless Steel DIN 444 Swing Bolts Eye Bolts
Brand: CLGR®

CLGR® Stainless Steel DIN 444 Swing Bolts Eye Bolts, also known as DIN 444 Ring Bolt.

Our DIN 444 Eye Swing Bolts are made of stainless steel 304 or 316 with a polishing finish, conforming to DIN 444 standards and available in sizes from M5 to M39 with right-hand metric coarse threads. It offers high strength and excellent corrosion resistance for demanding environments.

These swing eye bolts provide reliable lifting points for marine applications such as ship deck rigging and port equipment handling.

They are also ideal for industrial and construction sectors, including machinery installation, warehouse lifting systems, and structural component positioning.

The swing eye design allows for 360-degree rotation to prevent cable twisting during load handling.

Avaliable size: M5, M6, M8, M10, M12, M16, M20, M24, M27, M30, M33, M36, M39. Custom sizes and stainless steel options are available for specific project requirements.

To Get A Quote >

clgr stainless steel din 444 swing bolts eye bolts china factory

clgr stainless steel din 444 swing bolts eye bolts china manufacturer

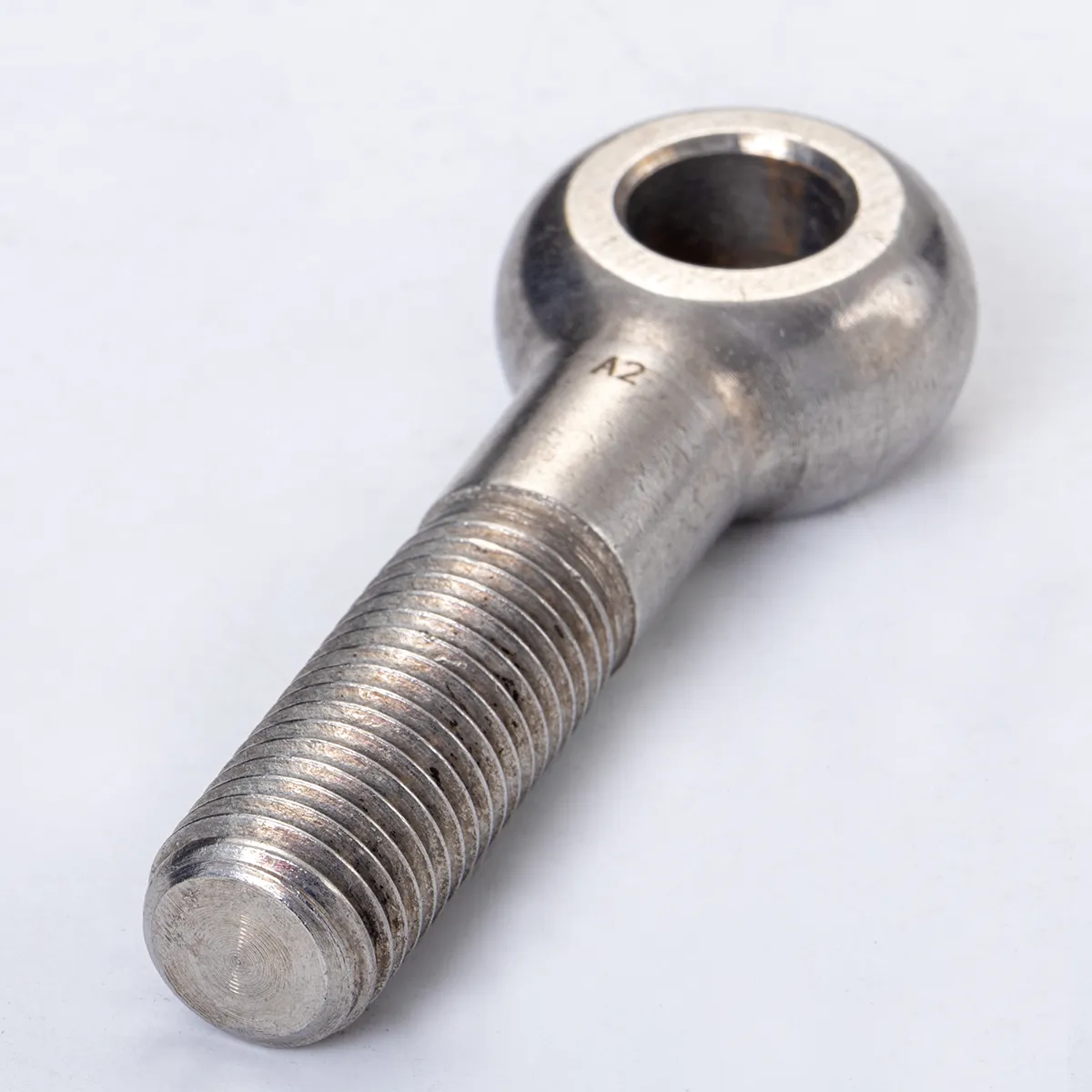

clgr stainless steel din 444 swing bolts eye bolts china

 

Overview of Stainless Steel DIN 444 Swing Bolts Eye Bolts

Brand	CLGR®
Standard	Eye Swing Bolt Conform to DIN444
Material	Stainless Steel AISI 304/316
Processing	Forged and Full Machining
Finish	Highly Polished
Size	M5, M6, M8, M10, M12, M16, M20, M24, M27, M30, M33, M36, M39
Tips	Right handed metric coarse thread.
Country of Origin	China

Specification of Stainless Steel DIN 444 Swing Bolts Eye Bolts

drawing-stainless-steel-din-444-swing-bolts-eye-bolts-china-supplier

Part No.	SIZE	d	P	b			d1		dk				s
Part No.	SIZE	d	Pitch	L≤125	125＜L≤200	L＞200	Max.	Min.	A type Max.	A type Min.,	B&C type Max.	B&C type Min.	A type Max.	A type Min.	B&C type Max.	B&C type Min.
CRSS444M5	M5		0.8	16	/	/	5.03	5	12	10.9	12	11.57	8	7.52	6	5.88
CRSS444M6	M6		1	18	/	/	6.03	6	14	12.9	14	13.57	9	8.52	7	6.85
CRSS444M8	M8		1.25	22	28	/	8.036	8	18	16.9	18	17.57	11	10.3	9	8.85
CRSS444M10	M10		1.5	26	32	/	10.036	10	20	18.7	20	19.48	14	13.3	12	11.82
CRSS444M12	M12		1.75	30	36	49	12.043	12	25	23.7	25	24.48	17	16.3	14	13.82
CRSS444M16	M16		2	38	44	57	16.043	16	32	30.4	32	31.38	19	18.16	17	16.82
CRSS444M20	M20		2.5	46	52	65	18.043	18	40	38.4	40	39.38	24	23.16	22	21.79
CRSS444M24	M24		3	54	60	73	22.052	22	45	43.4	45	44.38	28	27.16	25	24.79
CRSS444M27-1	M27		3	60	66	79	24.052	24	50	48.4	50	49.38	30	29.16	27	26.79
CRSS444M27-2	M27		3	60	66	79	25.052	25	50	48.4	50	49.38	30	29.16	27	26.79
CRSS444M30-1	M30		3.5	66	72	85	27.052	27	55	53.1	55	54.26	34	33	30	29.79
CRSS444M30-2	M30		3.5	66	72	85	28.052	28	55	53.1	55	54.26	34	33	30	29.79
CRSS444M33	(M33)		3.5	/	78	91	30.052	30	60	58.1	60	59.26	38	37	34	33.75
CRSS444M36-1	M36		4	/	84	97	32.062	32	65	63.1	65	64.26	41	40	38	37.75
CRSS444M36-2	M36		4	/	84	97	33.062	33	65	63.1	65	64.26	41	40	38	37.75
CRSS444M39-1	(M39)		4	/	90	103	35.062	35	70	68.1	70	69.26	46	45	41	40.75
CRSS444M39-2	(M39)		4	/	90	103	36.062	36	70	68.1	70	69.26	46	45	41	40.75
