CLGR® Stainless Steel Lag Screw Eye Bolt

Name: CLGR® Stainless Steel Lag Screw Eye Bolt
Brand: CLGR®

CLGR® Stainless Steel Lag Screw Eye Bolt, also known as Eye Head Lag Screws, Lag Screw with Eye, and Stainless Steel lag Screw Lifting Eyebolts Eye Bolt, is a heavy-duty fastener designed for creating secure anchor points in wood, timber, and other soft materials.

Manufactured from stainless steel AISI 304 or 316 with a sharp lag thread, this screw eye bolts securely into place with a wrench or socket driver. The eye end at the opposite end provides a durable attachment point for cables, ropes, wire balustrading, and rigging lines. The lag thread design ensures strong holding power and resists pull-out under tension.

Typical applications include wire balustrading, gate anchoring, dock mooring, and outdoor structural tie-downs. The stainless steel construction offers excellent corrosion resistance for long-term outdoor exposure.

Available in a range of sizes with custom specifications available upon request. Contact us.

To Get A Quote >

Overview of Stainless Steel Lag Screw Eye Bolt

Brand	CLGR®
Material	Stainless steel AISI 304 / 316 Lag Eye Screw
Processing	Hot Upsetting
Finish	High Polished
Size	6mm, 8mm, 10mm, 12mm
Country of Origin	China

Specification of Stainless Steel Lag Screw Eye Bolt

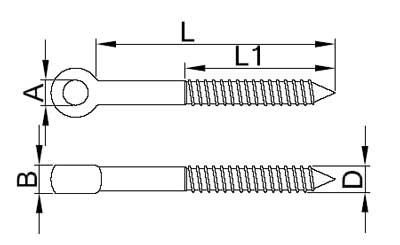

Part No.	D	A	B	L	L1
Part No.	mm
CRSSLSE0640	6	6.3	7	40	30
CRSSLSE0650	6	6.3	7	50	35
CRSSLSE0660	6	6.3	7	60	40
CRSSLSE0860	8	8.4	9	60	40
CRSSLSE0880	8	8.4	9	80	55
CRSSLSE0810	8	8.4	9	100	65
CRSSLSE1080	10	10.2	11	80	55
CRSSLSE1010	10	10.2	11	100	65
CRSSLSE1012	10	10.2	11	120	80
CRSSLSE1210	12	12.1	13	100	65
CRSSLSE1212	12	12.1	13	120	80
