The Grade 80 2 Inch Ratchet Load Binder with Safety Hook, also known as G80 L/binder Ratchet Wing Grab Hook, and Grade 80 Ratchet Load Binder, G80 Ratchet Binder, Chain Ratchet Tensioner.
Drop forged, quenched and tempered, which make the grade 80 ratchet binder long lever with safety hook strong and durable.
The Grade 80 Ratchet Load Binder is equipped with safety pins on both hooks, ensuring secure operation in load securing tasks. As an EN12195-3 compliant chain ratchet load binder, it features reinforced hooks, effectively preventing accidental slippage of the chain from the hooks. This reliable tool pairs ideally with premium Grade 80 lashing chains.
Intended for tensioning lashing chains in order to securely restrain cargo usually used by lorry and truck drivers in the world of low loaders and heavy haulage. Our high quality cast steel chain binders are made from cast steel and fitted with reinforced drop forged grab hooks to work with chain sized between 8 and 16mm (depending on the model you select).
Brand | CLGR® |
Technical Notes | European Type (EN12195-3) |
Material | Super Alloy Steel |
Lever Type | Long Lever |
Safety Factor | MBL equals 2 x Lashing capacity. |
Processing | Drop forged, quenched and tempered. |
Finish | Powder Coated |
Size | 8mm, 10mm, 13mm |
Tips | Color Code: Customized according to customers' requirements |
Certification | Test certificates can be supplied upon request. |
Note | NOT FOR LIFTING, ONLY FOR LASHING. |

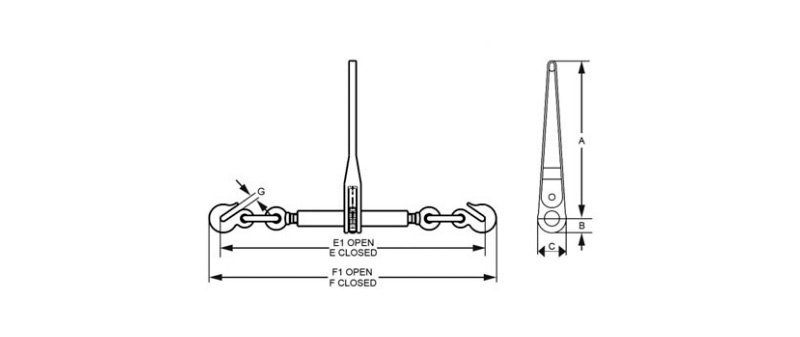

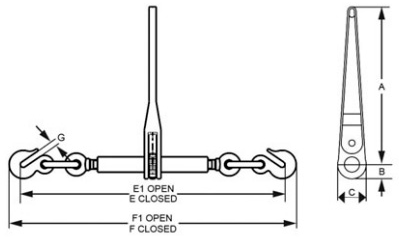

Part no. | Chain size (mm) | A (mm) | B (mm) | E Open (mm) | E1 Closed (mm) | Take-up (mm) | Lashing capacity (ton) | Proof load (ton) | Minimum breaking load (ton) | Weight (kg) |
80CRRLBSH08 | 8 | 387 | 11 | 754 | 590 | 164 | 4.0 | 5.0 | 8.0 | 4.5 |
80CRRLBSH10 | 10 | 387 | 12 | 775 | 610 | 165 | 6.3 | 7.9 | 12.6 | 5.4 |
80CRRLBSH13-16 | 13 | 387 | 15 | 870 | 700 | 170 | 10.0 | 12.5 | 21.2 | 7.7 |
