CLGR® Wire Rope Sling 2-Leg - The China Manufacturer, Factory

Name: CLGR® Wire Rope Sling 2-Leg - The China Manufacturer, Factory
Brand: CLGR®

CLGR® Wire Rope Sling 2-leg, also known as Wire Sling - Two Leg, Double Leg Wire Rope Slings, Sign Hanging 2 Leg Wire Sling.

Double leg wire rope slings typically feature a mechanical splice or flemish eyes at the end of the body. They consist of 2 wire rope assemblies connected to an oblong master link.

The lifting ends of the wire rope legs can be equipped with various hooks, eyes, or rings, enabling attachment to any object.

Designed for general lifting when direct attachment to the load is possible, these slings are made of strong, high - quality steel. This steel resists corrosion, heat, sunlight, and most chemicals.

Thimbles enhance sling longevity by protecting the wire rope at connection points. The steel wire rope sling with 2 soft eyelets serves as an ideal solution for hanging signs.

To Get A Quote >

CLGR® Wire Rope Sling 2-Leg - The China Manufacturer, Factory Manufacturers

CLGR® Wire Rope Sling 2-Leg - The China Manufacturer, Factory Suppliers

CLGR® Wire Rope Sling 2-Leg - The China Manufacturer, Factory Factory

CLGR® Wire Rope Sling 2-Leg - The China Manufacturer, Factory Exporter

CLGR® Wire Rope Sling 2-Leg - The China Manufacturer, Factory China

 

Overview of CLGR® Wire Rope Sling 2-Leg

Standard	EN13414
Material	Superior Mild Steel
Safety Factor	5:1
Number of Legs	2
Size	6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 24mm 28mm, 32mm, 38mm, 40mm, 44mm, 52mm, 56mm, 64mm, 70mm

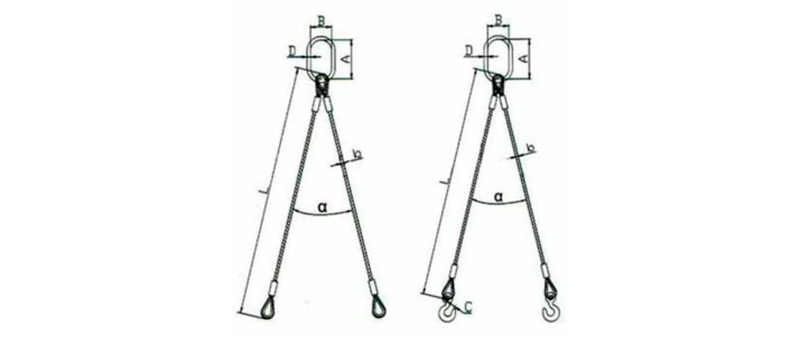

Specifications of CLGR® Wire Rope Sling 2-Leg

Part No.	Rope dia. (mm)	WLL(KN)（α≤90o）	WLL(KN)（90o≤α≤120o）	Loop dimension（A×B×D(mm)）	Dimension of hook opening C(mm)
CR-2-WRS-06	6	4.10	2.90	110×60×14	24
CR-2-WRS-08	8	6.90	4.90	110×60×14	24
CR-2-WRS-10	10	11.00	7.90	110×60×16	25
CR-2-WRS-12	12	16.50	11.80	110×60×16	25
CR-2-WRS-14	14	22.00	15.70	135×75×18	27
CR-2-WRS-16	16	30.00	21.60	135×75×18	30
CR-2-WRS-18	18	37.00	26.50	160×90×22	38
CR-2-WRS-20	20	45.00	32.40	160×90×22	38
CR-2-WRS-24	24	68.60	49.00	180×100×26	45
CR-2-WRS-28	28	96.00	68.60	200×110×32	61
CR-2-WRS-32	32	123.60	88.30	260×140×36	66
CR-2-WRS-38	38	165.00	117.70	300×160×40	87
CR-2-WRS-40	40	185.00	132.40	340×180×45	87
CR-2-WRS-44	44	206.00	147.00	340×180×45	87
CR-2-WRS-52	52	302.40	216.00	350×190×50	102
CR-2-WRS-56	56	359.80	257.00	400×200×56	107
CR-2-WRS-64	64	469.00	335.00	430×220×63	121
CR-2-WRS-70	70	560.00	400.00	460×250×72	146
