The Grade 70 Ratchet Load Binder, also known as Chain Ratchet Tensioner, Ratchet Type Load Binder, Ratchet load binder without links and hooks, or Ratchet Binder G70.
This G70 Ratchet Load Binder employs a screw or rotating motion for tightening and securing loads. While it tightens at a slower pace, it offers greater ease of operation compared to lever-type load binders. Remarkably, it doesn't need a handle to lock in position to keep the binder tightened.
The handle is ingeniously designed with a self-locking, open pawl, which facilitates the effortless removal of unwanted debris like mud, snow, or ice. It undergoes proof testing to 50% of the minimum breaking strength, and its gears are permanently welded to the barrel. Additionally, it features a durable powder-coated finish.
.webp "CLGR® G70 Ratchet Load Binder US.Fed.Spec (without Links and Hooks)")
Brand | CLGR® |
Technical Notes | U.S. Federal Specification (Meets D.O.T. Specs.) |
Material | Super Alloy Steel |
Safety Factor | 3.5: 1 |
Processing | Drop Forged / Machining |
Finish | Powder Coated |
Size | 5/16”-3/8”, 3/8”-1/2”, 1/2”-5/8” |
Tips | Color Code: Customized according to customers' requirements |
Note | NOT FOR LIFTING, ONLY FOR LASHING. |

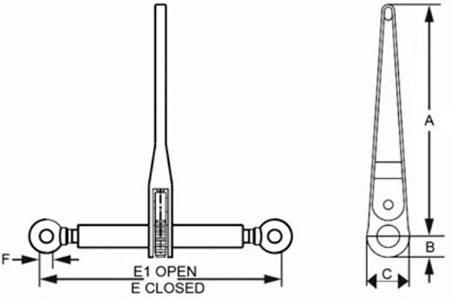

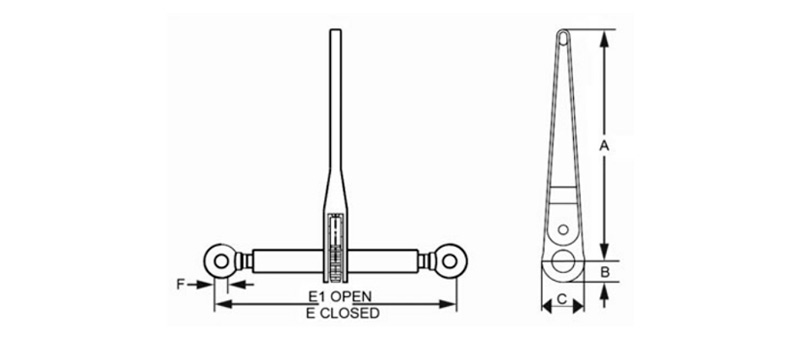

Part No. | Min-Max Chain size (in.) | Working Load (lbs.) | Proof Load | Ultimate Load | Weight Each | Handle Length (in.) | Dimensions (in.) | ||||
A | B | C | E | E1 | |||||||
7CRRCBEEUS01 | 5/16-3/8 | 5400 | 10822 | 19000 | 7.8 | 13.42 | 13.92 | 1.3 | 2.6 | 13.7 | 21.7 |
7CRRCBEEUS02 | 3/8-1/2 | 9200 | 18400 | 33000 | 7.8 | 13.92 | 13.92 | 1.3 | 2.6 | 13.7 | 21.7 |
