CLGR® Grade 80 Chain Connectors Color Zinc Plating European Type, also known as G80 Coupling Links, Grade 80 Connecting Links, G80 Component Connectors.
The G80 Connecting Link with Stright Pin for fishing ensures easy and stable assembly, designed to connect hooks and other fittings to Grade 80 alloy steel chains.
Crafted from super alloy steel with a galvanized surface finish, the G80 chain connectors are specifically designed for the fishing and trawl industries, offering exceptional strength and corrosion resistance.
This CLGR® G80 connecting links adopts the design of a smooth pin and single steel sleeve. After installation, the pin fits closely with the loop, and the contact surface is evenly stressed, resulting in strong connection firmness.
The G80 Connecting Link is available in sizes ranging from 7/8mm to 32mm.
Brand | CLGR® |
Size | 7mm, 10mm, 13mm, 16mm, 19mm, 23mm, 26mm, 32mm |
Material | Superior Alloy Steel |
Safety Factor | 4: 1 |
Processing | Drop Forged / Heat Treatment |
Surface Finish | Galvanized |
Note | Special specifications and marks can be made according to customer requirements. |

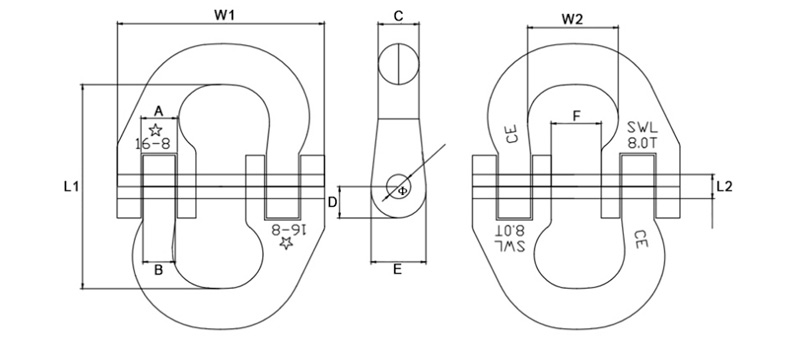

| Part No. | Size | W.L.L. | A | B | C | D | E | F | ∅ |
| (t) | |||||||||
| CRCCZP16 | 16 | 8 | 18.5 | 16.5 | 20.8 | 16 | 28 | 25 | 12.3 |
