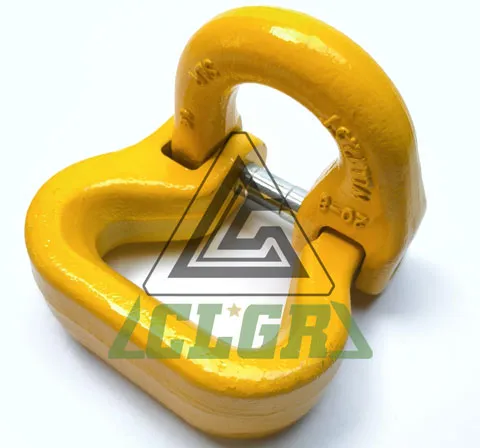

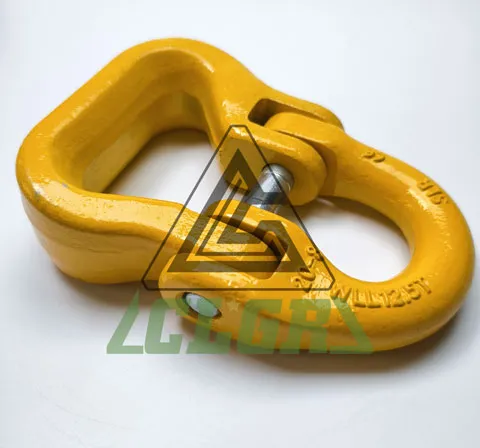

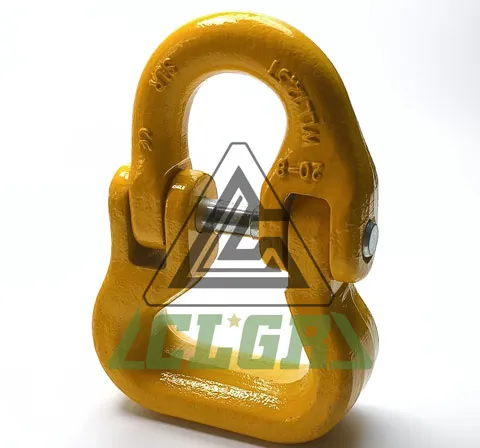

G80 Webbing Sling Connector- CL Type, also known as Synthetic Sling Connector, Web / Round Sling Coupling Link, Grade 80 Fiber sling connection link, G80 Wide Body Connectors, Connecting Link for Webbing Sling and Grade 80 hammerlock connecting link for flat webbing.
It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated. It can be matched with web sling, G80 chains and which can meet the standard EN818-2.
These webbing sling connectors enable users to configure customized synthetic sling assemblies, including bridle slings and specialized configurations. Featuring an extra-wide body design, the connectors accommodate various sling types such as web slings, round slings, and Twin-Path slings for versatile lifting solutions.
Brand | CLGR® |
Size | 6mm, 7/8mm, 10mm, 13mm, 16mm, 20mm, 22mm, 26mm |
Material | Superior Alloy Steel |
Safety Factor | 4: 1 |
Processing | Drop Forged / Heat Treatment |
Surface Finish | Powder Coating |
Note | Special specifications and marks can be made according to customer requirements. |

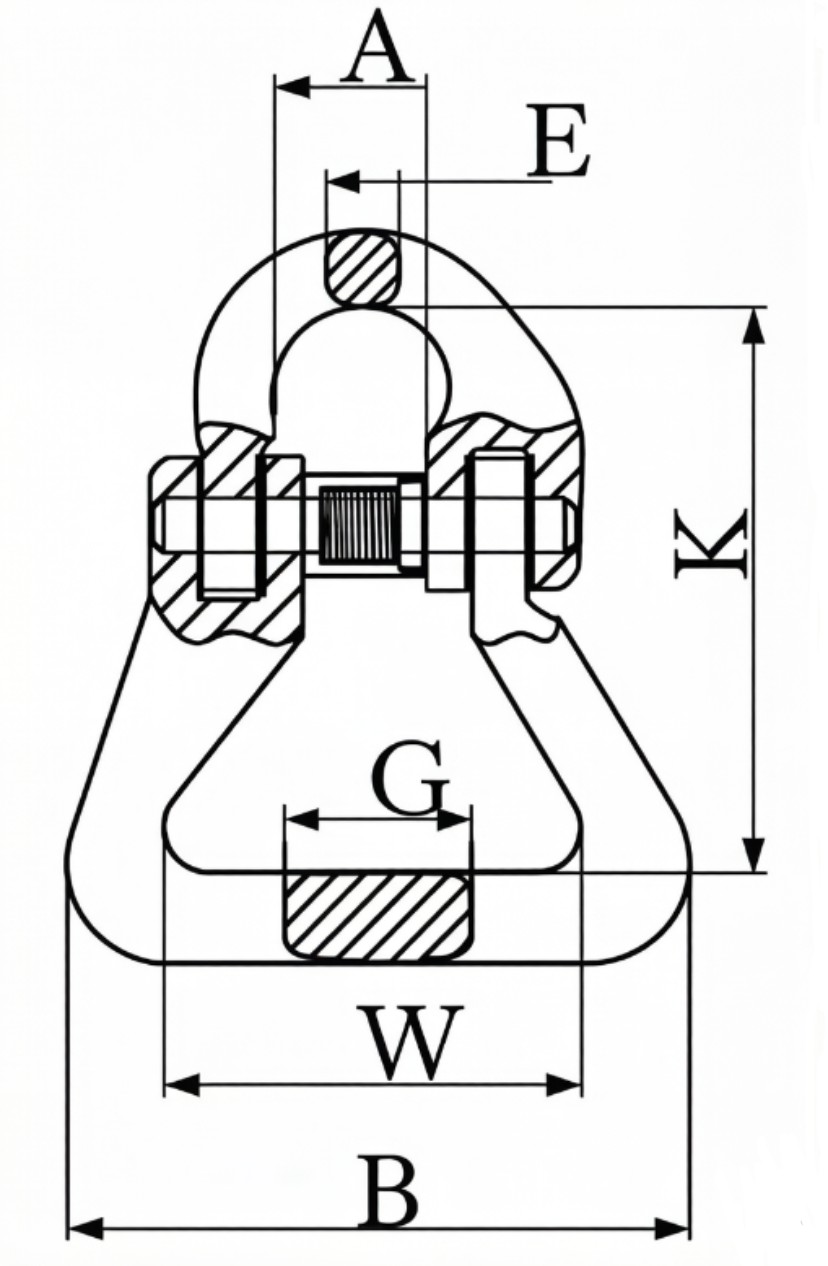

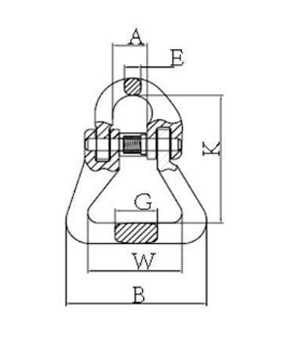

Part No. | Weight (kg) | WLL(t) | B / L(t) | A±1.5 | B±2 | K±2 | W±2 | G±1 | E±1 |
8-CL-06 | 0.2 | 1.12 | 4.48 | 15 | 60 | 56 | 40 | 18 | 7 |
8-CL-7/8 | 0.3 | 2.0 | 8.0 | 20 | 61.5 | 63.7 | 40 | 24 | 9.5 |
8-CL-10 | 0.68 | 3.15 | 12.6 | 24 | 66 | 83 | 39 | 30.5 | 11 |
8-CL-13 | 1.47 | 2.3 | 21.2 | 28 | 88 | 93.7 | 55 | 36.8 | 16.5 |
8-CL-16 | 2.3 | 8 | 32 | 34.5 | 108 | 120 | 65.5 | 45.2 | 19.8 |
8-CL-20 | 3.3 | 12.5 | 50 | 41 | 129 | 138 | 80 | 51.8 | 23 |
8-CL-22 | 6.89 | 15 | 60 | 50 | 191 | 180 | 126 | 70 | 26 |
8-CL-26 | 10.62 | 21.2 | 84.8 | 58 | 228.4 | 209.5 | 152 | 86 | 30 |
