CLGR® G80 Chain Connectors CO European Type (Single Steel Sleeve, Recessed Pin)

Name: CLGR® G80 Chain Connectors CO European Type (Single Steel Sleeve, Recessed Pin)
Brand: CLGR®

The G80 Chain Connectors CO European Type, also known as Grade 80 Coupling Link, G80 hammerlock connecting link and G80 Component Connectors.

The G80 Connecting Links enable quick and effortless assembly without special tools. The G80 Connecting Links are engineered for connecting hooks, master links, and other fittings to Grade 80 alloy steel chains.

The single steel sleeve of the G80 chain connector enhances the structural strength, wear resistance, and anti leakage sealing performance, and works together with the recessed design to improve the safety and durability of the chain connection.

Our Grade 80 chain connectors are produced according to the most stringent quality control standards.

The CLGR® G80 coupling link features high strength, low weight, and durability for easy and safe handling. It comes in sizes ranging from 6 mm to 32mm.

To Get A Quote >

CLGR® G80 Chain Connectors European Type Wholesale Manufacturers

CLGR® G80 Chain Connectors European Type Cost

CLGR® G80 Chain Connectors European Type Company

CLGR® G80 Chain Connectors European Type Price

CLGR® G80 Chain Connectors European Type for Sale

CLGR® G80 Chain Connectors European Type China

CLGR® G80 Chain Connectors European Type Exporter

CLGR® G80 Chain Connectors European Type Factory

CLGR® G80 Chain Connectors European Type Suppliers

 

Overview of CLGR® G80 Chain Connectors CO European Type (Single Steel Sleeve, Recessed Pin)

Brand	CLGR®
Size	6mm, 7mm, 7/8mm, 8mm, 10mm, 13mm, 16mm, 18mm, 20mm, 22mm, 26mm, 32mm
Material	Superior Alloy Steel
Standard	European Type
Safety Factor	4: 1
Processing	Drop Forged / Heat Treatment
Surface Finish	Powder Coating
Note	Special specifications and marks can be made according to customer requirements.

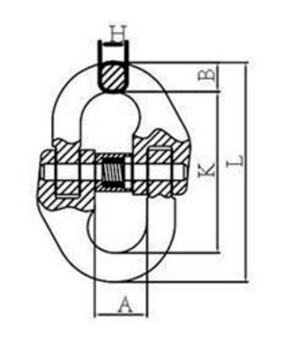

Specifications of CLGR® G80 Chain Connectors CO European Type (Single Steel Sleeve, Recessed Pin)

Specifications of CLGR® G80 Chain Connectors European Type (Double steel sleeve, Recessed Pin)

Part No.	Size	Weight (kg)	W.L.L. (t)	B.L. (t)	A±1.5	B±1	L±2.5	K±2	H±1
8CRCEU6	6	0.08	1.12	4.48	15	7.5	58	42	7
8CRCEU7	7	0.145	1.5	6	19	8.5	71.8	54.8	8.5
8CRCEU7/8	7-8	0.146	2	8	18	9.5	79.5	60.5	8.5
8CRCEU8	8	0.16	2	8	19.5	9.5	79.5	60.5	8.5
8CRCEU10	10	0.30	3.15	12.6	25	12	90.5	68	11.5
8CRCEU13	13	0.65	5.3	21.2	29	15	117	87	15
8CRCEU16	16	1.15	8	32	34.5	19.8	148	108.4	19.8
8CRCEU18	18	1.84	10	40	38	21	154	112	21
8CRCEU20	20	2.1	12.5	50	41	24	169.5	121.5	24
8CRCEU22	22	2.87	15	60	48	26	193.5	141.5	26
8CRCEU26	26	4.5	21.2	84.8	57.5	31	220	158	30
8CRCEU32	32	8.21	31.5	126	67	38	281	205	37

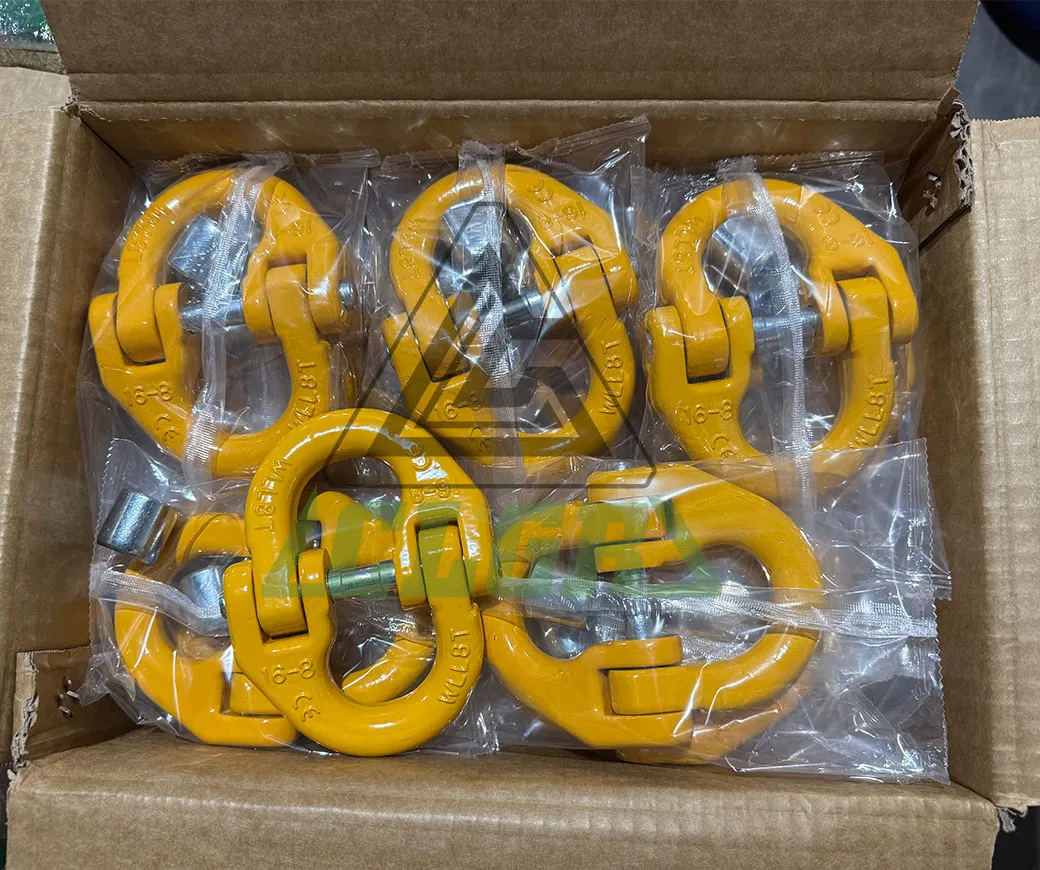

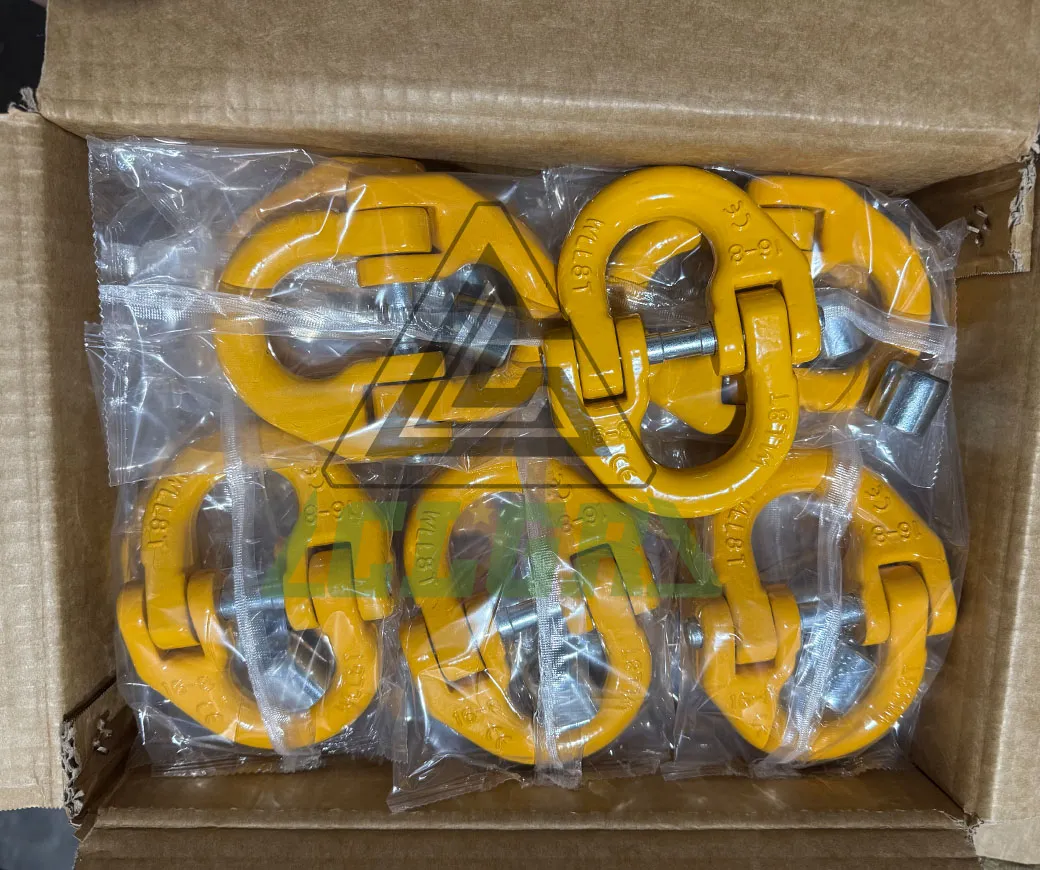

Bulk Products Photos of G80 Chain Connectors CO European Type
