Grade 80 Alloy Short Link Lifting Chains EN818-2 are heat-treated and tempered for superior durability and impact resistance, making them perfect for chain slings and rigging systems.
Sourced from reputable lifting chain manufacturers, Grade 80 Alloy Short Link Lifting Chains can be paired with hooks, shackles, lifting rings, and coupling links for versatile use. Always check the working load limit (WLL) to prevent overloading and ensure safe operation.
Ideal for use with hoists and complete rigging setups, Grade 80 Alloy Short Link Lifting Chains from CLGR® provide a robust and secure lifting solution. Choose the right configuration based on your load requirements for optimal safety and efficiency.
Brand | CLGR® |
Size | 6mm, 7mm, 8mm, 10mm, 13mm, 16mm, 19mm, 22mm, 26mm, 32mm |
Material | Super Alloy Steel |
Standard | European Type (EN818-2) |
Safety Factor | 4: 1 |
Processing | Welded |
Surface Finish | Powder Coating |
Tips | Color Code: Customized according to customers' requirements |

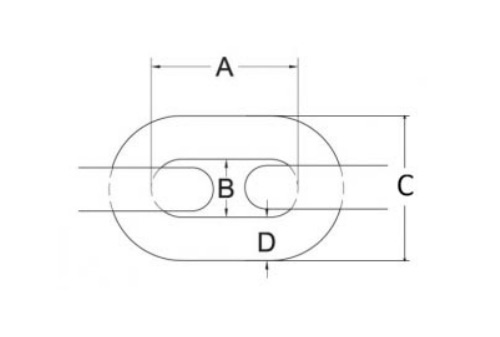

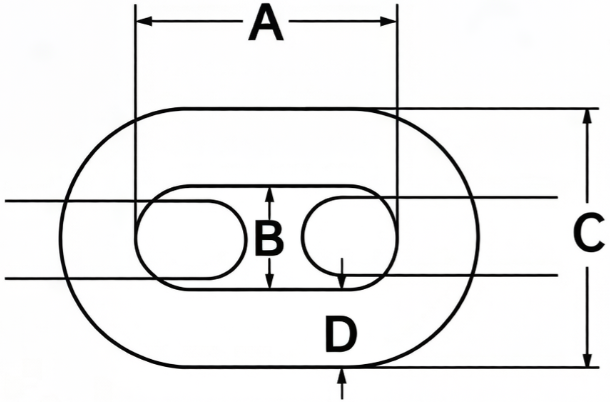

Part No. | Size (mm) | WLL (T) | B.L. (T) | A (mm) | B min (mm) | C max (mm) |
8CR8182C06 | 6±0.24 | 1.12 | 4.48 | 18±0.5 | 7.8 | 22.2 |
8CR8182C07 | 7±0.28 | 1.5 | 6 | 21±0.6 | 9.1 | 25.9 |
8CR8182C08 | 8±0.32 | 2 | 8 | 24±0.7 | 10.4 | 29.6 |
8CR8182C10 | 10±0.4 | 3.15 | 12.6 | 30±0.9 | 13 | 37 |
8CR8182C13 | 13±0.52 | 5.3 | 21.2 | 39±1.2 | 16.9 | 48.1 |
8CR8182C16 | 16±0.64 | 8 | 32 | 48±1.4 | 20.8 | 59.2 |
8CR8182C18 | 18±0.90 | 10 | 40 | 54±1.6 | 23.4 | 66.6 |
8CR8182C20 | 20±1.00 | 12.5 | 50 | 60±1.8 | 26 | 74 |
