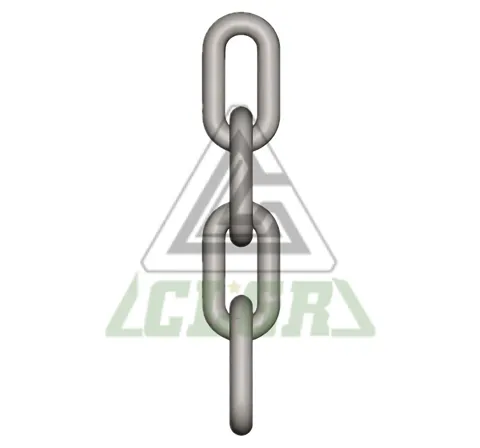

CLGR® Grade 95 Fishing Chains Alloy Long/Mid/Short Link Galvanized

Name: CLGR® Grade 95 Fishing Chains Alloy Long/Mid/Short Link Galvanized
Brand: CLGR®

CLGR® G95 Fishing Chains Long/Mid/Short Link, made with a superior alloy steel, is quenched and tempered to G95 values to minimize the risk of hydrogen embrittlement. The anchor chain for sale from CLGR® is specially designed for fishing trawlers, but unsuitable for lifting applications.

Please email CLGR®, one of the leading galvanized chain suppliers, if you need product advice, have any questions or looking to buy a large quantity or different variation.

To Get A Quote >

Overview of CLGR® Grade 95 Fishing Chains Alloy Long/Mid/Short Link Galvanized

Brand	CLGR®
Size	Short link chain: 10mm, 13mm, 16mm, 19mm Mid link chain: 10mm, 13mm, 16mm, 19mm, 22mm, 26mm Long link chain: 9mm, 11mm, 13mm, 16mm, 19mm, 22mm, 28mm
Material	Superior Alloy Steel
Processing	Welded
Surface Finish	Hot Dipped Galvanized
Note	NOT FOR OVERLOAD LIFTING

Specifications of CLGR® Grade 95 Fishing Chains Alloy Long/Mid/Short Link Galvanized

Part No.	Kinds of Chain	Dia. mm.	Inside length mm.	Inside width mm. min.	Weight/Kg.	Breaking Load (t)
95CRFC10SL	Short Link Chain	10	30	14	2.2	15.5
95CRFC13SL		13	39	17	3.8	26.5
95CRFC16SL		16	48	22.4	5.63	41
95CRFC19SL		19	57	27.8	7.99	57
95CRFC10ML	Mid Link Chain	10	40	15	1.85	15.5
95CRFC13ML		13	52	19.5	3.36	26.5
95CRFC16ML		16	95	24	5.06	41
95CRFC19ML		19	76	28.5	7.15	57
95CRFC22ML		22	88	27	9.45	70
95CRFC26ML		26	92	31	13.63	95
95CRFC09LL	Long Link Chain	9	53	15	1.45	12.5
95CRFC11LL		11	63	18	2.16	18.5
95CRFC13LL		13	80	22	2.93	26.5
95CRFC16LL		16	100	26	4.42	40
95CRFC19LL		19	100	27	6.45	57
95CRFC22LL		22	120	32	8.75	70
95CRFC28LL		28	150	44	14.3	105
