This G100 Alloy Lifting Chains Short Link is manufactured from alloy steel through special analysis, with a black power coating finish. This G100 Alloy Lifting Chains Short Link is perfectly suitable for overhead lifting applications, featuring a high strength-to-weight ratio. Before proof testing, these chain links for sale undergoes quenching and tempering processes to enhance its properties.
This CLGR® G100 Alloy Lifting Chains Short Link is designed for overhead lifting and is also ideal for commercial fishing and aquaculture. These chain links for sale are thru-hardened to maximize resistance to distortion, gouging, and wear while remaining ductile for excellent elongation. Each link is calibrated and pull-tested to 2½ times the working load limit.
Compared to the same size Grade 80 chain, Grade 100 provides 25% higher lifting capacity. It is recommended to only use Grade 100 chain with Grade 100 components.
Brand | CLGR® |
Size | 6mm, 7mm, 8mm, 10mm, 13mm, 16mm, 19mm, 22mm, 26mm, 32mm |
Material | Super Alloy Steel |
Standard | European Type (EN818-2) |
Safety Factor | 4: 1 |
Processing | Welded |
Surface Finish | Powder Coating Black |
Tips | Color Code: Customized according to customers' requirements |

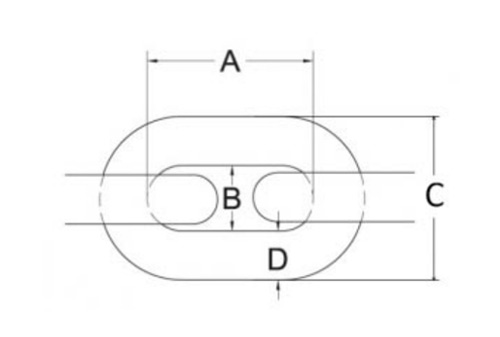

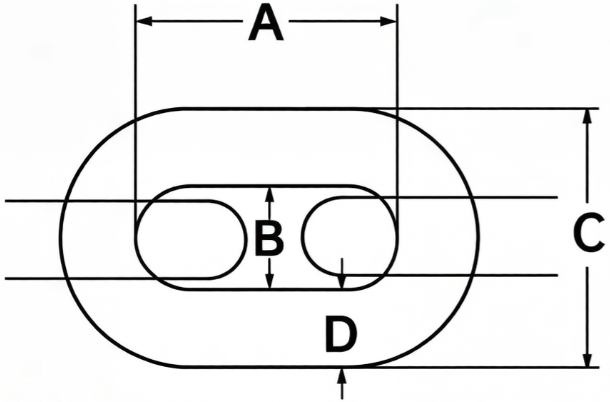

Part No. | Size (mm) | WLL (T) | B. L. (T) | A (mm) | B min (mm) | C max (mm) | Weight/m (KGS) |
10CR8182C06 | 6±0.24 | 1.4 | 5.6 | 18±0.5 | 8.7 | 21.6 | 0.96 |
10CR8182C07 | 7±0.28 | 1.9 | 7.6 | 21±0.6 | 9.5 | 25.2 | 1.26 |
10CR8182C08 | 8±0.32 | 2.5 | 10 | 24±0.7 | 11 | 28.8 | 1.57 |
10CR8182C10 | 10±0.40 | 4 | 16 | 30±0.9 | 14 | 36 | 2.46 |
10CR8182C13 | 13±0.52 | 6.7 | 26.8 | 39±1.2 | 18 | 46.8 | 4.18 |
10CR8182C16 | 16±0.64 | 10 | 40 | 48±1.4 | 22 | 57.6 | 6.28 |
10CR8182C19 | 19±0.90 | 14 | 56 | 57±1.6 | 27 | 68.4 | 8.92 |
10CR8182C22 | 22±1.10 | 19 | 76 | 66±2.0 | 30 | 79.2 | 11.88 |
10CR8182C26 | 26±1.30 | 21.2 | 84.8 | 78±2.3 | 35 | 96.2 | 16.18 |
10CR8182C32 | 32±1.60 | 31.5 | 126 | 96±2.9 | 43 | 118 | 24.1 |
