CLGR® G80 Container Lifting Clevis Link

Name: CLGR® G80 Container Lifting Clevis Link
Brand: CLGR®

CLGR® G80 Container Lifting Clevis Link, also known as container fitting.

The G80 Container Lifting Clevis Link is forged from high-alloy steel, undergoes a quenching and tempering process, and features a powder-coated surface finish. It is designed for use with web slings and G80 chains in accordance with EN818-2 standards.

Each clevis link is individually proof-tested at 2.5 times its Working Load Limit (WLL) and undergoes fatigue testing at 1.5 times its WLL for 20,000 cycles. Additionally, 100% magnaflux crack detection is performed, and all load pins are inspected and tested.

To Get A Quote >

Overview of CLGR® G80 Container Lifting Clevis Link

Brand	CLGR®
Material	Superior Alloy steel
Processing	Drop Forged / Quenched and Tempered
Finish	Powder Coated
Size	7/8mm, 10mm, 13mm, 16mm
Safety Factor	4:1
Tips	Suitable for web sling and G80 chain EN818-2.

Specifications of CLGR® G80 Container Lifting Clevis Link

Part No.	WEIGHT (KG)	WLL(T)		B.L(T)		A±0.3	B±1	C±0.3	D±0.3	E±1	F±0.5	M±0.3	N±1	G±0.1	L±0.5
		G80	G100	G80	G100
LG-CSHC-13	1.23	5.3	6.7	21.2	26.8	21	90	50	21.5	55	15	35	93	16.2	170

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.

CLGR® News & Blogs

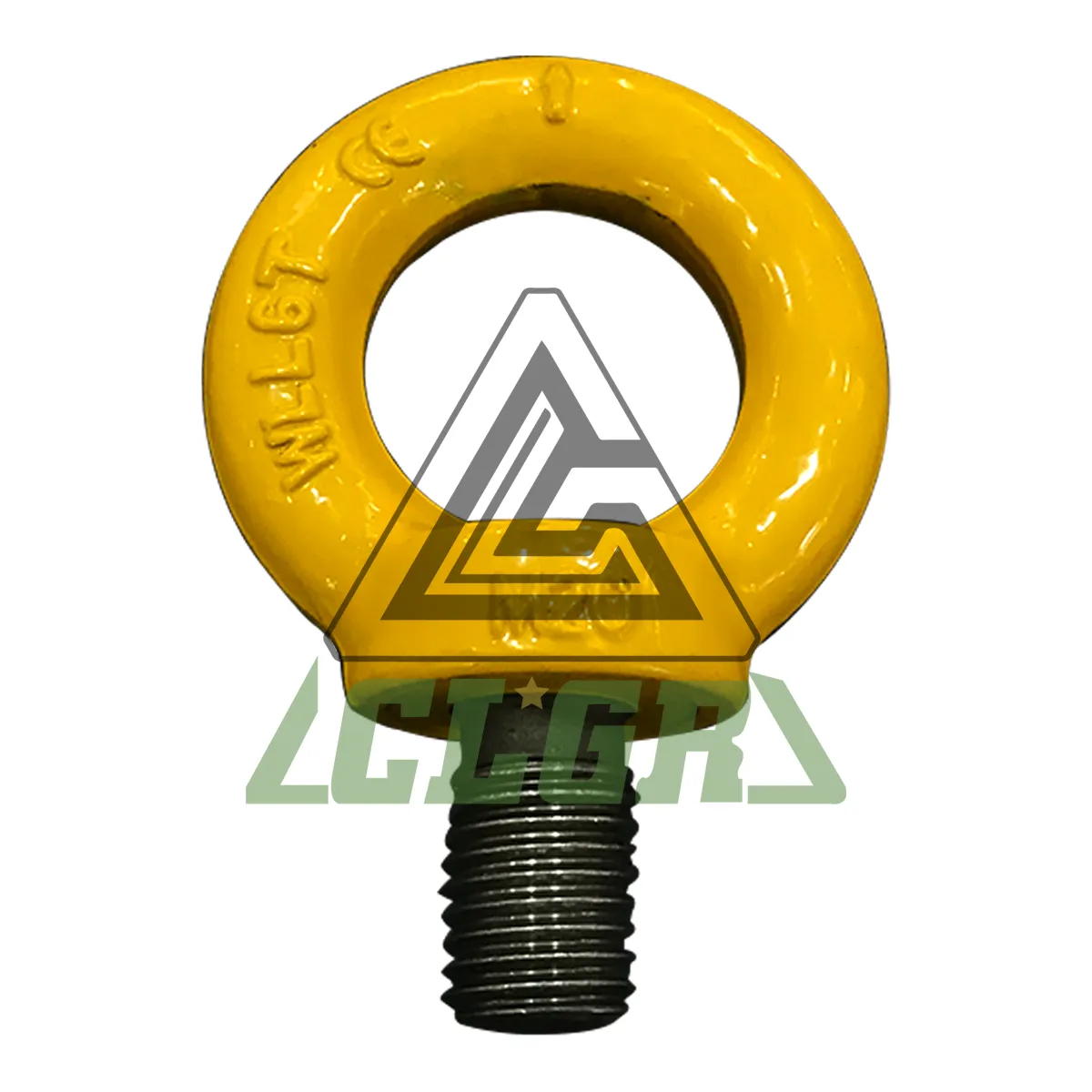

Eye Bolt Load Capacity: Complete Guide to Working Load Limits and Lifting Selection
