CLGR® Swivel Eye Double Sheave Block Pulley

Name: CLGR® Swivel Eye Double Sheave Block Pulley
Brand: CLGR®

CLGR® Swivel Eye Double Sheave Block Pulley, also known as Swivel Eye Double Wheel Wire Rope Pulley, Swivel Eye Flat Double Sheave Block, and Double Sheave Pulley With Eye.

This quick-release swivel eye pulley block rotates with the load to reduce twisting. It works with wire, fiber, or nylon rope and has zinc plating for corrosion resistance.

Ideal for:

Athletic equipment (batting cages, volleyball stands)

Marine uses (boat lifts, watercraft, rigging, docks)

Commercial applications (garages, overhead doors, barns, flag poles, safety screens)

Other sizes and styles available upon request.

To Get A Quote >

CLGR® Swivel Eye Double Sheave Block Pulley China Manufacturer

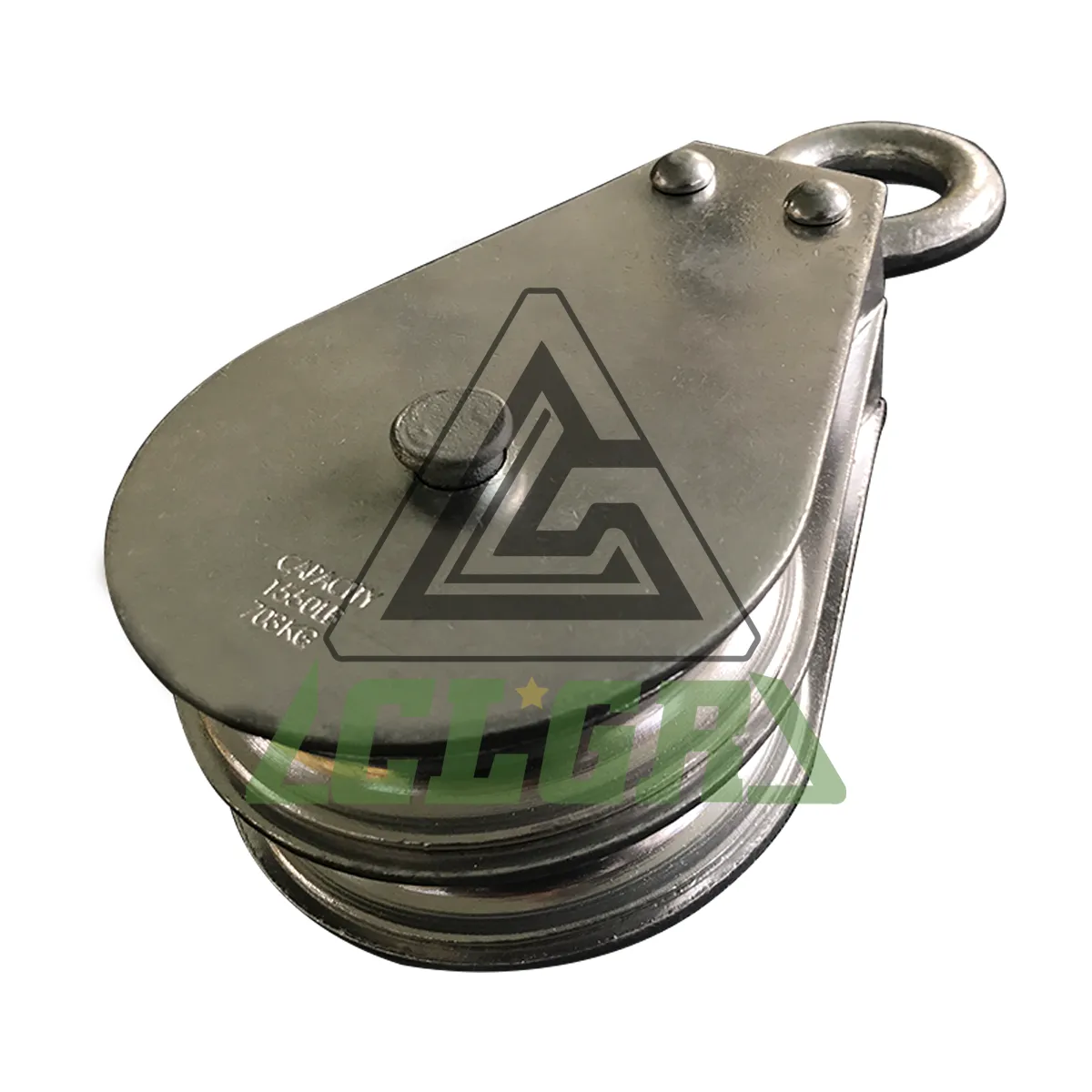

CLGR® Swivel Eye Double Sheave Block Pulley China Supplier

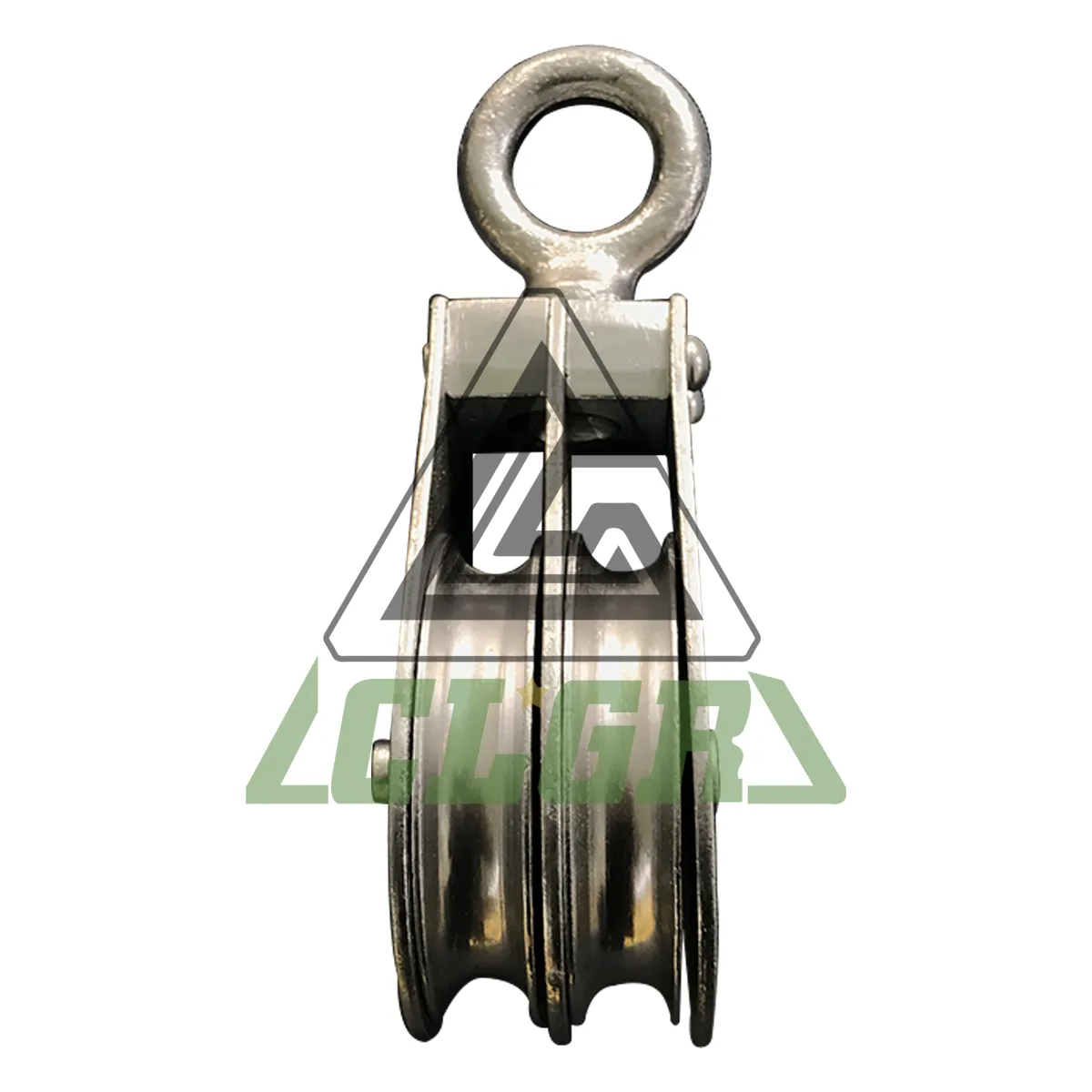

CLGR® Swivel Eye Double Sheave Block Pulley

Overview of CLGR® Swivel Eye Double Sheave Block Pulley

Brand	China CLGR®
Sheave	Double Sheave Block
Material	Stainless Steel
Craft	Machining/Stamping/Forging/Hot Dipped Galvanized
Size	1½”, 2″, 2½”, 3″,3½”, 4″, 5″

Specifications of CLGR® Swivel Eye Double Sheave Block Pulley

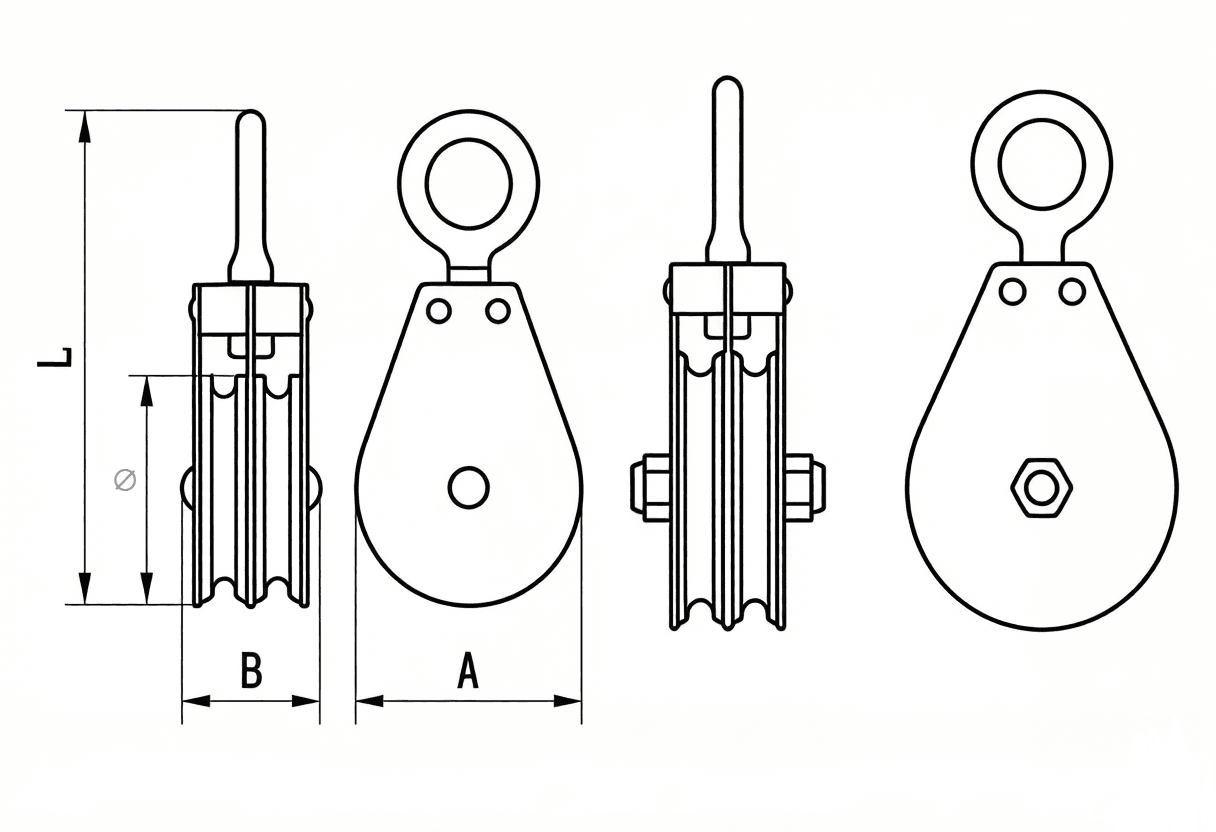

Drawing of CLGR® Swivel Eye Double Sheave Block Pulley

Part No.	Size	SWL/LBS	Diam	∅	L	A	B	Weight(KG)
CRSEFDSB-01	1½”	525	3/16″	38	98.5	41	34.5	0.46
CRSEFDSB-02	2″	600	3/16″	50	115	54	34.5	0.68
CRSEFDSB-03	2½”	685	1/4″	63.5	140	67	36	0.96
CRSEFDSB-04	3″	800	1/4″	75	156	80	57	1.2
CRSEFDSB-05	3½”	1550	5/16″	88	198.5	95	66	2.3
CRSEFDSB-06	4″	1700	3/8″	100	213.5	108	71	2.9
CRSEFDSB-07	5″	1850	3/8″	125	240	134	81	4.2

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
