CLGR® JIS Wood Pulley Single Sheave With Hook

Name: CLGR® JIS Wood Pulley Single Sheave With Hook
Brand: CLGR®

CLGR® JIS Wood Pulley Single Sheave With Hook, also known as JIS Wooden Pulley Block with Hook.

The JIS Wood Pulley features wood shells and adopts a hook fitting type, with forged fittings for enhanced strength.

It is available with bronze self-lubricating bushings to ensure smooth operation, and its metal parts are galvanized to provide reliable corrosion resistance.

To Get A Quote >

Overview of CLGR® JIS Wood Pulley Single Sheave With Hook

Brand	China CLGR®
Material	Wooden body and steel wheel
Size	3″, 4″, 5″, 6″, 7″, 8″, 9″, 10″, 11″, 12″
Surface treatment	painted or galvanized

Specification of CLGR® JIS Wood Pulley Single Sheave With Hook

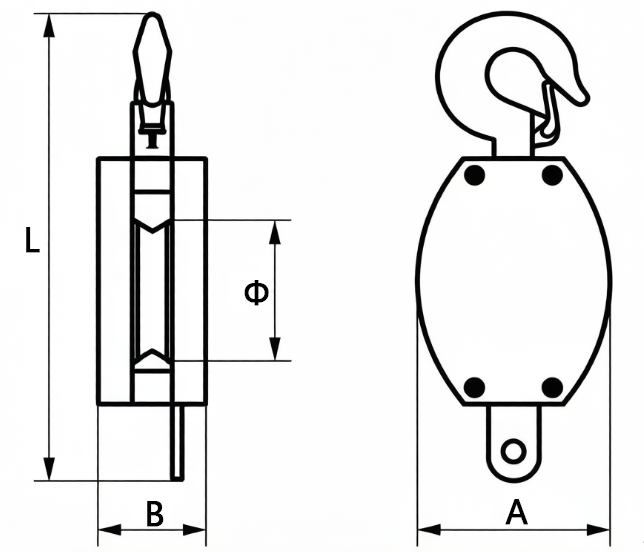

Drawing of CLGR® JIS Wood Pulley Single Sheave With Hook

Part No.	Size	SWL/LBS	Diam	∅	L	A	B	Weight(KG)
CRWPSSH-3	3″	500	6mm	45	235	52.5	44.5	0.45
CRWPSSH-4	4″	1000	9mm	57	255	78	51	0.8
CRWPSSH-5	5″	1200	12mm	76	302	98	57	1.7
CRWPSSH-6	6″	1800	14mm	90	352	114	72	2.45
CRWPSSH-7	7″	2000	16mm	121	378	130	77	3
CRWPSSH-8	8″	2800	18mm	121	407	145	83	3.9
CRWPSSH-9	9″	3000	20mm	136	461	162	88	6
CRWPSSH-10	10″	4000	22mm	158	504	182	99	6.6
CRWPSSH-11	11″	4000	22mm	178	524	182	99	9
CRWPSSH-12	12″	5000	24mm	196	701	208	110	11.5
