CLGR® Stainless Steel Square Eye Plate

Name: CLGR® Stainless Steel Square Eye Plate
Brand: CLGR®

CLGR® Stainless Steel Square Eye Plate, also known as Stainless Steel Square Pad Eye Plate, Diamond Eye Plate, or Rectangular Eye Plate.

Made from high quality AISI 304 or AISI306 stainless steel for maximum corrosion resistance and durability, the Stainless Steel Square Eye Plate features 4 countersunk screw holes for a neat finish.

Eye Plates are welded light duty plates which easily fasten to any flat timber or steel post, wall or panel for a secure fixing point.

Ideal for use with heavy load applications, for maximum load distribution use with our heavy duty square back plate.

To Get A Quote >

Overview of CLGR® Stainless Steel Square Eye Plate

Brand	CLGR®
Material	Stainless steel (AISI 304 / AISI316)
Processing	Stamping / Machining / Welding
Finish	Highly-Polishing
Country of Origin	China

Specification of CLGR® Stainless Steel Square Eye Plate

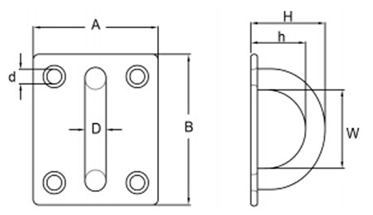

drawing-of-clgr®-stainless-steel-square-eye-plate-china-supplier

Part No.	D	A	B	H	h	w	d	WT
Part No.	mm							kgs
CR-SS-SEP-05	5	30	35	20	12	13	4.5	0.025
CR-SS-SEP-06	6	35	40	26	17	17	4.5	0.041
CR-SS-SEP-08	8	40	50	32	21	21	6.2	0.068
CR-SS-SEP-10	10	48	60	39	26	26	6.2	0.11

Bulk Photos of Stainless Steel Square Eye Plate

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
