CLGR® Stainless Steel Oblong Pad Eye Plate with Ring

Name: CLGR® Stainless Steel Oblong Pad Eye Plate with Ring
Brand: CLGR®

Our reliable pad eye plates with rings feature a stamped and welded construction and are made with marine grade AISI 304 or AlSI 316 stainless steel for maximum corrosion resistance and durability.

They have a captive ring securely fastened to the plate, that's attachable with 2 countersunk holes.

Mainly used in marine settings, they can also be used for gardening, architectural and rigging purposes.

CLGR offer 5mm, 6mm, 8mm and 9mm sizes, and other requirements can be customized.

To Get A Quote >

Overview of CLGR® Stainless Steel Oblong Pad Eye Plate with Ring

Brand	CLGR®
Material	Stainless steel AISI 304 / AISI316
Processing	Stamping / Machining / Welding
Finish	Highly-Polishing
Size	5mm, 6mm, 8mm, 9mm
Country of Origin	China

Specifications of CLGR® Stainless Steel Oblong Pad Eye Plate with Ring

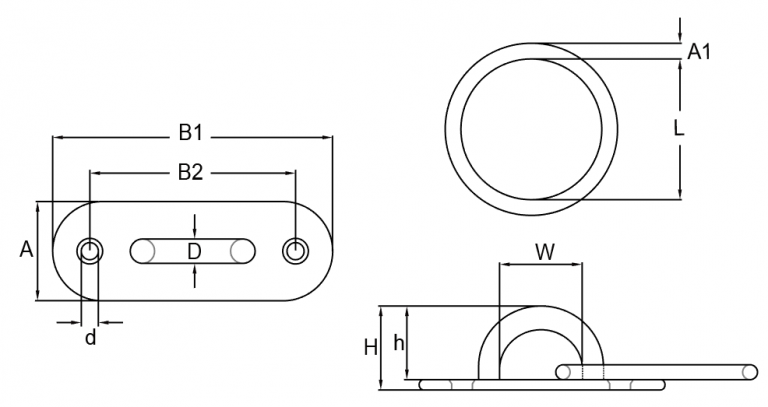

drawing-stainless-steel-oblong-pad-eye-plate-with-ring-lgrig.png drawing of CLGR® Stainless Steel Oblong Pad Eye Plate with Ring

Part No.	D	B1	B2	H	h	A	d	W	A1	L	WT
Part No.	mm										kgs
CRSSOPER05	5	45	31	20	12	15	4.5	10	5	30	0.035
CRSSOPER06	6	60	43	26	17	20	4.5	17	6	35	0.063
CRSSOPER08	8	80	56	32	21	26	6.2	21	8	45	0.136
CRSSOPER09	9	100	70	39	27	36	6.2	26	10	50	0.217
