CLGR® Stainless Steel Oblong Pad Eye Plate

Name: CLGR® Stainless Steel Oblong Pad Eye Plate
Brand: CLGR®

CLGR® Stainless Steel Oblong Pad Eye Plate, also known as Stainless Steel Rectangle Pad Eye, and Oval Pad Eye SS.

Made from high quality AISI 304 or AISI306 stainless steel for maximum corrosion resistance and durability, the Stainless Steel Oblong Pad Eye Plate features 2 countersunk screw holes for a neat finish.

Eye Plates are welded plates which easily fasten to any flat timber or steel post, wall or panel for a secure fixing point.

Eye Plates are versatile attachment points for shade sails, marine rigging, and construction applications.

Oblong pad eye stainless steel, use with Turnbuckles, D shackle and spring hooks to connect to your sunshade sails.

Available sizes: 5mm, 6mm, 8mm, 9mm. Larger sizes available on request.

To Get A Quote >

CLGR® Stainless Steel Oblong Pad Eye Plate China Supplier

Overview of CLGR® Stainless Steel Oblong Pad Eye Plate

Brand	CLGR®
Material	Stainless steel (AISI 304 / AISI316)
Processing	Stamping / Machining / Welding
Finish	Highly-Polishing
Size	5mm, 6mm, 8mm, 9mm
Country of Origin	China

Specifications of CLGR® Stainless Steel Oblong Pad Eye Plate

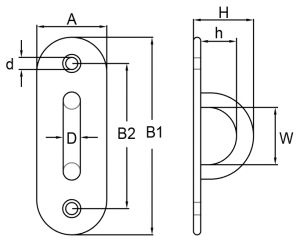

drawing-of-clgr®-stainless-steel-oblong-pad-eye-plate

Part No.	D	B1	B2	H	h	A	d	W	WT
Part No.	mm								kgs
CRSSOPE05	5	45	31	20	12	15	4.5	10	0.019
CRSSOPE06	6	60	43	26	17	20	4.5	17	0.035
CRSSOPE08	8	80	56	32	21	26	6.2	21	0.067
CRSSOPE09	9	100	70	39	27	36	6.2	26	0.109
