CLGR® Stainless Steel Square Pad Eye with Ring

Name: CLGR® Stainless Steel Square Pad Eye with Ring
Brand: CLGR®

CLGR® Stainless Steel Square Pad Eye with Ring, also known as Square Pad Eye Ring, Square Eye Plate W/Ring, and Square Ring Deck Plate.

Our reliable pad eye plates with rings feature a stamped and welded construction and are made with marine grade AISI 304 or AlSI 316 stainless steel for maximum corrosion resistance and durability.

They have a captive ring securely fastened to the plate, that's attachable with 4 countersunk holes.

CLGR offer 5mm,6mm, 8mm,and 10mm sizes, and other requirements can be customized.

Please refer to the table below for detailed dimensions per size.

To Get A Quote >

Overview of CLGR® Stainless Steel Square Pad Eye with Ring

Brand	CLGR®
Material	Stainless steel (AISI 304 / AISI316)
Processing	Stamping / Machining / Welding
Finish	Highly-Polishing
Country of Origin	China

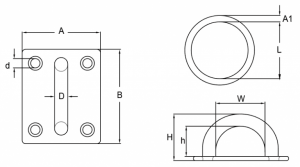

Specification of CLGR® Stainless Steel Square Pad Eye with Ring


Part No.	D	A	B	H	h	w	d	A1	L	WT
Part No.	mm									kg
CRSSSRP05	5	30	35	20	12	13	4.5	5	30	0.041
CRSSSRP06	6	35	40	26	17	17	4.5	6	35	0.069
CRSSSRP08	8	40	50	32	21	21	6.2	8	45	0.137
CRSSSRP10	10	48	660	39	26	26	6.2	10	50	0.218
