CLGR® Snatch Pulley Block with Hook Single Wheel

Name: CLGR® Snatch Pulley Block with Hook Single Wheel
Brand: CLGR®

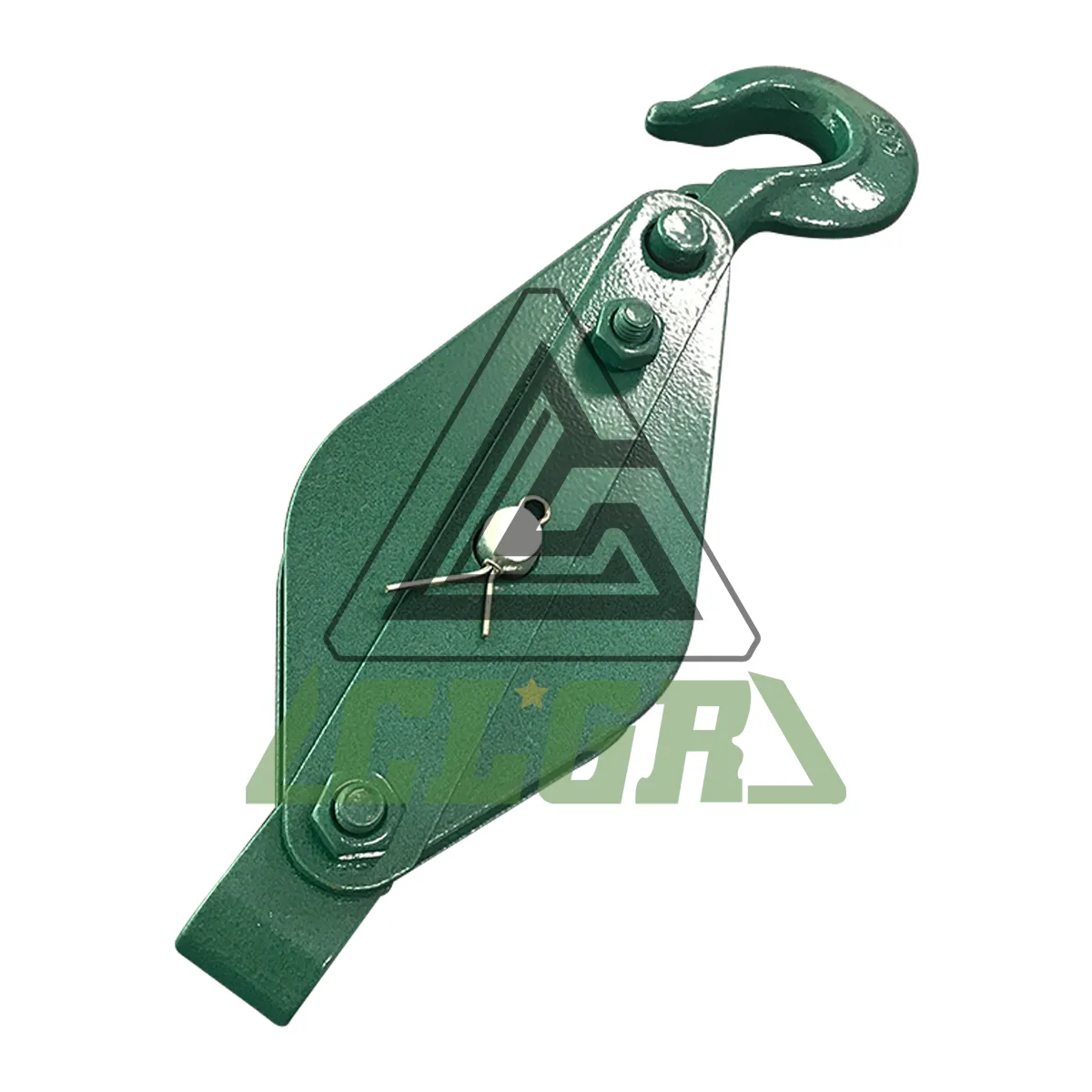

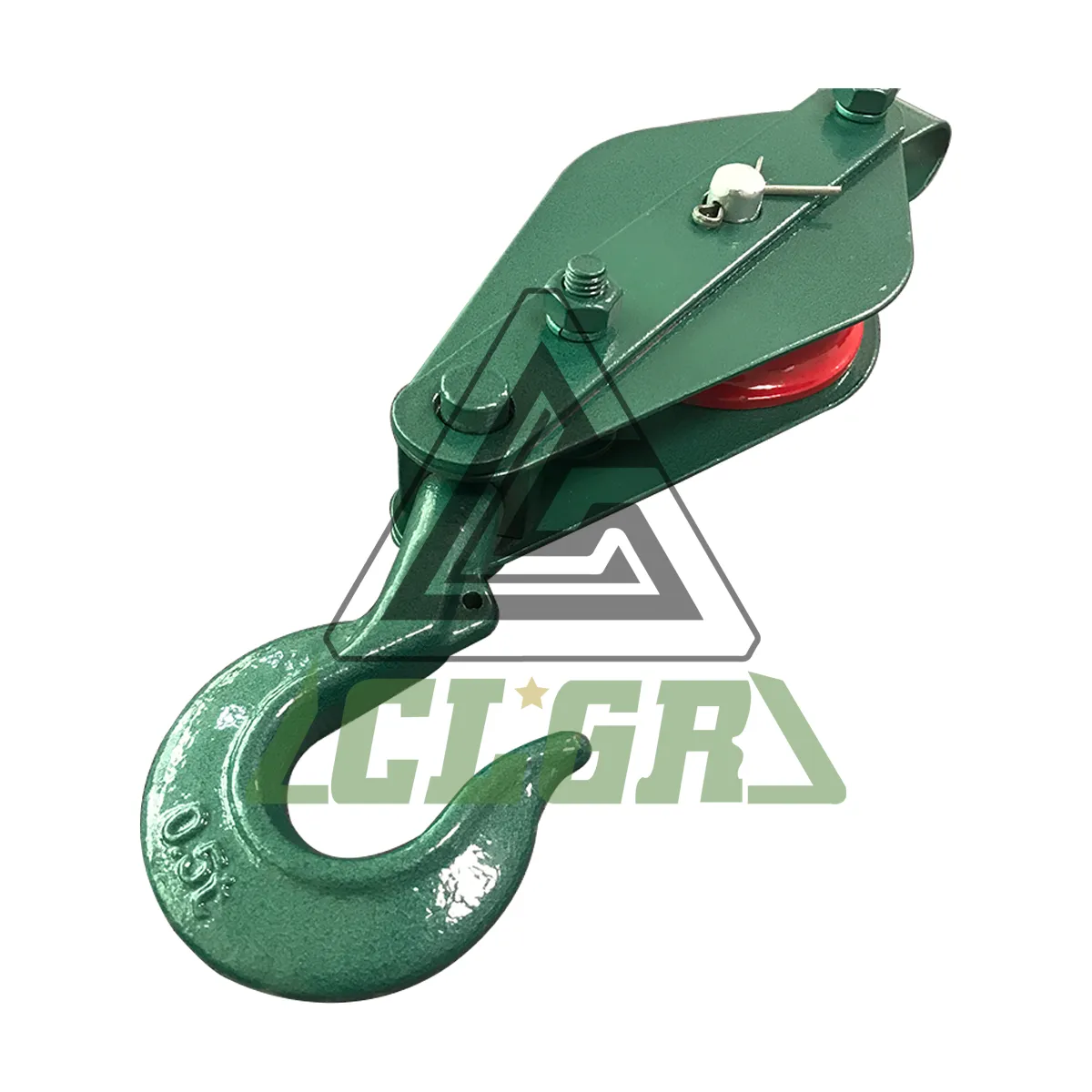

CLGR® Snatch Pulley Block Single Wheel, also known as Pulley Block Single Wheel, Snatch Block With Eye Single Sheave, Single Wheel Pulley with Hook, and Polea Verde con Gancho una Rueda.

This Pulley Block Single Wheel features a 360-degree rotation design that effectively prevents rope tangling for smooth and convenient operation.

Constructed with a galvanized finish, it offers good surface appearance along with excellent wear and scratch resistance. This unit is designed for reliable motion transmission and load lifting.

To Get A Quote >

CLGR® Snatch Pulley Block with Hook Single Wheel

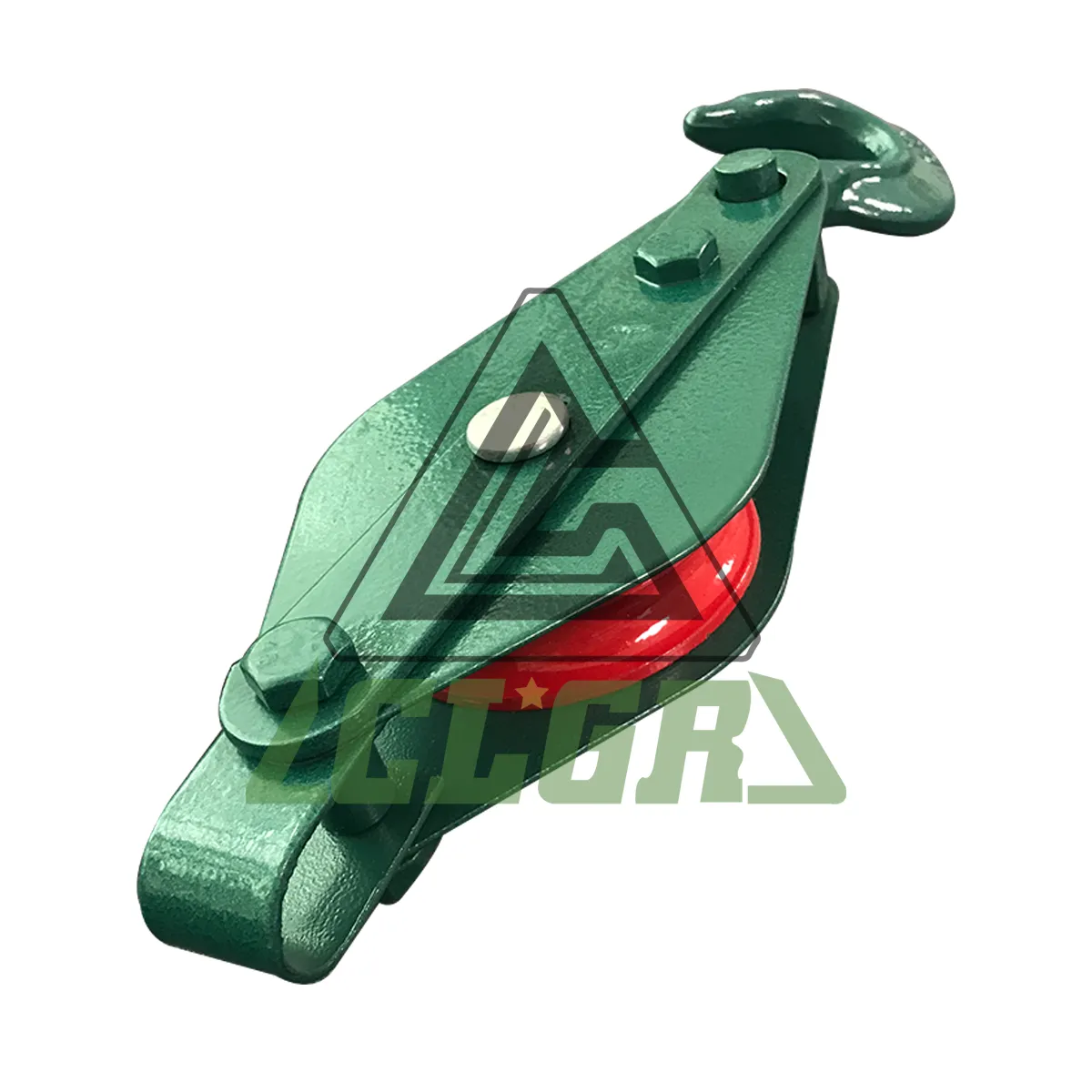

CLGR® Snatch Pulley Block with Hook Single Wheel China

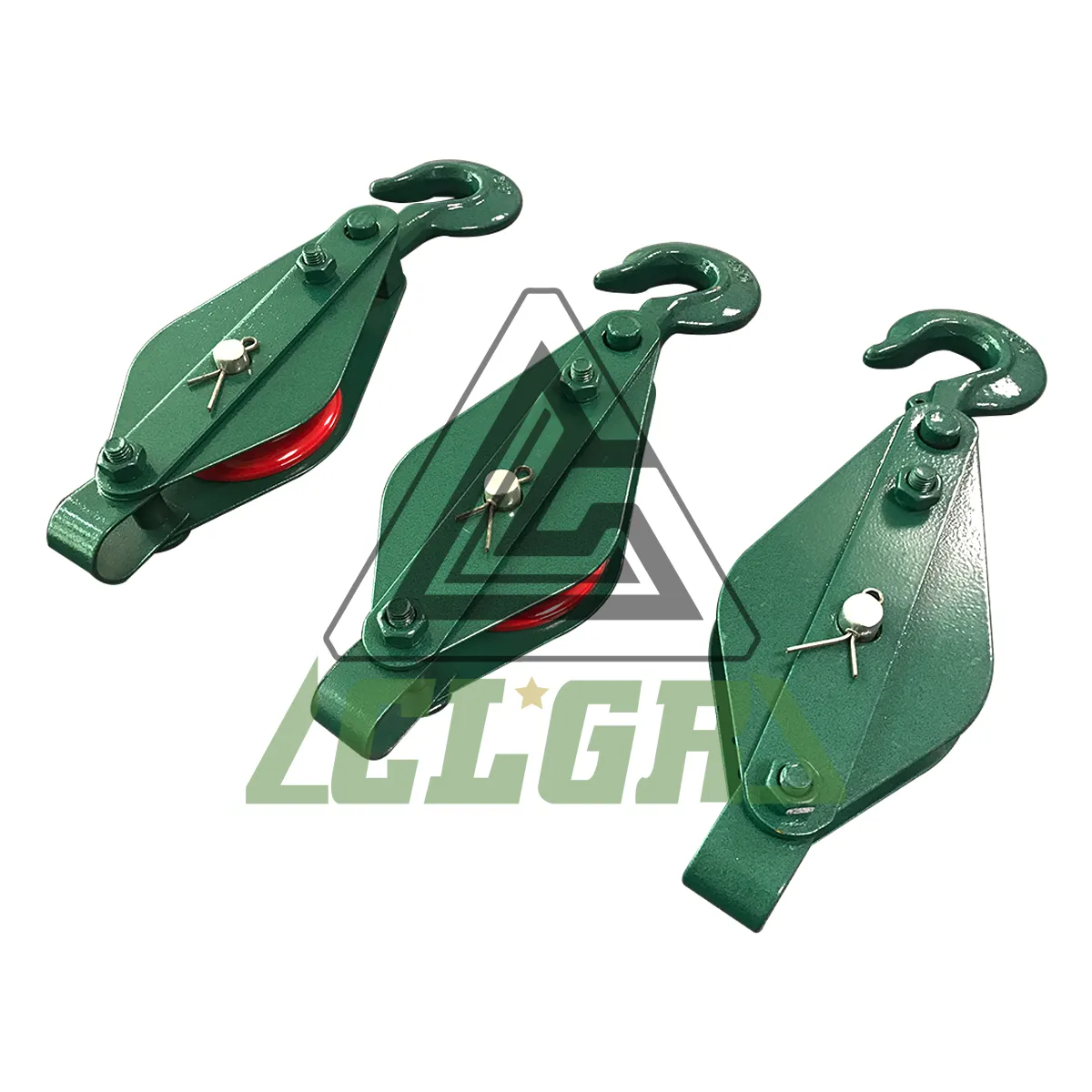

Snatch Pulley Block with Hook Single Wheel China Supplier

 

Overview of CLGR® Snatch Pulley Block with Hook Single Wheel

Brand	CLGR®
Material	Carbon Steel
Surface Finished	Color Painted
Size	2″, 3″, 4″, 5″, 6″, 7″, 8″, 10″, 12″
Origin	China

Specifications of CLGR® Snatch Pulley Block with Hook Single Wheel

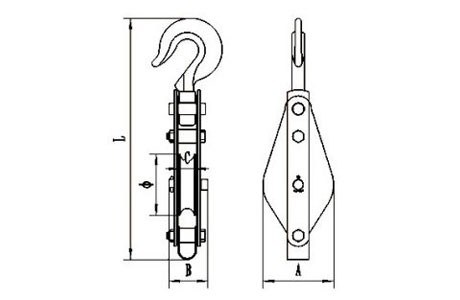

drawing-of-clgr®-snatch-pulley-block-with-hook-single-wheel-china-supplier

Part No.	Size	SWL/Ton	Diam(mm)	∅	L	A	B	C	Weight(KG)
CRPBSSH-A	2″	0.25	6	49	217	58	32	11	0.55
CRPBSSH-B	3″	0.5	8	70.5	277	81	44.5	13	1.15
CRPBSSH-C	4″	1	10	97	325	112	51	16	2
CRPBSSH-D	5″	1.5	13	125	400	140	55	17	3.2
CRPBSSH-E	6″	2	16	146	450	168	75	22	4.9
CRPBSSH-F	7″	3	19	173	505	186	81.5	25	7.8
CRPBSSH-G	8″	4	22	200	535	212	81.5	26	10
CRPBSSH-H	10″	5	25	250	611	276	85	28	15
CRPBSSH-L	12″	6	28	300	661	326	85	28	21
