CLGR® JIS Ship Wooden Block With Link Triple Sheave

Name: CLGR® JIS Ship Wooden Block With Link Triple Sheave
Brand: CLGR®

CLGR® JIS Ship Wooden Block With Link Triple Sheave, also known as JIS Wood Pulley With Link.

Crafted from high quality wood and fitted with a hot-dip galvanized steel link, this wooden block with link minimizes line chafing while providing a smooth 180° rope redirection.

This JIS Wood Pulley With Link is a critical component for traditional and modern sailing vessels, engineered specifically for lifting sails, adjusting rigging, and mast control.

It is designed to work in conjunction with ropes, providing mechanical advantage and changing the direction of force. This allows crew members to handle heavy loads with less effort.

To Get A Quote >

Overview of CLGR® JIS Ship Wooden Block With Link Triple Sheave

Brand	China CLGR®
Material	Carbon steel/Wood
Craft	Machining/Stamping/Forging/Hot Dipped Galvanized
Size	180inch, 200inch, 220inch, 240inch
Sheave	Triple Sheave

Specification of CLGR® JIS Ship Wooden Block With Link Triple Sheave

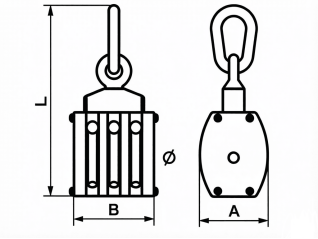

Drawing of CLGR® JIS Ship Wooden Block With Link Triple Sheave

Size/in	SWL/TON	Diam	∅	L	A	B	Weight(KG)
200	1.8	20mm	130	411	160	191	12.25
220	2.1	22mm	143	444	176	211	16.24
240	2.5	24mm	156	488	192	225	20.65

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
