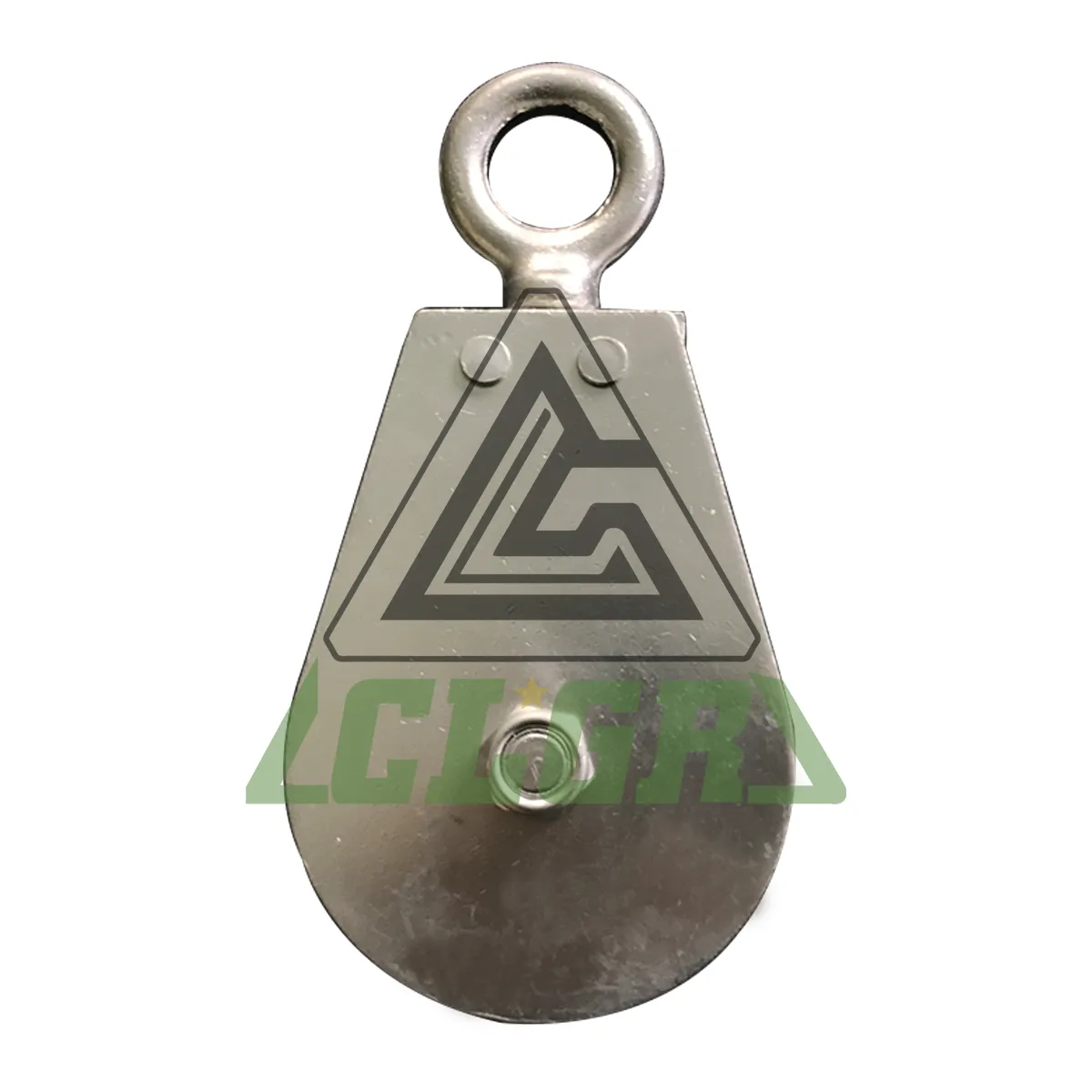

CLGR® Swivel Eye Single Sheave Block Pulley

Name: CLGR® Swivel Eye Single Sheave Block Pulley
Brand: CLGR®

CLGR® Swivel Eye Single Sheave Block Pulley, also known as Swivel Eye Single Wheel Wire Rope Pulley, Swivel Eye Flat Single Sheave Block, and Single Sheave Pulley With Eye.

This quick-release swivel eye pulley block rotates dynamically as the load moves. It swivels to maintain alignment with the attachment point. Compatible with wire rope, fibrous rope, or nylon rope. Zinc plated for corrosion resistance.

Ideal for:

Athletic equipment (batting cages, volleyball stands)

Marine uses (boat lifts, watercraft, rigging, docks)

Commercial applications (garages, overhead doors, barns, flag poles, safety screens)

Other sizes and styles available upon request

To Get A Quote >

CLGR® Swivel Eye Single Sheave Block Pulley

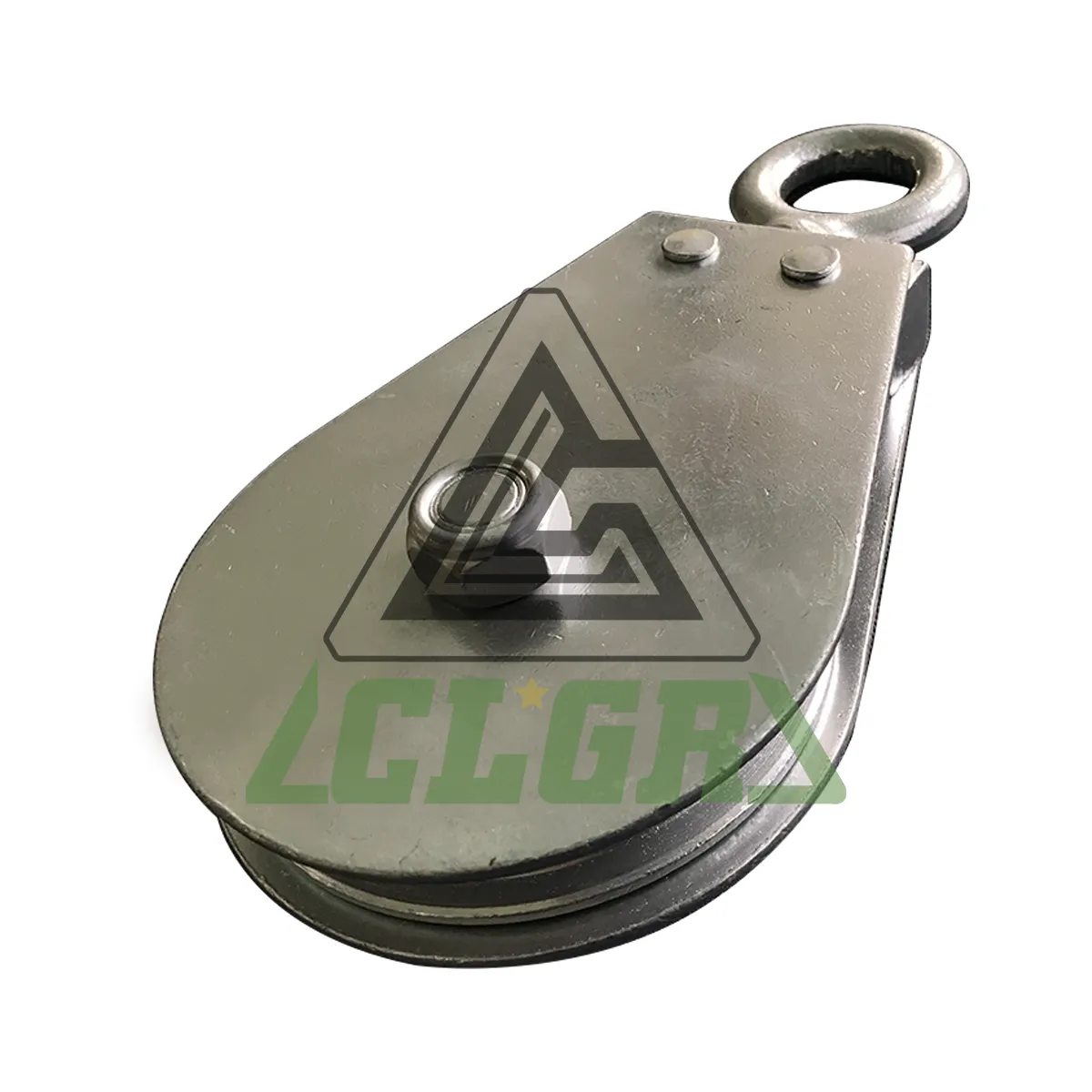

CLGR® Swivel Eye Single Sheave Block Pulley China Supplier

Overview of CLGR® Swivel Eye Single Sheave Block Pulley

Brand	China CLGR®
Sheave	Single Sheave Block
Material	Stainless Steel
Craft	Machining/Stamping/Forging/Hot Dipped Galvanized
Size	1½'', 2″, 2½”, 3″,3½”, 4″, 5″

Specifications of CLGR® Swivel Eye Single Sheave Block Pulley

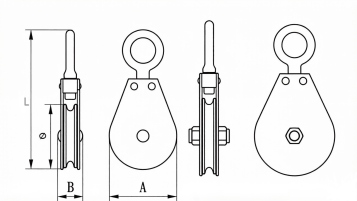

Drawing of CLGR® Swivel Eye Single Sheave Block Pulley

Part No.	Size	SWL/LBS	Diam	∅	L	A	B	Weight(KG)
CRSESSB-11	1½”	525	3/16″	38	98.5	41	19	0.2
CRSESSB-12	2″	600	3/16″	50	115	54	19	0.35
CRSESSB-13	2½”	685	1/4″	63.5	140	67	20	0.5
CRSESSB-14	3″	800	1/4″	75	156	80	41	0.55
CRSESSB-15	3½”	1550	5/16″	88	198.5	95	43	1.45
CRSESSB-16	4″	1700	3/8″	100	213.5	108	48	1.85
CRSESSB-17	5″	1850	3/8″	125	240	134	58	2.7
