CLGR® Regular Link Proof Coil Chain Australian Standard

Name: CLGR® Regular Link Proof Coil Chain Australian Standard
Brand: CLGR®

CLGR® Regular Link Proof Coil Chain Australian Standard is an economical and practical general-purpose industrial chain. It is a reliable, cost-effective choice for non-critical applications such as securing, towing, or binding where extremely high strength is not required.

Proof Coil Chain is suitable for most applications requiring a light duty steel chain, but not for industrial lifting purposes.

To Get A Quote >

Overview of Regular Link Proof Coil Chain Australian Standard

Brand	CLGR®
Technical Notes	Chain Conform to Australian Standard
Material	Low grade carbon steel
Processing	Welded
Finish	Hot Dipped Galvanised, Electro Galvanised and Self Colored
Size	3mm,4mm,5mm,6mm,8mm,10mm,12mm,13mm,16mm,20mm,24mm
Tips	Proof tested to at least twice the maximum static load indicated.

Specifications of Regular Link Proof Coil Chain Australian Standard

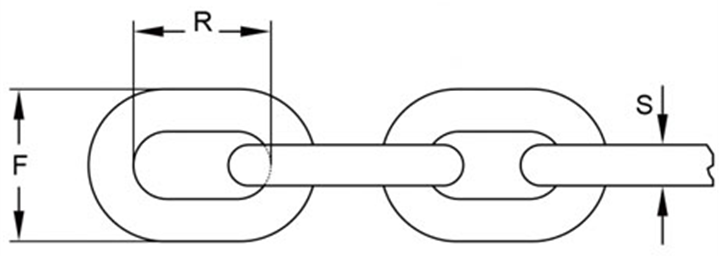

Part No.	CHAIN SIZE	WORKING LOAD	LINK DIMENSION			LINKS PER M	LENGTH PER 100KG
	CHAIN SIZE	WORKING LOAD	S	R	F	LINKS PER M	B.F.	H.D.G.
	MM	MT	MM	MM	MM	PC	M	M
CRCASR03	3	0.06	3.15	15.7	13.1	63.8	511	498
CRCASR04	4	0.11	4	18.6	16	53.9	320	305
CRCASR05	5	0.19	5	22	19.4	45.4	203	193
CRCASR06	6	0.32	6.3	26.1	23.5	37.8	129	120
CRCASR08	8	0.53	8	32.2	29.5	31	77.8	74.1
CRCASR10	10	0.83	10	39.1	36.2	25	48.5	47.1
CRCASR12	12	1.35	12	46	44	21.7	34	33.3
CRCASR13	13	1.5	13	49.1	46.1	20.3	29.7	27.7
CRCASR16	16	2.31	16	59.6	56.5	16.8	20.2	18.2
CRCASR20	20	3.67	20	73.3	70	13.6	12.3	11.6
CRCASR24	24	5.31	24	87	83.6	11.5	8.5	8.04

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
